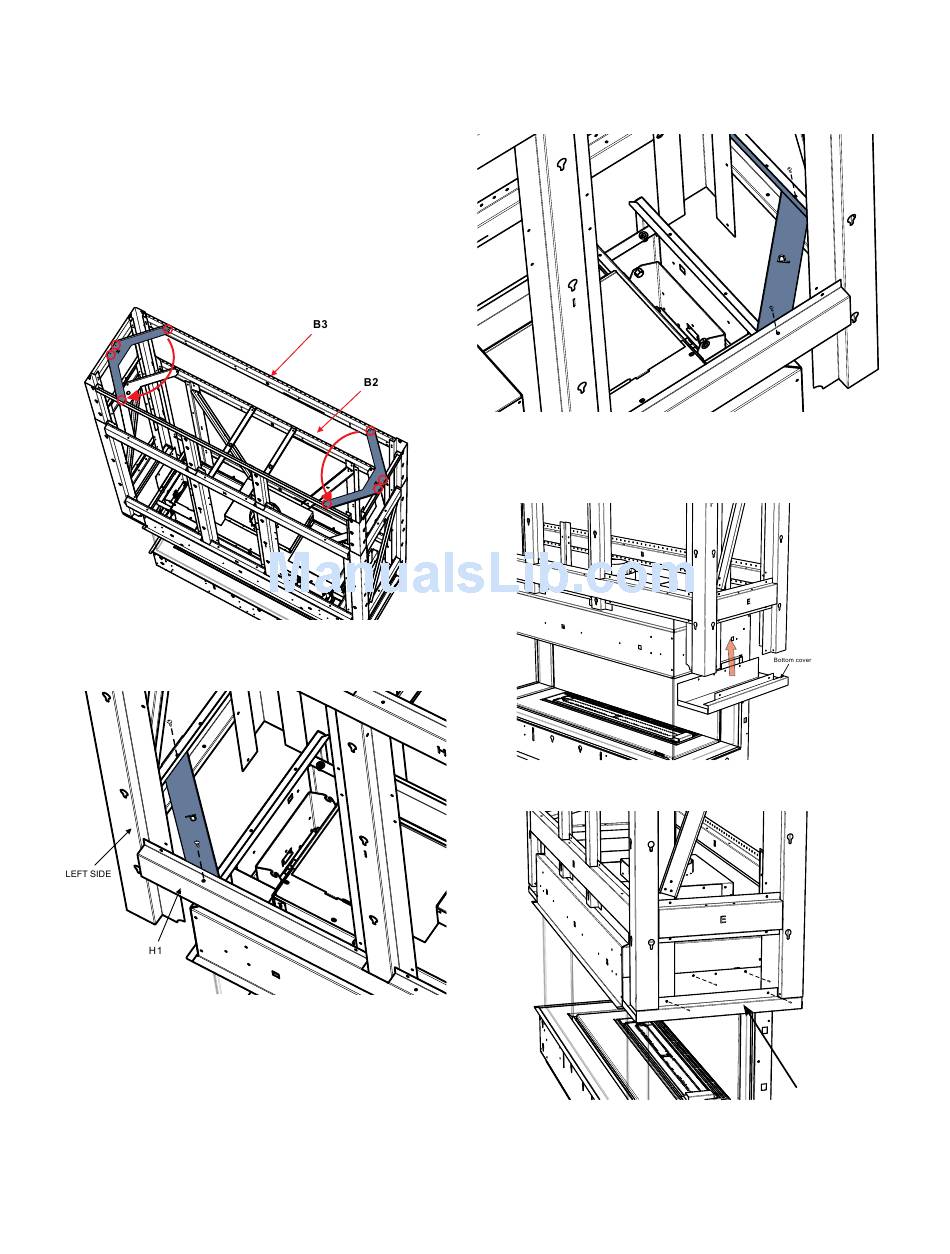

18. Swing Part N (x2) and Part O (x2) out from B2 + B3.
19. Part N (L) will be secured to B3 - LEFT side assembly and Part L
with 4 screws in total.
20. Part N (R) will be secured to B3 - RIGHT side assembly and Part L
with 4 screws in total.
21. Part O (L) will be secured to B2- LEFT side assembly and Part H
(top) with 4 screws in total.
22. Part O (R) will be secured to B2- RIGHT side assembly and Part H
(top) with 4 screws in total.
Swing Parts N + O out and attach
23. Attach corner brace Part P to the LEFT side and lower Part H with
2 screws from the top.
Attach Part P (Left) to the LEFT SIDE + H1
24. Attach the opposite corner brace Part P to the RIGHT side and lower
Part H with 2 screws from the top.
Attach Part P (Right) to the RIGHT SIDE + H1
25. Extended framing kit only: Install the left and right bottom cover.
The left and right bottom covers are installed with 4 screws each.
Extended framing kit bottom cover install
installation
Bottom cover
