Optional compact wood panel kit Installation CB40E
The compact panel kit is used in conjunction with the compact framing kit.
Install the compact framing kit before installing the panels.
Note: The minimum ceiling height must be 8 feet for the compact framing kit
and compact wood panel kit to fi t this particular application.
The compact framing kit when assembled must be set to a predetermined
overall height of 93 inches from fi nished fl oor to the top of the framing kit.

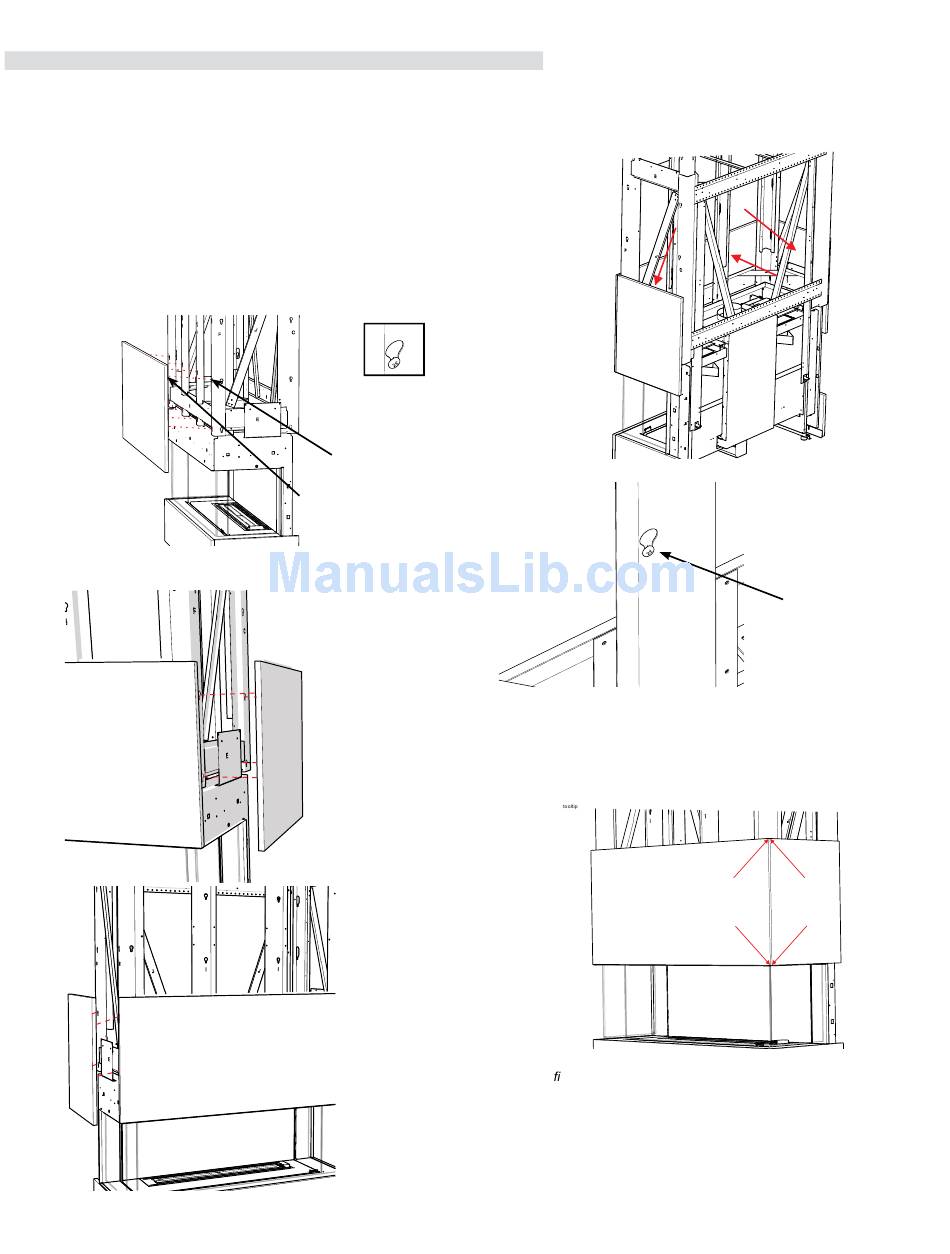

1. Install the front lower panel fi rst, line up the screws on the back of the panel
with the keyholes on the framing kit.
2. Hang the panel by matching the screws at the back of the panel to the
corresponding keyholes and lower the panel until the screws rest at the
bottom of each keyhole.
3. Install the left and right lower side panels using the same procedure as
the front panel.
Close up of screw in
keyhole
Keyhole on
framing unit
Screw at back of panel
4. Reach inside the framing kit and tighten the screws on the panels to eliminate
any movement or shifting of the panels—once installed.
NOTE: After installation, ensure all three lower panels are at the same level
at the bottom. Also ensure that the side panels are sitting exactly at 90º and
not tilting inward or outward as the correct installation of the middle and top
panels depends on proper installation of the lower panels. Adjust panels as
needed until side and front panels are level.
Ensure rst row of panels (front + sides) are even with one another
installation
Tighten screws from
inside framing
City Series |
25
