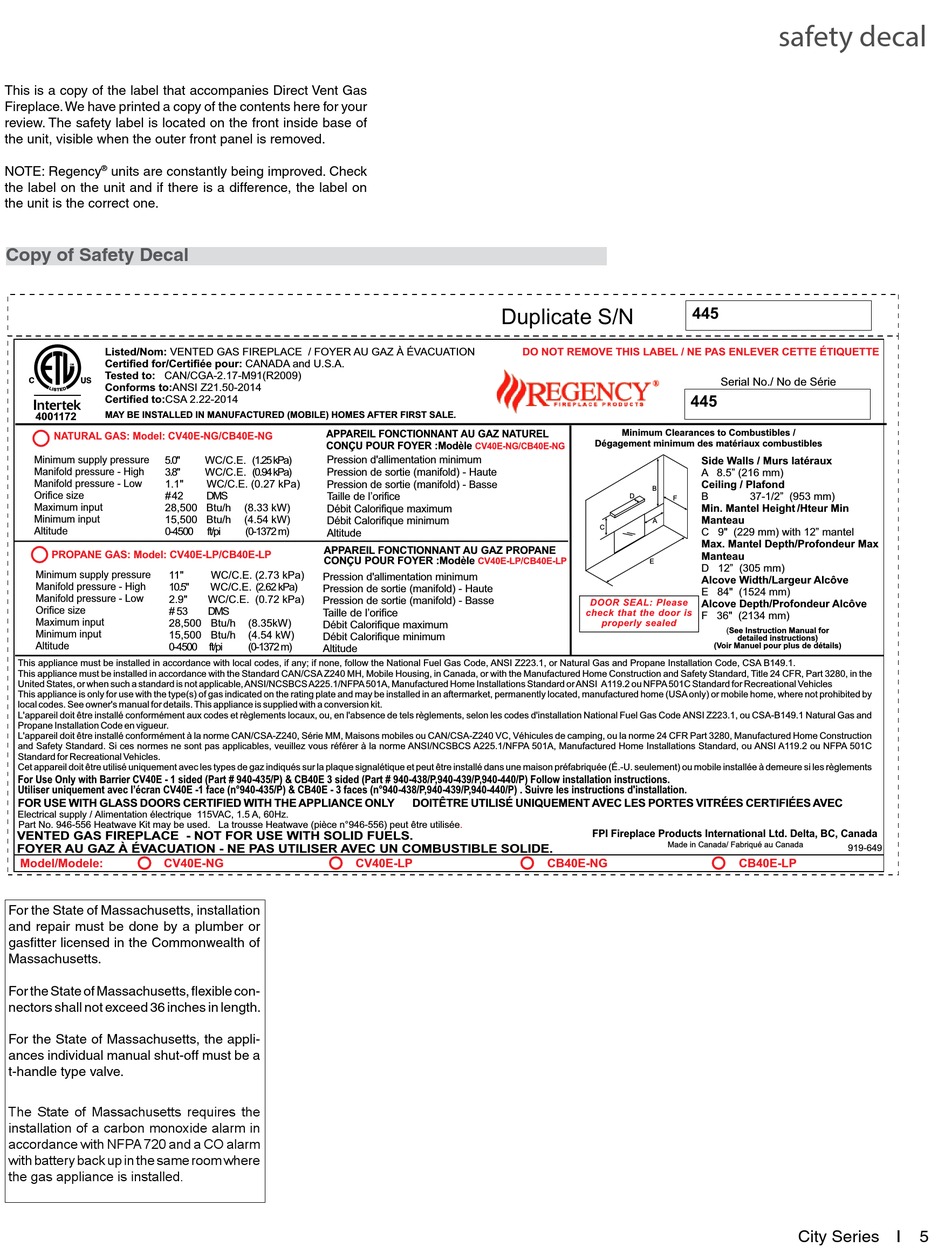

This is a copy of the label that accompanies Direct Vent Gas
Fireplace. We have printed a copy of the contents here for your
review. The safety label is located on the front inside base of
the unit, visible when the outer front panel is removed.
®
NOTE: Regency
units are constantly being improved. Check
the label on the unit and if there is a difference, the label on
the unit is the correct one.
Copy of Safety Decal
Listed/Nom: VENTED GAS FIREPLACE / FOYER AU GAZ À ÉVACUATION
Certified for/Certifi e pour: CANADA and U.S.A.
Tested to: CAN/CGA-2.17-M91(R2009)
Conforms to:
ANSI Z21.50-2014
Certified to:
CSA 2.22-2014
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
4001172
NATURAL GAS: Model: CV40E-NG/CB40E-NG
Minimum supply pressure
5.0"
Manifold pressure - High
3.8"
Manifold pressure - Low
1.1"
Orifice size
# 42
Maximum input
28,500 Btu/h
Minimum input
15,500 Btu/h
Altitude
0-4500
PROPANE GAS: Model: CV40E-LP/CB40E-LP
Minimum supply pressure
11"
Manifold pressure - High
10.5"
Manifold pressure - Low
2.9"
Orifice size
# 53
Maximum input
28,500 Btu/h
Minimum input
15,500 Btu/h
Altitude
0-4500
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the
United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type(s) of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by
local codes. See owner's manual for details. This appliance is supplied with a conversion kit.
L'appareil doit être installé conformément aux codes et règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installation National Fuel Gas Code ANSI Z223.1, ou CSA-B149.1 Natural Gas and
Propane Installation Code en vigueur.
L'appareil doit être installé conformément à la norme CAN/CSA-Z240, Série MM, Maisons mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction
and Safety Standard. Si ces normes ne sont pas applicables, veuillez vous référer à la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C
Standard for Recreational Vehicles.
Cet appareil doit être utilisé uniquement avec les types de gaz indiqués sur la plaque signalétique et peut être installé dans une maison préfabriquée (É.-U. seulement) ou mobile installée à demeure si les règlements
For Use Only with Barrier CV40E - 1 sided (Part # 940-435/P) & CB40E 3 sided (Part # 940-438/P,940-439/P,940-440/P) Follow installation instructions.
Utiliser uniquement avec l'écran CV40E -1 face (n°940-435/P) & CB40E - 3 faces (n°940-438/P,940-439/P,940-440/P) . Suivre les instructions d'installation.
FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY
Electrical supply / Alimentation électrique 115VAC, 1.5 A, 60Hz.
Part No. 946-556 Heatwave Kit may be used. La trousse Heatwave (pièce n°946-556) peut être
VENTED GAS FIREPLACE - NOT FOR USE WITH SOLID FUELS.
FOYER AU GAZ À ÉVACUATION -
Model/Modele:
CV40E-NG
Part #:
919-649 - Side A
For the State of Massachusetts, installation
Colour:
Black on grey except what is indicated as being printed red.
and repair must be done by a plumber or
Size:
(File at 100%) 9.3"w x 5.9"h
gasitter licensed in the Commonwealth of
Material:
Massachusetts.
Mar. 21/16:
Created draft
For the State of Massachusetts, lexible con-
Aug. 10/16:
Updated decal
nectors shall not exceed 36 inches in length.
Aug. 15/16:
Updated decal as per Matt C
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.
é
APPAREIL FONCTIONNANT AU GAZ NATUREL
CONÇU POUR FOYER :Modèle
Pression d'allimentation minimum
WC/C.E. (1.25 kPa)
Pression de sortie (manifold) - Haute
WC/C.E. (0.94 kPa)
Pression de sortie (manifold) - Basse
WC/C.E. (0.27 kPa)
DMS
Taille de l'orifice
(8.33 kW)
D bit Calorifique maximum
é
(4.54 kW)
D bit Calorifique minimum
é
ft/pi
(0-1372 m)
Altitude
APPAREIL FONCTIONNANT AU GAZ PROPANE
CONÇU POUR FOYER :Modèle
WC/C.E. (2.73 kPa)
Pression d'allimentation minimum
WC/C.E. (2.62 kPa)
Pression de sortie (manifold) - Haute
WC/C.E. (0.72 kPa)
Pression de sortie (manifold) - Basse
DMS
Taille de l'orifice
(8.35kW)
D bit Calorifique maximum
é
(4.54 kW)
D bit Calorifique minimum
é
ft/pi
(0-1372 m)
Altitude
NE PAS UTILISER AVEC UN COMBUSTIBLE SOLIDE.
CV40E-LP
Duplicate S/N
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
CV40E-NG/CB40E-NG
CV40E-LP/CB40E-LP
DOOR SEAL: Please
check that the door is
DOITÊTRE UTILISÉ UNIQUEMENT AVEC LES PORTES VITRÉES CERTIFIÉES AVEC
utilisée.
CB40E-NG
445
Serial No./ No de Série
445
Minimum Clearances to Combustibles /
Dégagement minimum des matériaux combustibles
Side Walls / Murs latéraux
A 8.5" (216 mm)
Ceiling / Plafond
B
B
37-1/2" (953 mm)
D
F
Min. Mantel Height /Hteur Min
Manteau
A
C
C 9" (229 mm) with 12" mantel
Max. Mantel Depth/Profondeur Max
Manteau
E
D 12" (305 mm)
Alcove Width/Largeur Alcôve
E 84" (1524 mm)
Alcove Depth/Profondeur Alcôve
F 36" (2134 mm)
properly sealed
(See Instruction Manual for
detailed instructions)
(Voir Manuel pour plus de détails)
FPI Fireplace Products International Ltd. Delta, BC, Canada
Made in Canada/ Fabriqué au Canada
CB40E-LP
safety decal
919-649
