Venting Arrangement for Vertical Terminations

Vertical Venting with straight Vertical venting and or with a max. of two (2) 90

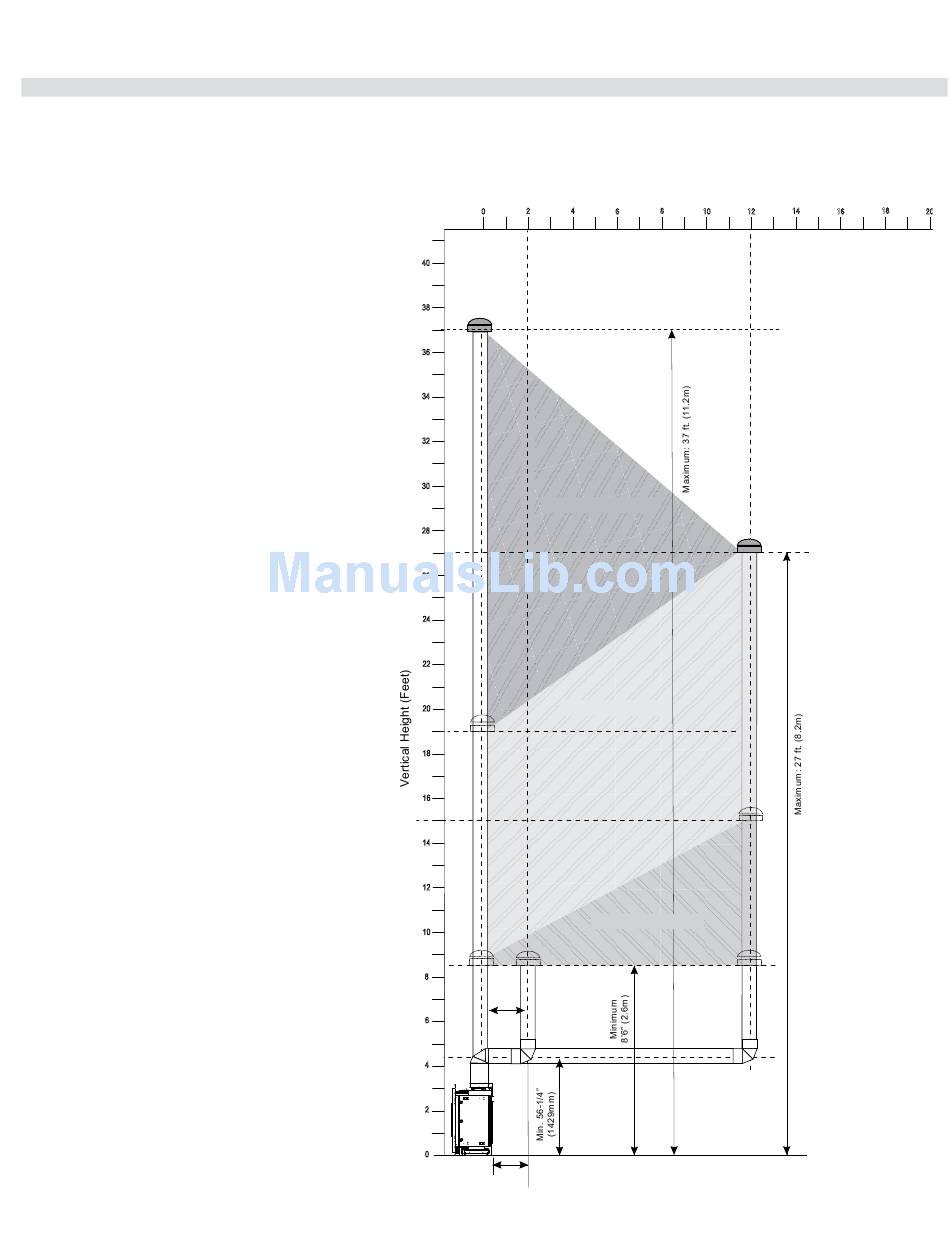

The shaded area in the diagram shows all allowable combinations
of straight vertical and offset to vertical terminations, using two
90
o
elbows, with Rigid Pipe Venting Systems.
Two 45
o
elbows equal to one 90
Vent must be supported at offsets.
Minimum distance between elbows is 1 ft. (305mm).
Maintain clearances to combustibles as listed in the
"Clearances" section.
Horizontal vent must be supported every 3 feet.
Firestops are required at each loor level and whenever
passing through a wall.
Must use optional rigid pipe adaptor (Part# 510-994. when
using rigid pipe vent systems.
Refer to the "Vent Restrictor Position" section for details on
how to change the vent restrictor from the factory setting
of Set 0 through to Set 3 if required.
NOTE: A minimum of 1' (305mm) vertical off the top of the unit
is required before any horizontal runs can start.
52
| City Series
o
elbow.
between elbows 12" (305mm)
2
4
0
40
38
36
34
32
30
Vent Restrictor on Set 3
28
26
24
22
Vent Restrictor on Set 2
20
18
16
14
12
10
8
6
4
2
0
Minimum length of pipe
o
Elbows (1 - 90
o =
Horizontal (Feet)
8
6
10
12
Vent Restrictor on Set 1
2 - 45
o
)
14
18
16
20
