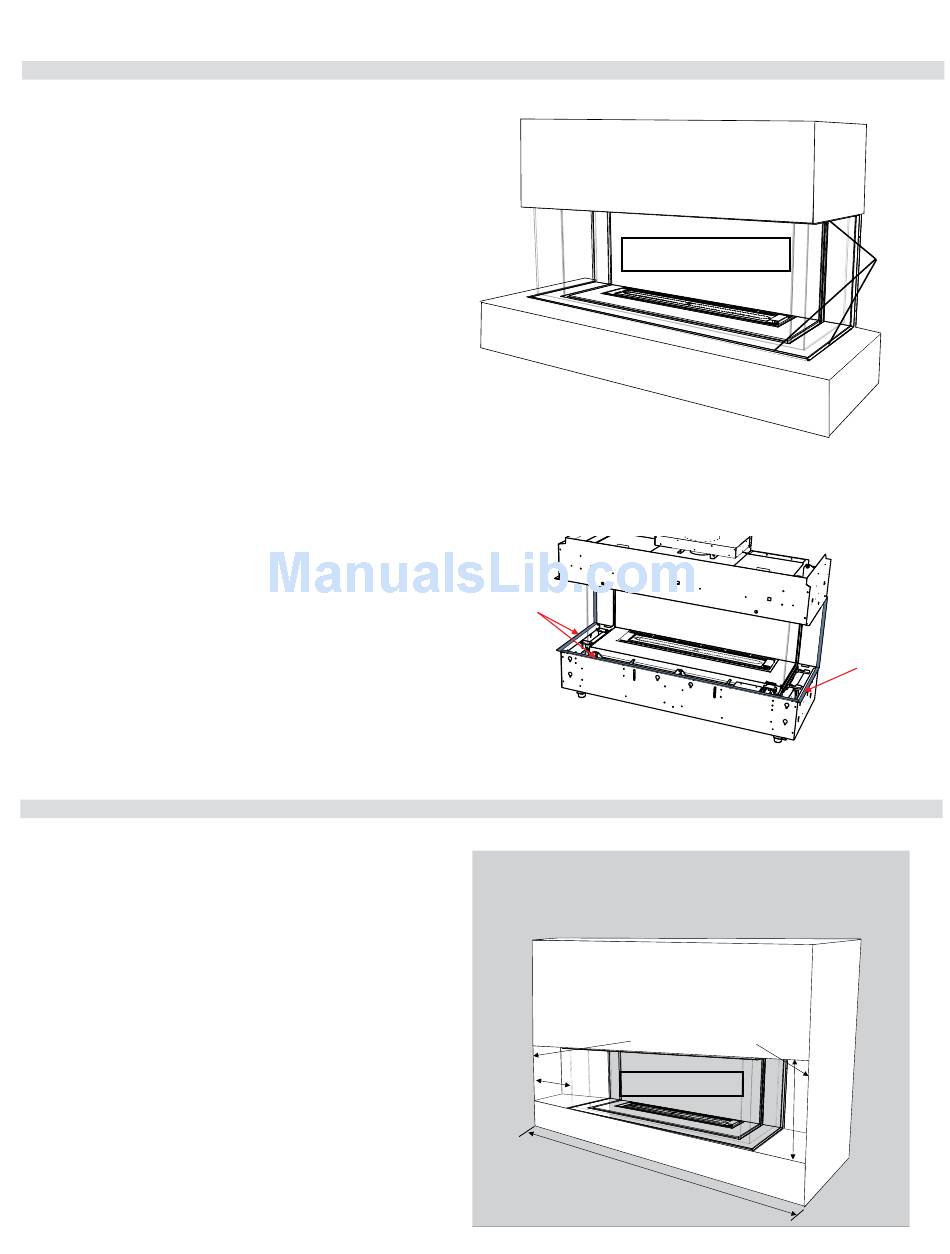

Framing and Finishing Inset Installations CB40E
1. Frame in the enclosure for the unit with framing material
Note: When constructing the framed opening ensure there is access to in-
stall the gas lines,electrical. Also the wiring harness must be wall mounted
using the receptacle provided with the appliance. The wiring harness will
be located on the right hand side of the appliance if facing the unit from the
front. This must be done prior to any inishing.
2. For exterior walls, insulate the enclosure to the same degree as the rest
of the house, apply vapour barrier and drywall, as per local installation
codes. (Do not insulate the ireplace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of the
exterior wall will result in operational and performance problems including, but
not limited to: excessive condensation on glass doors, poor lame package,
carbon, blue lames etc. These are not product related issues.
3. The unit does not have to be completely enclosed in a chase. You must
maintain clearances from the vent to combustible materials: See "Clear-
ances" section. Combustible materials can be laid against the side and
back standoffs and the stove base.
4. Combustible material (drywall,wood,wood panels, etc.) may be brought
up to this appliance (top,bottom and sides)
5. Ensure that the material being used does not encroach anywhere in the
area of the glass. This would cause dangerous operating conditions.
6. This appliance comes with a 1/2" lip at top, sides and bottom to hide the
ends of the drywall. The 1/2" side and bottom, front and bottom side lips
supplied with the appliance can alternatively be removed and replaced
with J Style Trim or Metal Corner Bead purchased at your local hardware
store to cover cut/exposed edges of the combustible facing material or
any other inishing materials being used. Six (6) screws secure the bot-
tom front lip. Two (2) secure the bottom side lips and 2 secure each side
if deciding to remove these. These will be hidden so the outer panels (if
installed) will need to be removed to access the screws. See outer panel
removal in this manual.
7. This appliance can also be recessed (using combustible materials) with
a hearth in front of the appliance. This can also extend to the top. See
below for details.
Extended Finish CB40E (walls closed off at either end)
The sides can extend out as shown below using combustible materials.
The opening must be a minimum of 84 inches wide and have a minimum of
8-1/2 " on one side of the ireplace, if choosing to offset the installation
**Combustible material may extend a minimum of 1/2" and to a maximum of
2-1/2 " from the Front top face of the appliance as shown. If 2-1/2" is insuf-
icient non combustible material may be used to extend the inished material
further out or alternatively be staggered if using combustible materials. See
mantel clearance chart for details. The base and sides have no limit when it
comes to how far the combustible material may extend out from the appliance.
40
| City Series
Do not place any materials any-
where glass is located.
Note : an offset screwdriver is provided with the appliance for ease of
removal/installation of the lip
removable trim
Walls closed off at either end
8-1/2"
on one side
Do not place any materials
anywhere glass is located.
84" min.
removable trim
15-1/16"
**Combustible material
1/2"
Lip
