installation

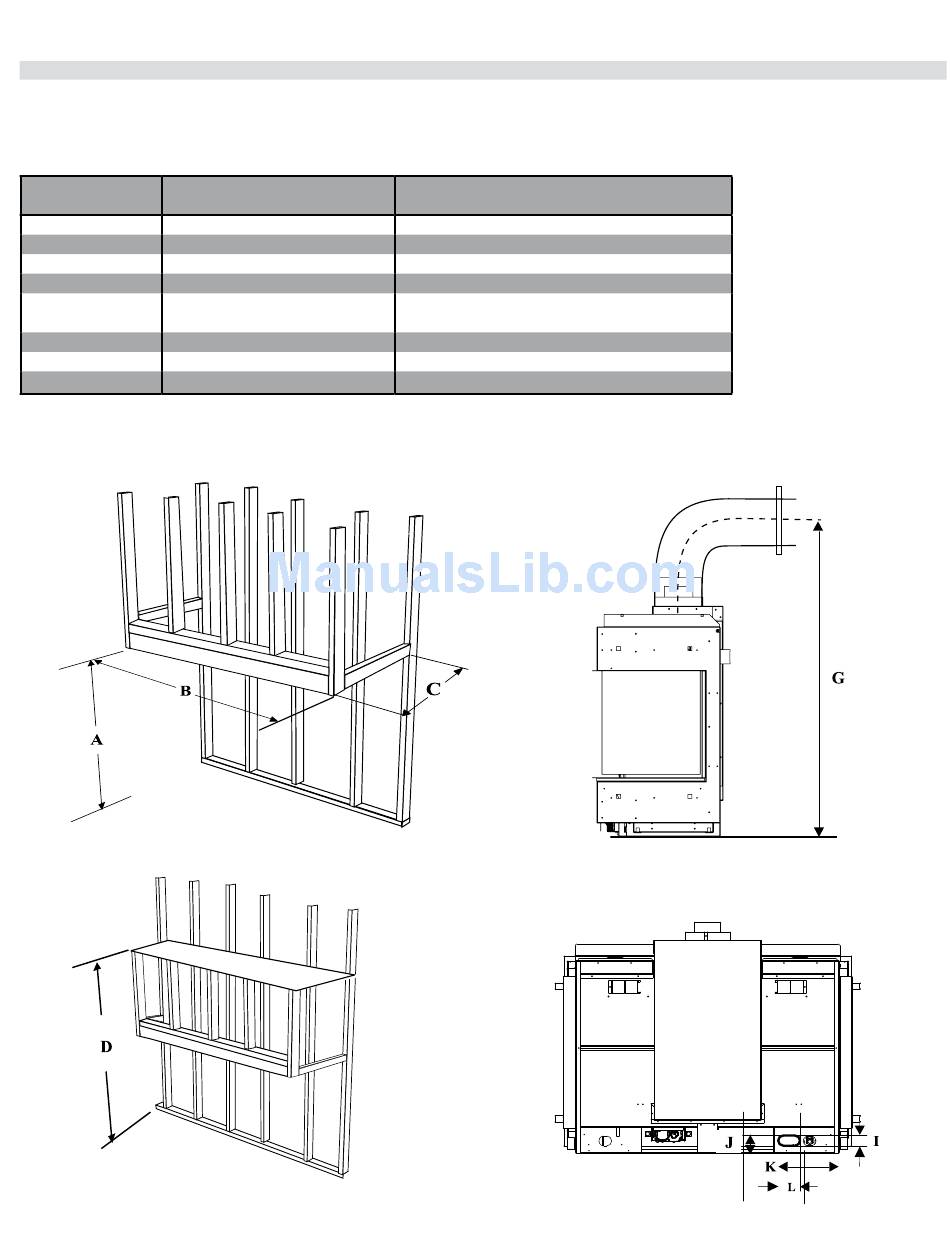

Framing Dimensions CB40E (3 sided)
NOTE: Framing may be constructed of combustible material (ie. 2x4) and does not require steel studs. Two (2) optional steel stud kits may also be purchased.
These kits may be used in place of the conventional wood framing as shown below. It comes as a compact kit (lush to the appliance on all sides)or
an extended kit. The extended kit protrudes beyond each side of the appliance as shown on the front cover of this manual. There is also an optional
hearth kit which may be purchased as shown on the front cover of this manual. These kits are highly recommended as it was designed speciically for
the product to facilitate ease of installation. See instructions in this manual for details.
Framing
Description
Dimensions
A
Framing Height
B
Framing Width
C
Framing Depth
D
Minimum Height to Combustibles
G
Vent Centerline Height
I
Gas Connection Opening Height
J
Gas Connection Height
K
Gas Connection Inset
L
Gas Connection Opening Width
Note: A combined minimum of 120 square inches of open area is required for the convection air outlet to cool the enclosure. Ensure clearances for Convection
Air Outlets are met. See clearances CB40E (3 sided) in this manual as there are different methods as to how this can be achieved.
Note: Only basic framing dimensions are shown. The framing may also extend beyond the appliance on either side and also extend out front if a hearth is
desired. See clearance/inishing requirements for details
18
| City Series
CB40E
37-3/8" (949mm)
48-1/2" (1232mm)
19" (483mm)
63"(1600mm)
56-1/4" (1429mm)
2" (51mm)
4 " (106mm)
13" (330mm)
3-1/2" (89mm)
Note: This appliance must be installed on
a solid surface such as a plywood loor
which must be the full width and depth of
the appliance.
