CB40E enamel panel installation
Black Enamel Panels — Handling Instructions
•
Black Enamel panels must be inspected for scratches and dimples prior to installation.
All claims to be recorded at this time.
Claims for damage after installation will not receive consideration.
•
Black Enamel panels will discolor a little during normal operation. This is normal and should not be considered a defect.
*
All hand and inger marks MUST be cleaned off with a soft cloth. Use an ammonia based cleaner (ie. glass cleaner) to remove any ingerprints before
applying heat to the unit.
Failure to do this will result in burn stain on panels which you will be unable to remove.
*Not protected by product warranty.

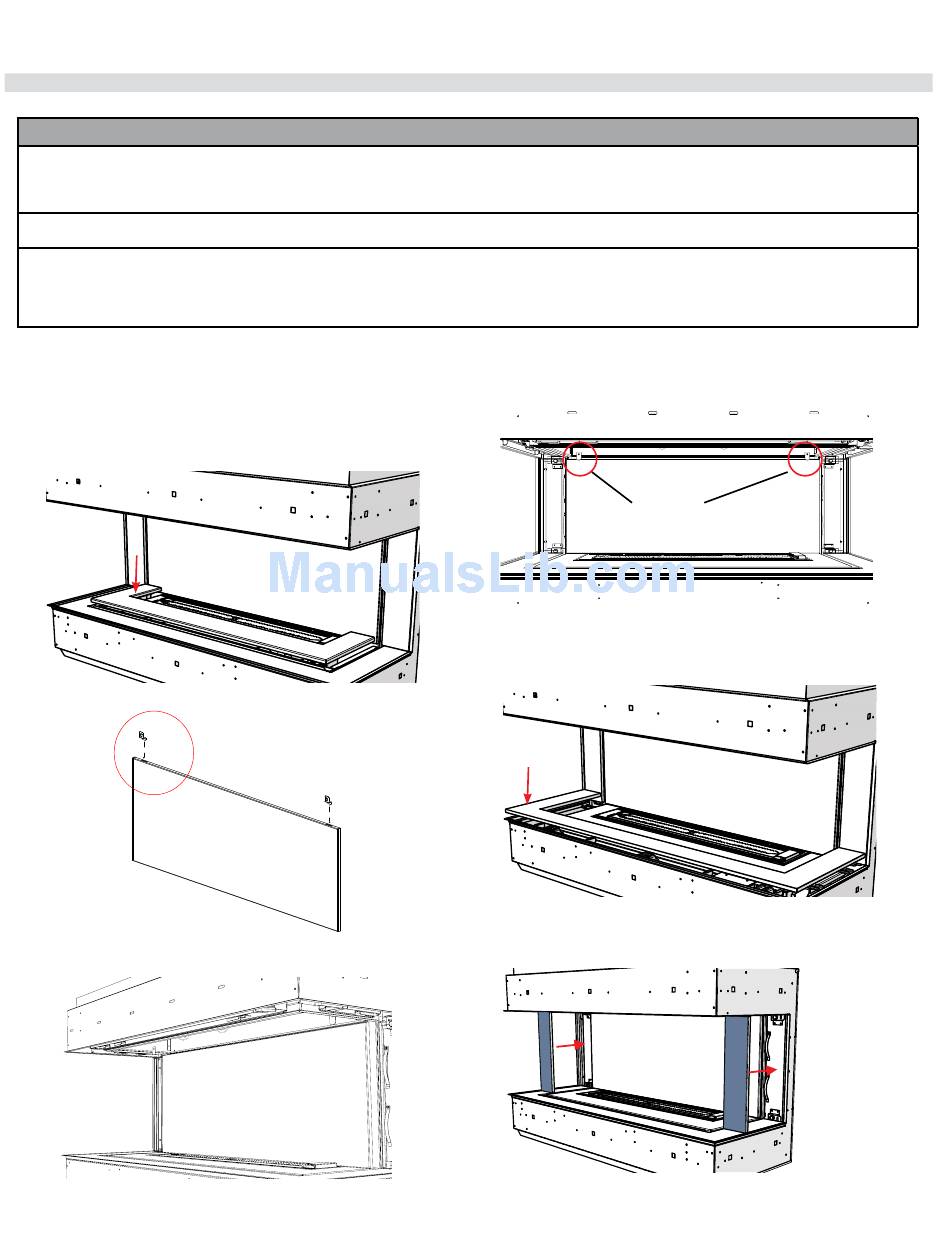

1. Turn off unit and allow to cool to room temperature. Remove the outer safety
glass and inner glass — see manual for instructions.
2. Install inner irebox base panel.
3. Install panel clips into the slots at the top of the panel as shown.
4. Install back enamel panel - manoeuvre panel into unit and position panel
at back wall of irebox.
Back Panel
5. Secure panel with 2 panel clips and 2 screws.
6. Install inner safety glass-see manual.
7. Install outer irebox base panel.
8. Install 2 outer side panels.
maintenance
Panel Clips
City Series |
73
