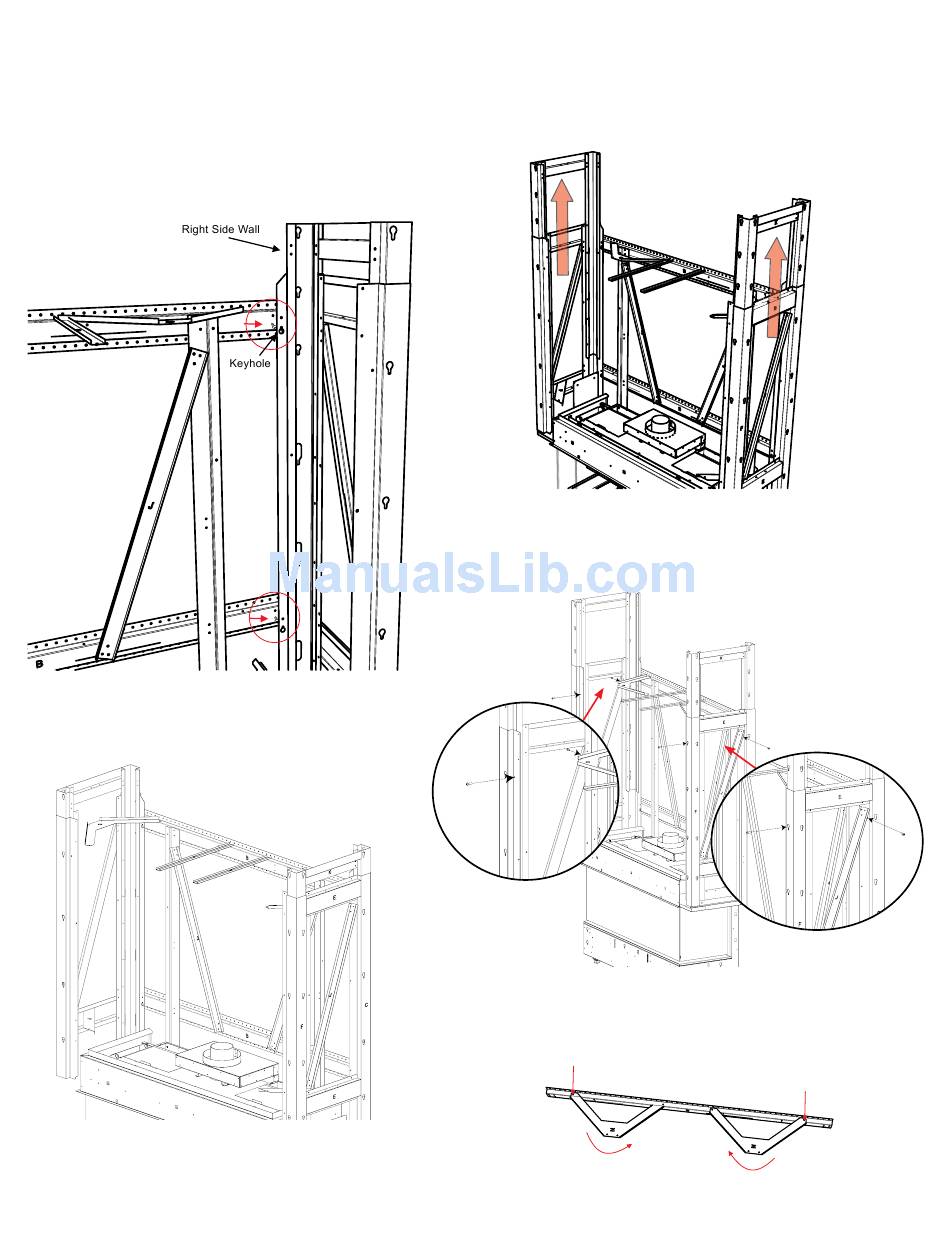

7. Install one screw (lower screw position) into B1 and B2. Hang the pre
assembled RIGHT sidewall off the 2 screws using the keyhole open-
ing on the sidewall.
8. When wall is in position - install the second screw in both B1 and B2
and tighten both screws to secure side wall.
Install Pre Assembled Right Side
9. Repeat Steps 7 & 8 on the left side to install LEFT pre assembled wall.
Install Pre Assembled Left Side
10. Telescope LEFT + RIGHT sides up to desired height. Fasten both
sides once in place with self tapping screws.
Telescope LEFT + RIGHT sides to desired height
NOTE: If installing the optional fi nishing wood panel kit, place a screw in
the framing kit in location shown in the diagram below. This will set the
frame at the correct height for the panels.
Install screw to set
height for panel
install
Set predetermined height when using wood panel kit
11. Attach N (x2) to the top of Part B3 using one screw each in locations
shown below. Swing Part N in as shown to keep out of the way until
further in the installation.
Attach Part N (x2) to Part B3
installation
