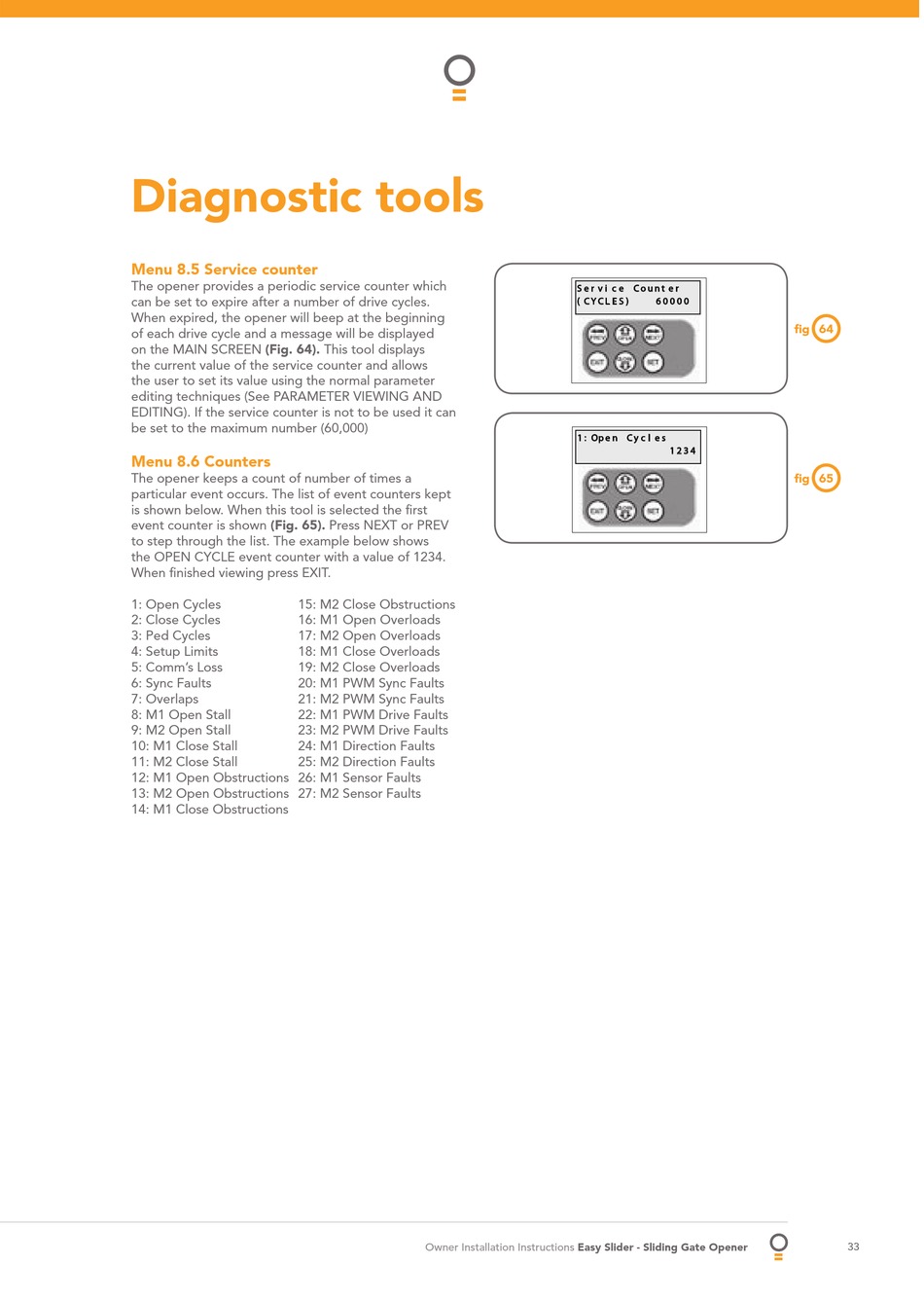

Diagnostic tools
Menu 8.5 Service counter
The opener provides a periodic service counter which
can be set to expire after a number of drive cycles.
When expired, the opener will beep at the beginning
of each drive cycle and a message will be displayed
on the MAIN SCREEN (Fig. 64). This tool displays
the current value of the service counter and allows
the user to set its value using the normal parameter
editing techniques (See PARAMETER VIEWING AND
EDITING). If the service counter is not to be used it can
be set to the maximum number (60,000)
Menu 8.6 Counters
The opener keeps a count of number of times a
particular event occurs. The list of event counters kept
is shown below. When this tool is selected the first
event counter is shown (Fig. 65). Press NEXT or PREV
to step through the list. The example below shows
the OPEN CYCLE event counter with a value of 1234.
When finished viewing press EXIT.
1: Open Cycles
15: M2 Close Obstructions
2: Close Cycles
16: M1 Open Overloads
3: Ped Cycles
17: M2 Open Overloads
4: Setup Limits
18: M1 Close Overloads
5: Comm's Loss
19: M2 Close Overloads
6: Sync Faults
20: M1 PWM Sync Faults
7: Overlaps
21: M2 PWM Sync Faults
8: M1 Open Stall
22: M1 PWM Drive Faults
9: M2 Open Stall
23: M2 PWM Drive Faults
10: M1 Close Stall
24: M1 Direction Faults
11: M2 Close Stall
25: M2 Direction Faults
12: M1 Open Obstructions 26: M1 Sensor Faults
13: M2 Open Obstructions 27: M2 Sensor Faults
14: M1 Close Obstructions
� � � � � � � � � � � � � �
� � � � � � � �
� � � � � � � � � � � �
Owner Installation Instructions
Easy Slider - Sliding Gate Opener
� � � � �
fig
64
� � � �
fig
65
33
