THE CONTROLLER PROVIDES SEVERAL DIAGNOSTIC TOOLS FROM WITHIN THE DIAGNOSTICS MENU
(MENU 8) THIS SECTION DETAILS THE FUNCTION OF EACH TOOL AND ITS USE.

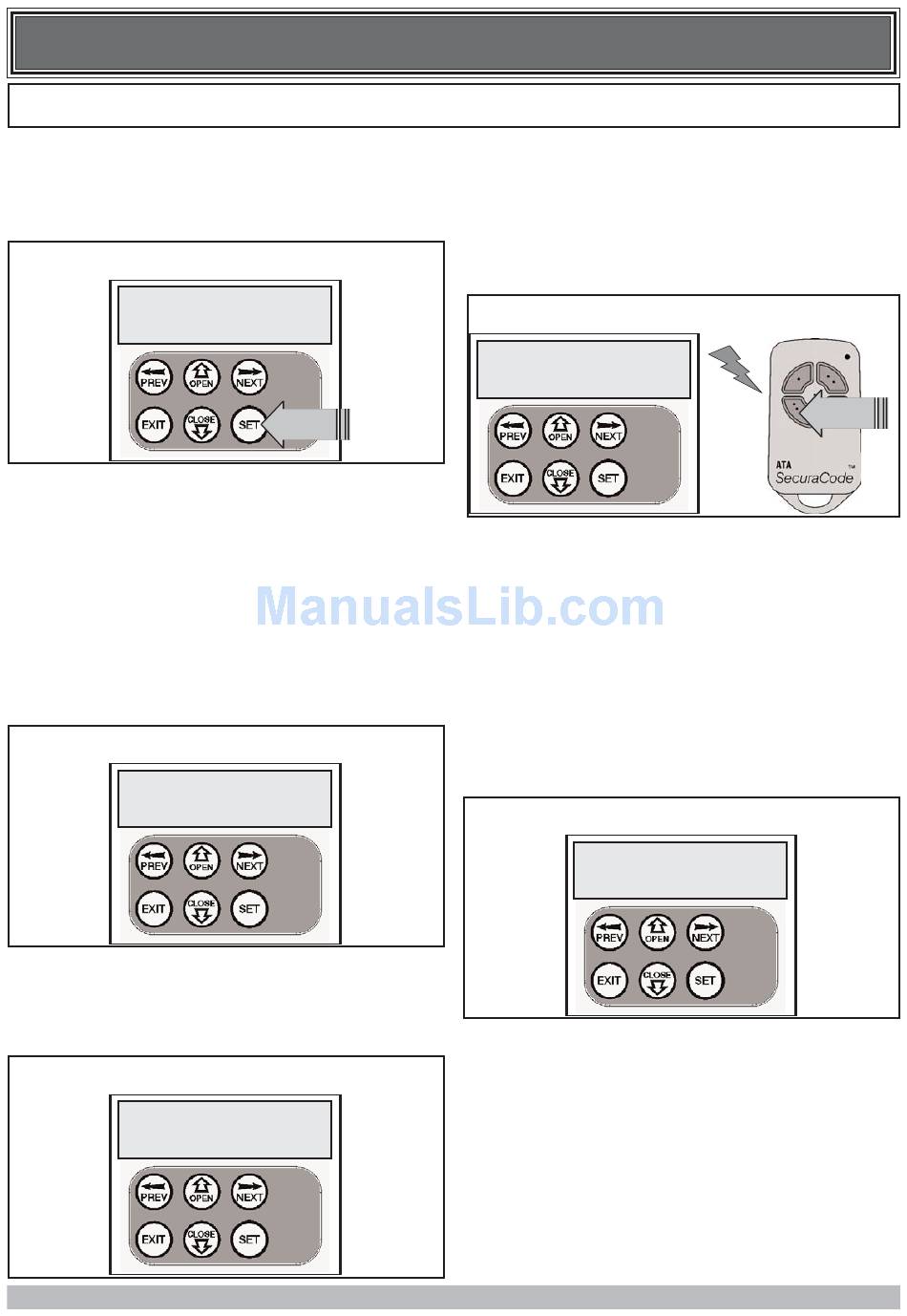

NAVIGATING TO THE DIAGNOSTICS MENUS
The Diagnostic tools are accessed by selecting the Diagnostics
menu (MENU 8). Use PREV or NEXT to display each of the
diagnostic tool menus in turn.. When the required tool's menu is
displayed simple press SET to access it.
Selecting Diagnostics
MENU 8
Diagnostics
THE SECTIONS BELOW DETAIL THE FUNCTION OF
EACH TOOL.

MENU 8.1 TEST INPUTS

This tool is used to view the state of the control inputs. When
selected, a screen is displayed (see below) which indicates the
state of each input. If the name of the input is in uppercase then
the input is active, conversely is the input is in lower case then the
input is inactive. For normal operation all inputs should be inac-
tive. When finished press EXIT. The example below shows the
status shown when the OSC input is active.
Input Status Screen
I/P: pe opn stp
cls OSC swp ped

MENU 8.2 TEST TX'ERS

This tool is used to test receiver / transmitter functionality. When
selected, a screen is displayed which prompts for a transmitter
button to be tested. The controller will then beep each time a
Prompt To Test Transmitter Button
Press Tx'er
Button to Test!
DIAGNOSTIC TOOLS
PRESS
26
transmission is received. If the transmitter button is stored in the
controller memory and has a function assigned to it, a second
screen will be displayed that shows the transmitter number and
name along with the function assigned to the transmitter button.
The example below shows the case when transmitter number 100
is activated by button 4. It can be seen that transmitter 100 has no
name assigned and and button 4 is assigned the OPN function.
When testing is complete, press EXIT .
Press Transmitter Button
#100 [ No Name ]
--- --- --- OPN

MENU 8.3 DISPLAY HISTORY

The controller keeps a record of the last 64 events that have taken
place. The events include the type of drive cycles executed,
obstruction detection, various faults, power failures etc. When
this tool is selected a screen is displayed (see below) which dis-
plays the last event that occurred. The NEXT and PREV buttons
can be used to view each event. The "EVENT#" field shows the
sequence of the events, with 1 being the first and 64 being the last.
The example below shows that the last event was a close cycle
which succeeded in closing the gate. When finished viewing the
events, simply press EXIT
Viewing Events
Close Complete

MENU 8.4 SERVICE COUNTER

The controller provides a periodic service counter which can be
set to expire after a number of drive cycles. When expired, the
controller will beep at the beginning of each drive cycle and a
message will be displayed on the MAIN SCREEN. The tools dis-
plays the current value of the service counter and allows the user
to set its value using the normal parameter editing techniques (See
PARAMETER VIEWING AND EDITING). If the service count-
er is not to be used it can be set to the maximum number which
requires 60,000 cycle before service will be due. The example
below shows the service counter with a value of 60000.
PRESS
EVENT# 64
