Electrical System; Structure; Description - Fimap MXR Workshop Manual

Chapter 5

Electrical System

5.1

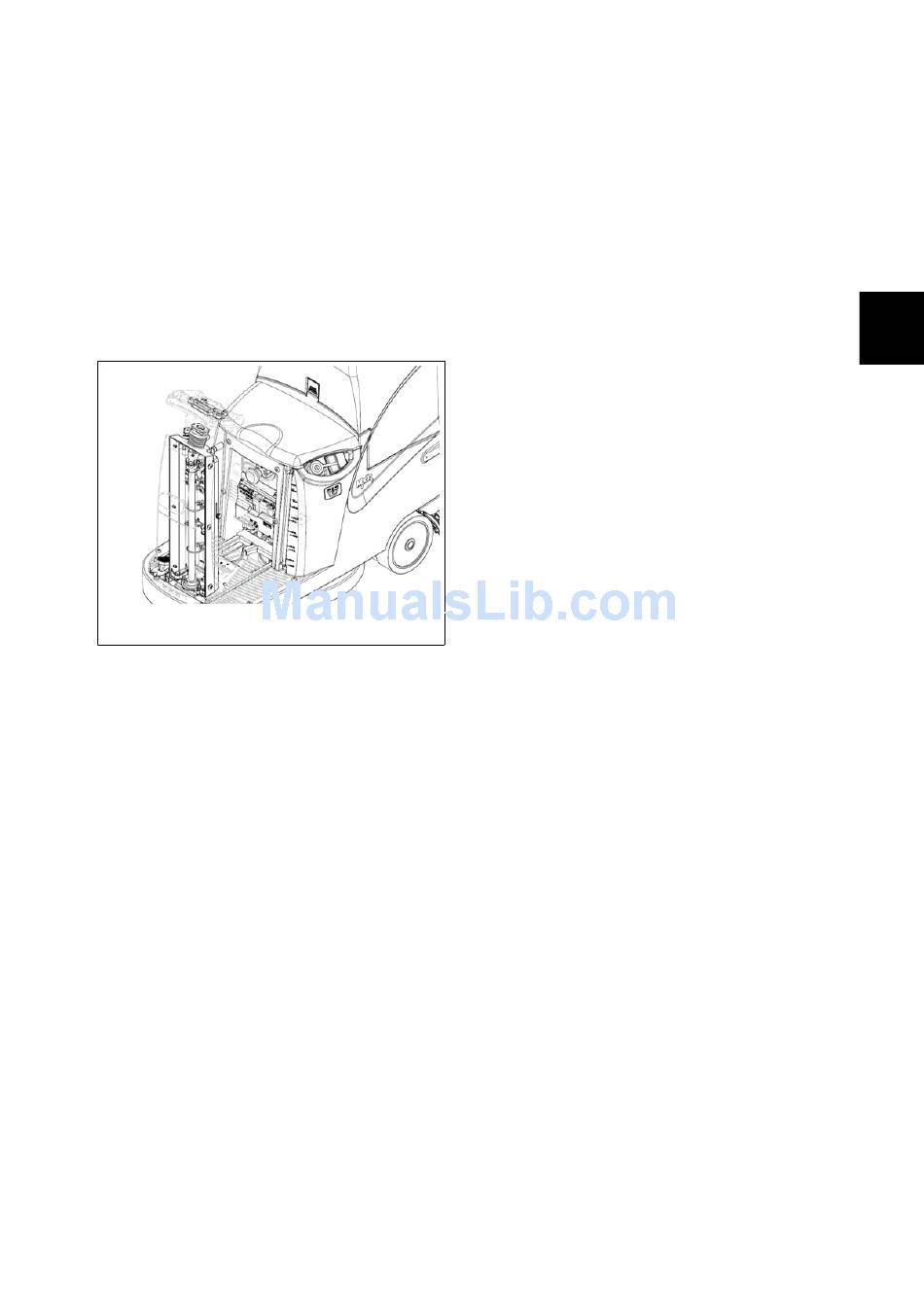

Structure

1. Main Card
2. Dash board
3. Control Card
4. Microswitches:
uum motor, inhibition of reverse,
curve speed reduction and deadman
switch
5. Electrobrake
6. Emergency button
7. Traction pedal
8. Batteries and battery charger
brush motor, vac-
31
5.2

Description

A main card runs all the functions of the
machine, traction, brush base, vacuum
and water. The main card receive as in-
put, all the information from the control
card, the safety micro and all the elec-
tronic devices of the machine. These sig-
nals are translated from the main card
to run correctly the scrubber dryer and
to prevent any safety problem to the op-
erator. The dash board can be used
also as a programmer console to mod-
ify the parameter of all the machine's
functions (traction, vacuum and wash-
ing) and, also, to check the consumption
of all the motors and batteries.
