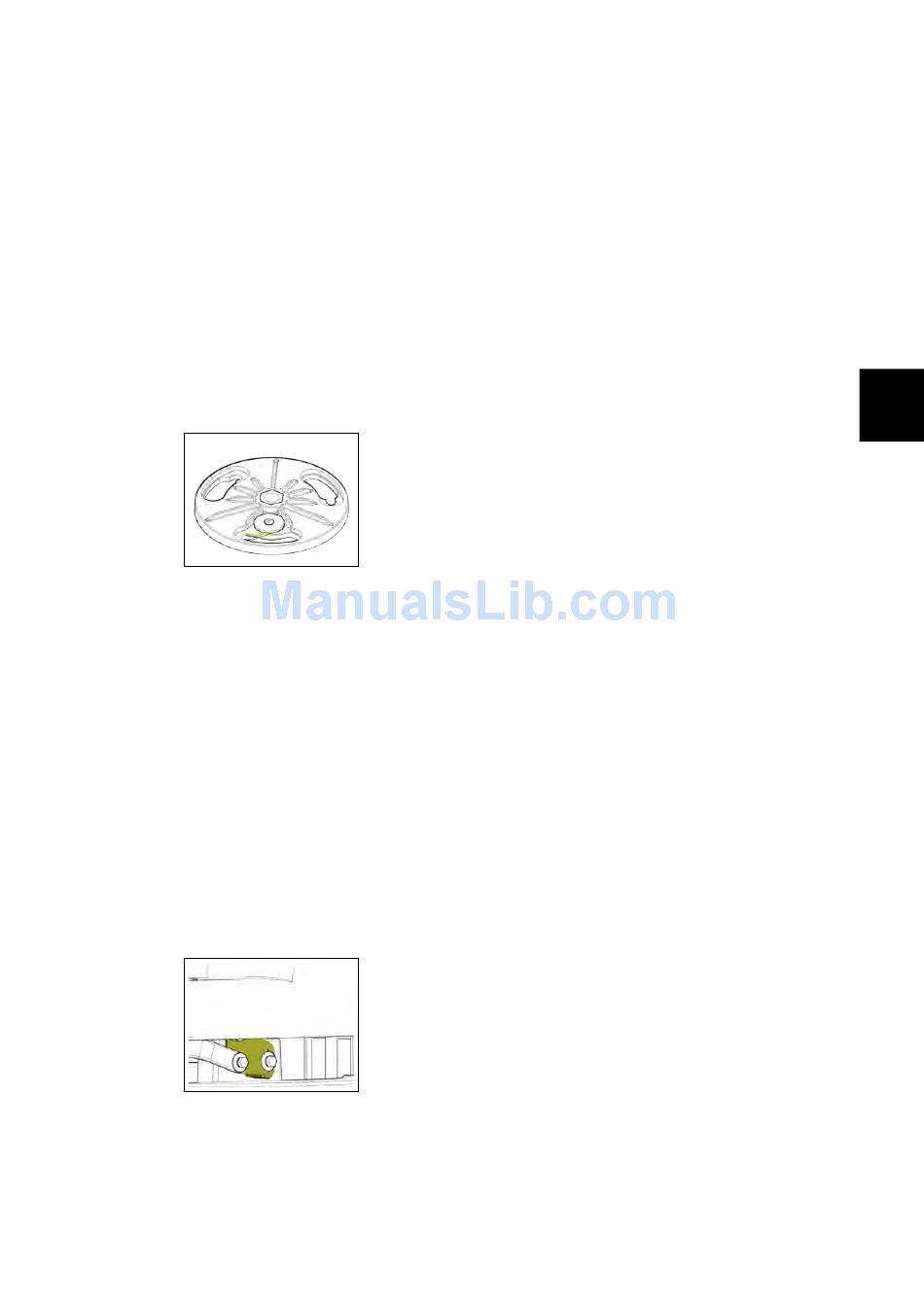

6.4.6 Brush coupling flange
Check
(to perform every 150h)
The brush coupling flange is of plastic
material and is not subject to partic-
ular wear. Like the other components
its cleanliness is essential to allow
the brush to engage and disengage
smoothly. 'It is also essential that the
brush locking spring has full function-
ality in order to keep the brush in the
correct position.
it.
6.4.6-90 Flangia
6.4.7 Fixing
plate
Check
(to perform every 150h)
The fixing plate must be in good condi-
tion, must not show signs of corrosion
or deformation. An incorrect fixing and
adjustment plate does not allow the
entire Mechanical Rubbing group to
work properly.
6.4.7-91 Plate
If necessary, replace
and adjustment
