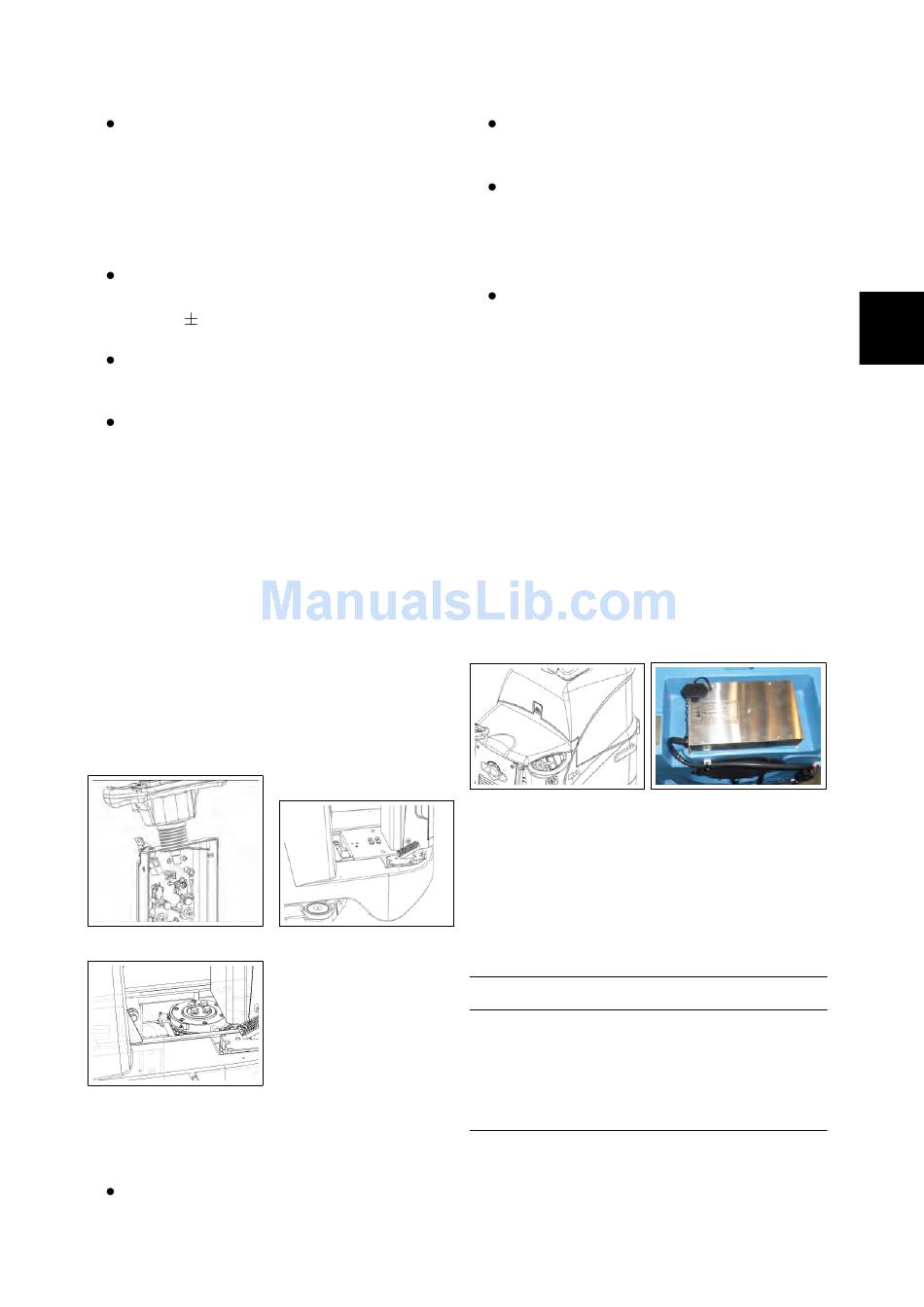

Fimap MXR Workshop Manual page 41

Using the tester to measure the re-
sistance (Ω) place the tester termi-
nals corresponding to the green and
yellow wires and check the resis-
tance value to be approximately zero
Ω.
Turn the potentiometer shaft coun-
terclockwise until the tester gives
0,5 Ω ( 0,1).
Lock the dowel and replace the plas-
tic cap.
Reinstall the pedal and the footrest.
5.4.2 Microswitch
Check functionality and conditions of
the brush motor microswitch, the vac-
uum motor microswitch, of reverse inhi-
bition microswitch, the curve speed re-
duction microswitch. Check that with
microswitch pressed, remain about 0.5
mm clearance between the lever and the
body of the device. Make sure the lever
of the micro is working properly. Other-
wise, proceed as follows:
5.4.2-77
5.4.2-79
Unscrew the fixing screws.
Move the DIP switches using the
loop adjustment.
Fix the screws to lock the mi-
croswitches taking care not to over
tighten in order not to ruin the de-
vices.
When the setting is finished, verify
the correct functionality of the mi-
croswitches.
5.4.3
The battery charger is positioned behind
the operator's seat and is easily accessi-
ble by pressing the release button on the
recovery tank. When connected to the
power supply, a red led will blink once,
the yellow led blink once and the green
led blink depending of the type of battery
for which the charger is set.
A Proper Charging cycle follows the be-
5.4.2-78
low phases order.
Phase LED Description
A
B
C
D
Check if the charger is properly set ac-
cording to the installed batteries.
Battery Charger (CB)
5.4.3-80
Red Blinking, check of battery
status
Red First charging phase
YellowSecond charging phase
Green Charged battery
