Fimap MXR Workshop Manual page 26

4.4.2-42
4-26
sterzo
4.4.3 Steering shaft
Put the machine in safe conditions.
Remove the front carter from the
steering column by loosening the
screws.
Loosen the upper grains from the
universal joint.
Remove the steering wheel from the
machine.
Loosen the lower grains from the
universal joint.
Loosen the chain draw grains.
Remove the chain joint.
Remove the chain from the steering
column.
Remove the column support by loos-
ening the screws.
Remove the chain tensioner bracket.
Pull out the steering column from
the lower support.
Proceed at reverse to refit the part.

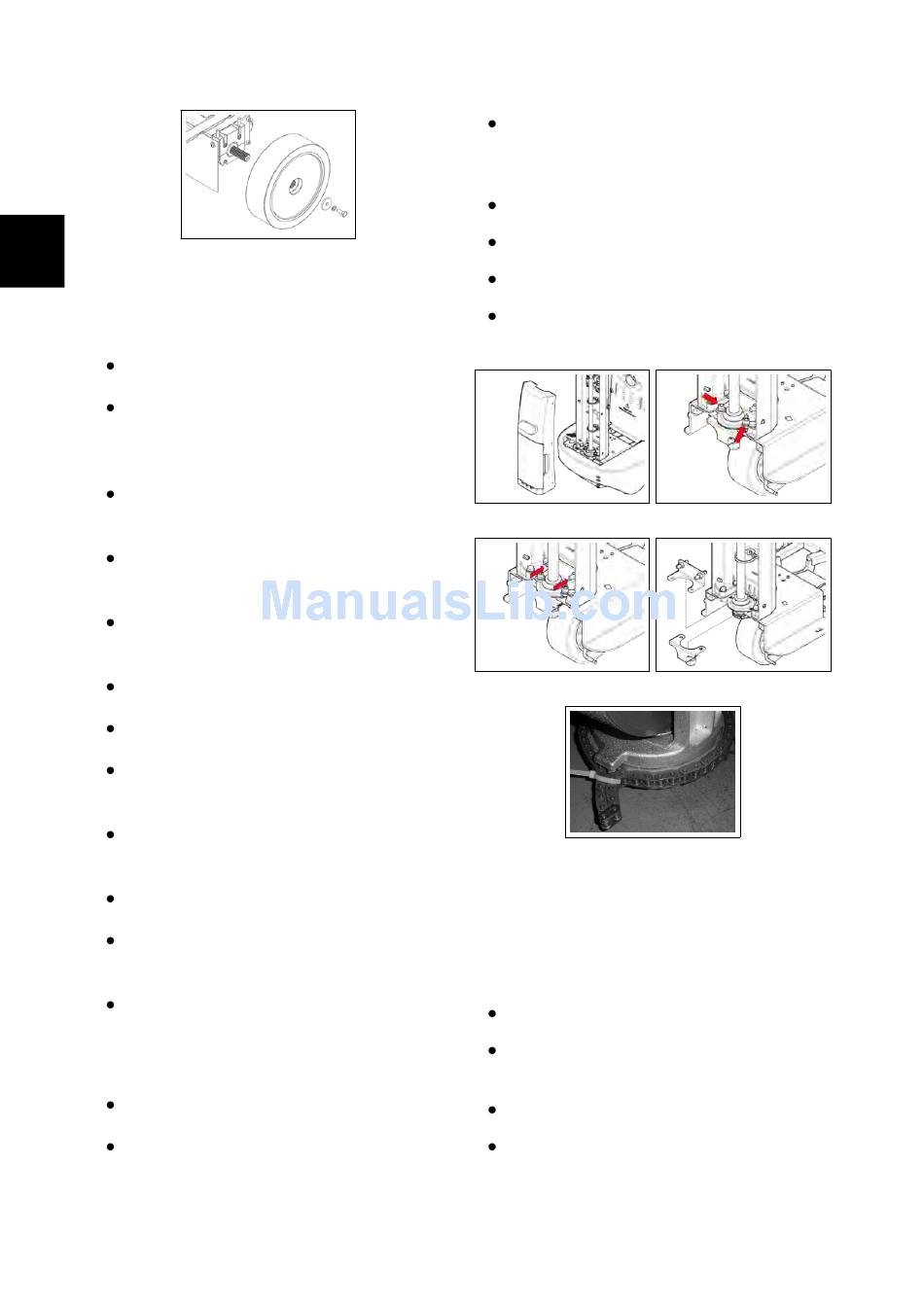

4.4.4 Steering Chain
Put the machine in safe conditions.
Remove the front carter from the
steering column by loosening the
screws
Regolazione
.
(see fig. 4.5.1-55)
Loosen the screws that secure the
lower support of the steering shaft
.
(see fig. 4.4.4-44)
Loosen the grains
Remove the chain joint
Remove the chain from the sprocket.
Proceed at reverse to refit the part.
4.4.4-43
4.4.4-45
4.4.4-47
4.4.5 Crown of the wheel sup-
port bearings cam
Put the machine in safe conditions.
Remove the steering chain
.
4.4.4 at page 26)
Lift the front wheel off the ground.
Remove the screws securing the
front wheel to the frame
.
48)
.
(see fig. 4.4.4-45)
.
(see fig. 4.4.4-47)
4.4.4-44
4.4.4-46
(see section
(see fig. 4.4.5-
