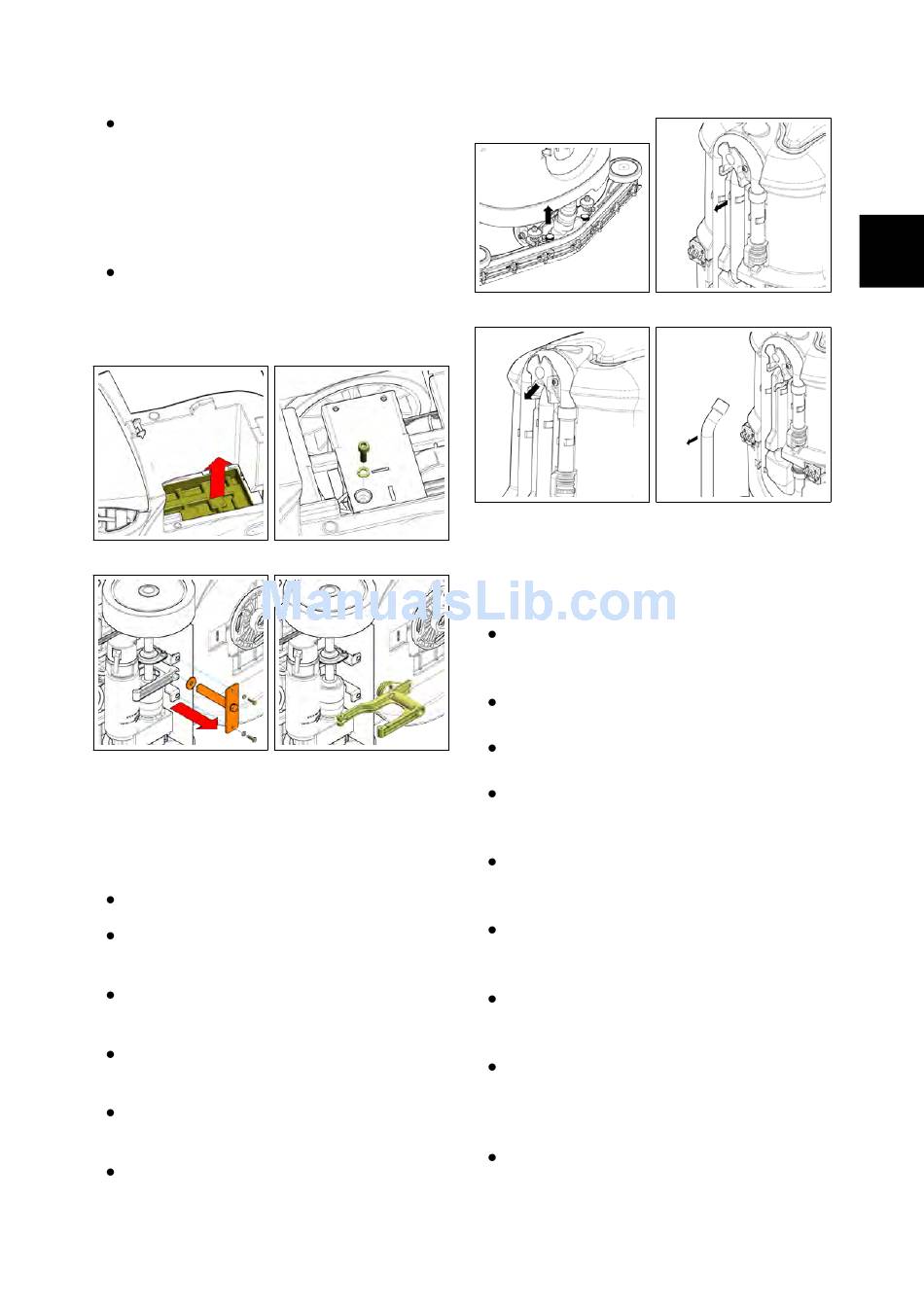

Remove the screws that secure the
reinforcing plate of the squeegee
support fulcrum and remove it. to-
gether with, it will be also removed
the squeegee support fulcrum hub
.
(see fig. 4.3.2-24)
Remove the squeegee support ful-
crum rotating it properly
.
25)
4.3.2-22
4.3.2-24
4.3.3 Vacuum Hose
Put the machine in safe conditions.
Unplug the Vacuum Hose from the
Squeegee
(see fig. 4.3.3-26)
Uncouple the squeegee from the
plastic clip
(see fig. 4.3.3-27)
Uncouple the Vacuum Hose from the
Recovery tank Inlet
Slip off the hose from its housing
.
fig. 4.3.3-29)
Proceed at reverse to refit the part.
(see fig. 4.3.2-
4.3.2-23
4.3.4
4.3.2-25
.
.
.
(see fig. 4.3.3-28)
(see
4.3.3-26
4.3.3-28
Recovery Tank
Make sure that the recovery tank is
completely empty.
Put the machine in safe conditions.
Remove the recovery tank lid.
Remove the vacuum hose
.
30)
Unplug the charger cable - vacuum
motor - blinking light.
Cut the clamps that secure the ca-
bles to the solution tank.
Loosen the screw that fix the safety
cord of the tank
(see fig. 4.3.4-31)
Unscrew the screws holding the
opening hinges to the recovery tank
.
(see fig. 4.5.1-53)
Proceed at reverse to refit the part.
4-23
4.3.3-27
4.3.3-29
(see fig. 4.3.4-
.
