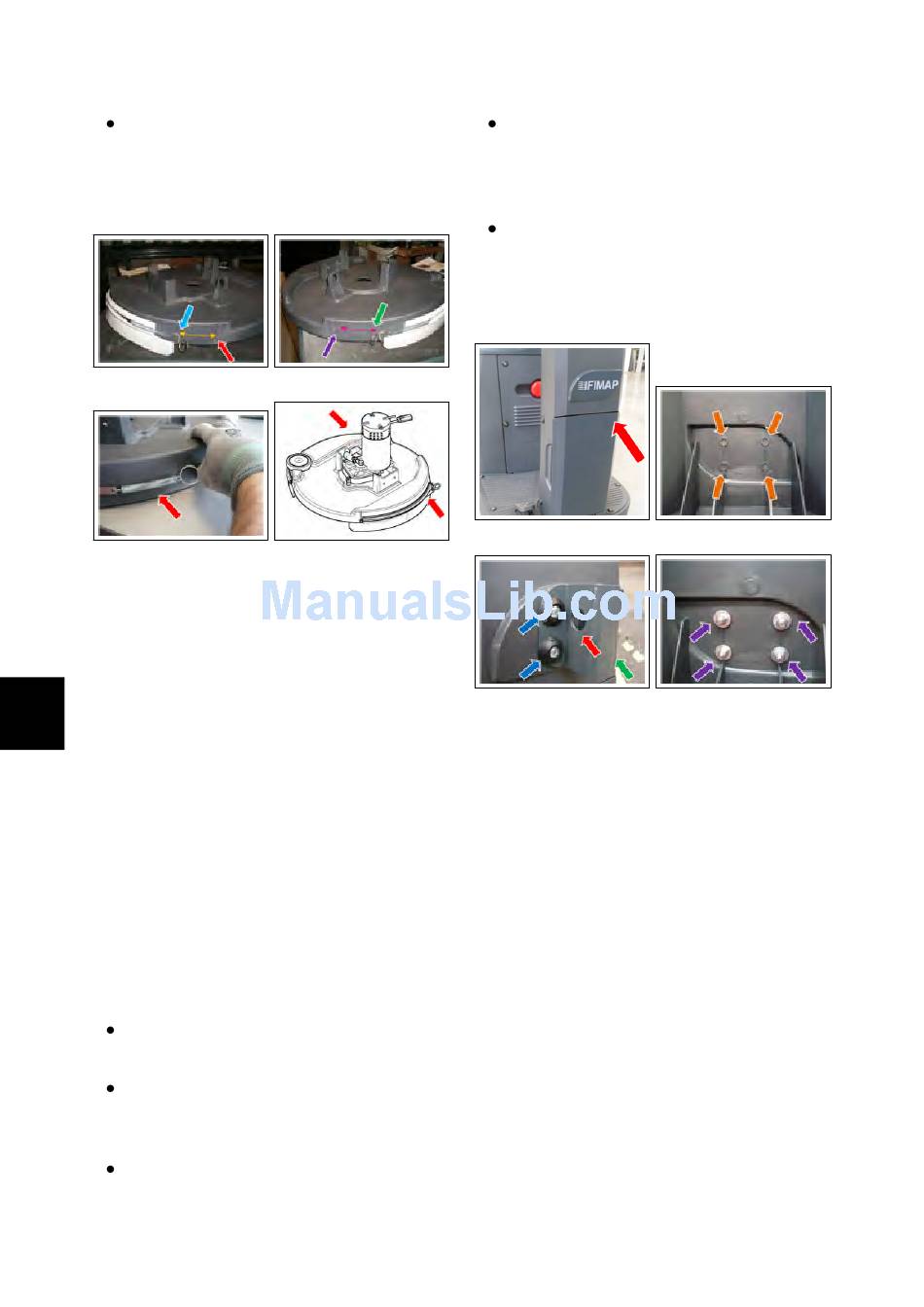

Cleaning Accessories Kit - 222472 - Fimap MXR Workshop Manual

Reconnect the battery cables and
proceed to a functional check of the
machine with a brush attached to
the base.
10.4.2-133
10.4.2-135
10.5 Cleaning Accessories
Kit - 222472
10-78
10.5.1 Description
The set of the cleaning accessories al-
lows to equip the machine with a cou-
pling system for many accessories for
manual cleaning.
cantly reduce downtime while increas-
ing the productivity of the machine and
make it much more comfortable the
working shift of the operator.
10.5.2 Installing instructions
Unplug the power cable of the bat-
teries.
Remove the front carter of the ma-
chine by removing the six support
screws.
Drill four holes Ø5 at predispositions
on the back of the front carter.
10.4.2-134
10.4.2-136
These can signifi-
Place the front support bracket as
shown in the image (upwards slot
of the bracket). Secure the bracket
with the four M5 provided screws.
Tighten the screws with the washers
and locking nuts included in the kit.
Restore the front carter of the ma-
chine.
10.5.2-137
10.5.2-139
10.5.2-138
10.5.2-140
