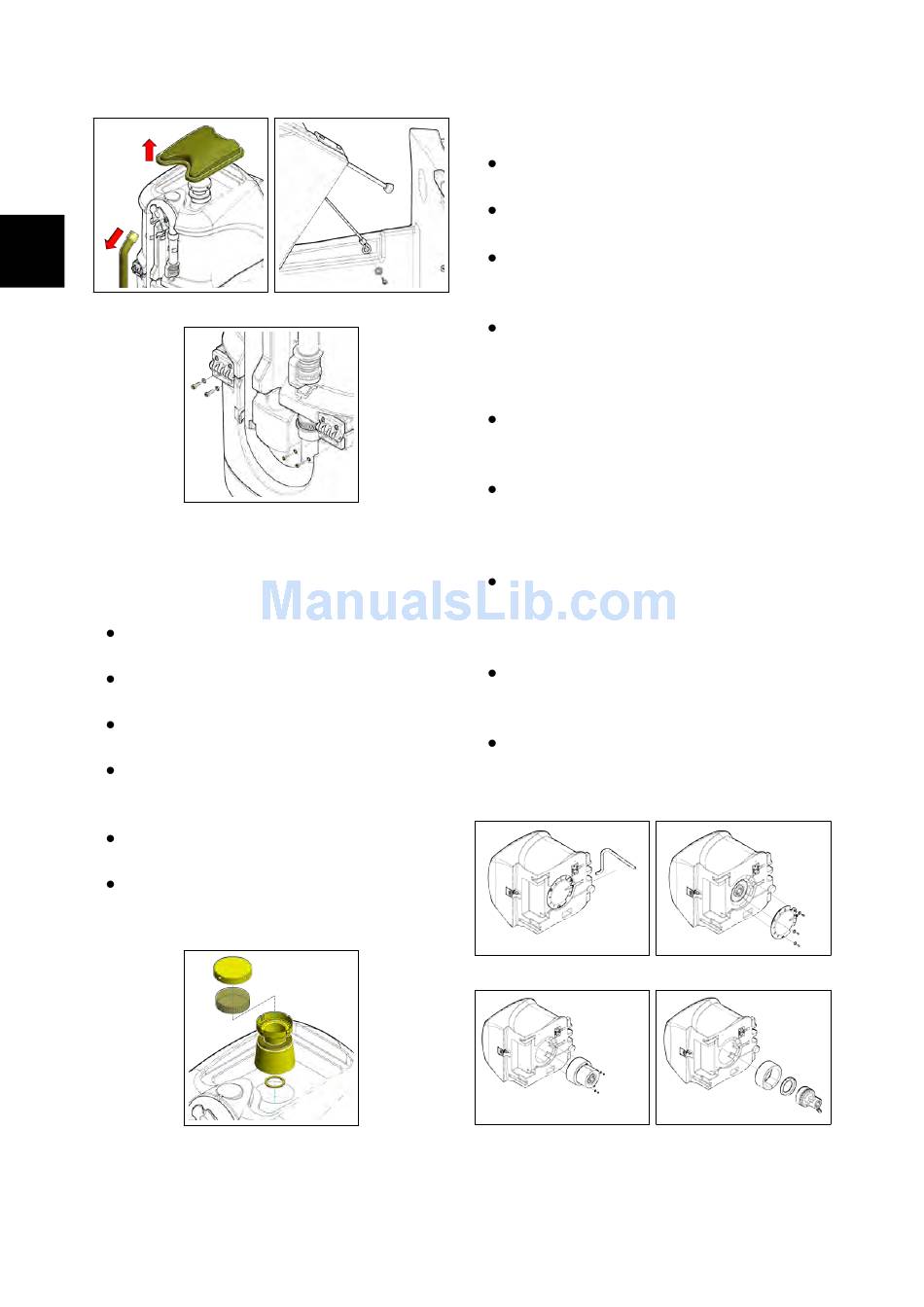

Fimap MXR Workshop Manual page 24

4-24
4.3.4-30
4.3.5 Floater and Vacuum Filter
Put the machine in safe conditions.
Remove the Recovery Tank Lid.
Unscrew the floating filter body.
Remove the cap from the floating fil-
ter body.
Remove the sponge suction filter.
Proceed at reverse to refit the part.
4.3.4-31
4.3.4-32
4.3.5-33
4.3.6 Vacuum Motor
Put the machine in safe conditions.
Open the Recovery Tank.
Disconnect the power cords of the
Vacuum Motor.
Cut the plastic clamp that secures
the condensate drain hose to the re-
covery tank
(see fig. 4.3.6-34)
Loosen the screws and remove the
vacuum motor cover
Unscrew the nuts that secure the
vacuum motor to the recovery tank
.
(see fig. 4.3.6-36)
Pull out the vacuum motor and re-
move the sound absorbing sponges
.
(see fig. 4.3.6-37)
Loosen the screws to remove the mo-
tor fixing plate.
Proceed at reverse to refit the part.
4.3.6-34
4.3.6-36
.
.
(see fig. 4.3.6-35)
4.3.6-35
4.3.6-37
