Fimap MXR Workshop Manual page 19

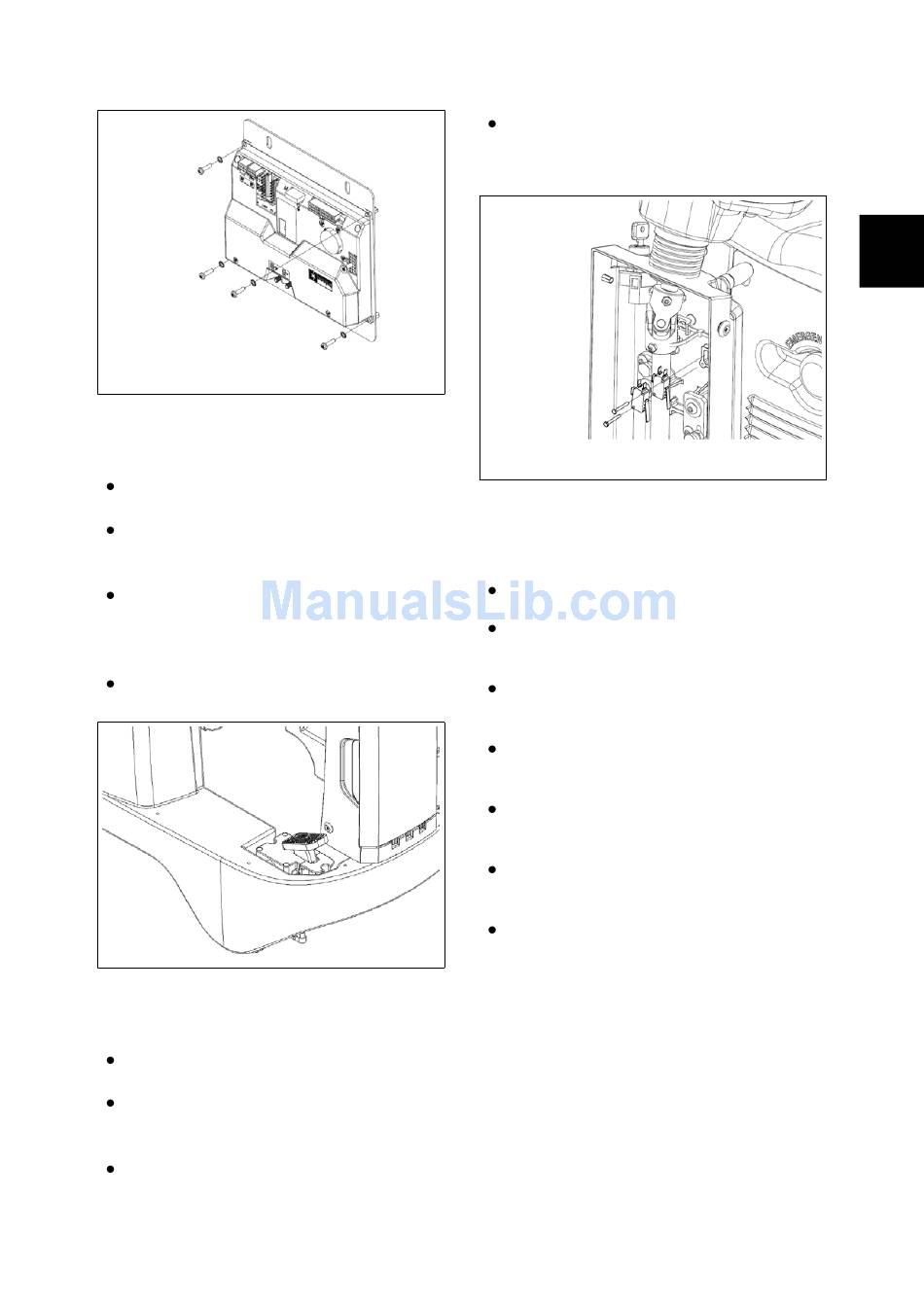

4.1.4 Traction Pedal
Put the machine in safe conditions.
Remove the screws to remove the
footrest.
Release the footswitch connector
and unscrew the two screws holding
the pre-assembly pedal.
Remove the pedal.
4.1.5 Microswitch
Put the machine in safe conditions.
Remove the screws that secure the
front carter to the steering column.
Disconnect the wires connected to
the microswitch.
To remove the microswitch, unscrew
the two screws and remove the de-
vice.
4.1.6 Dead Man Switch (Seat
microswitch)
Put the machine in safe conditions.
Unscrew the screws to remove the
electrical system cover
Unscrew the lower screws that fix
the seat
(see fig. 4.1.6-8)
Unscrew the rear screws that fix the
seat
(see fig. 4.1.6-9)
Remove the seat from the machine
.
(see fig. 4.1.6-10)
Remove the
joints.
Remove the dead man Switch.
(see fig. 4.5.1-56)
.
.
switch connecting
4-19
.
