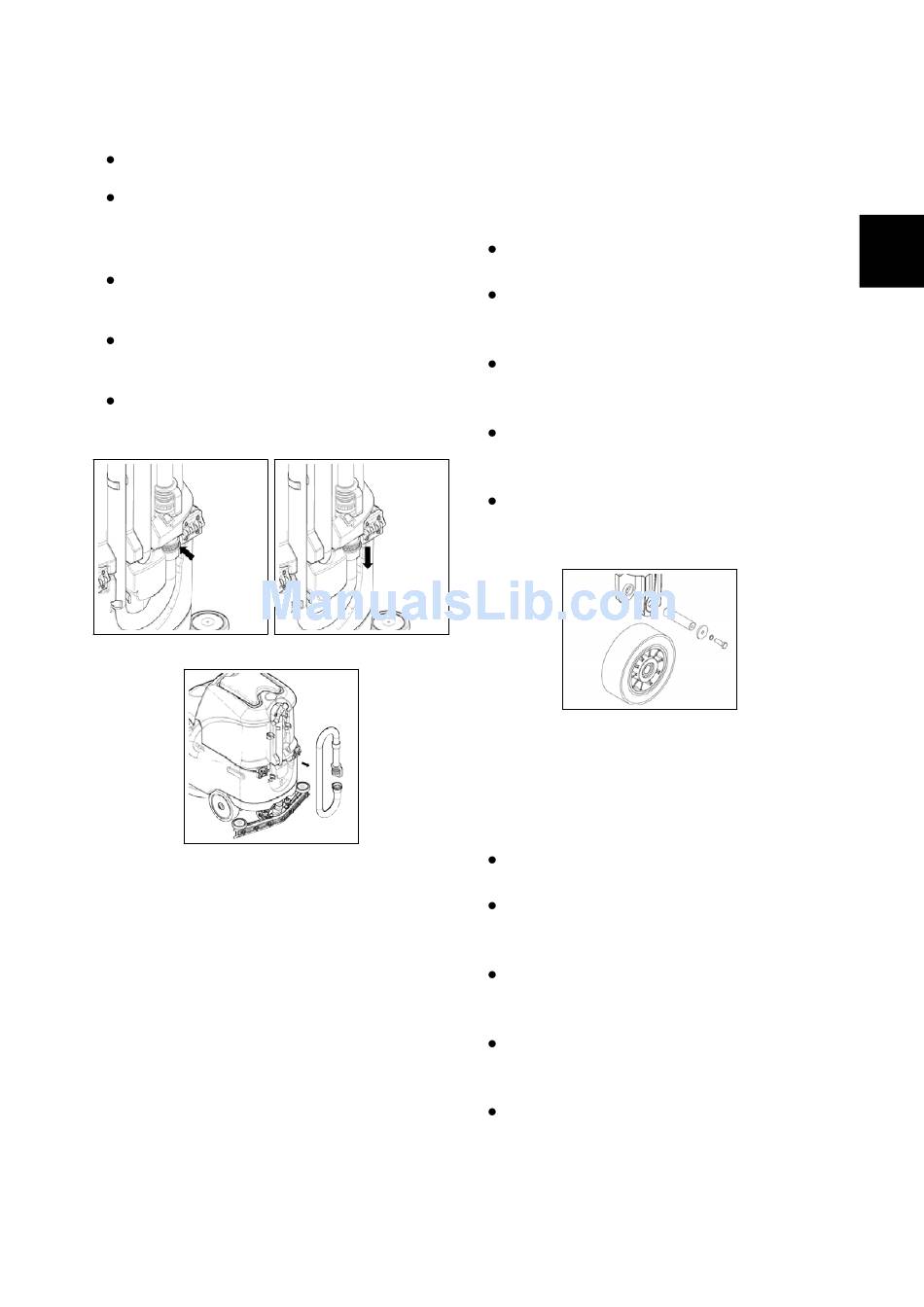

4.3.7 Drain Hose
Put the machine in safe conditions.
Loosen the clamp that secures the
drain hose to the recovery tank
.
4.3.7-38)
Unhook the hose from the plastic
clip
(see fig. 4.3.7-39)
Remove the hose from its housing
.
fig. 4.3.7-40)
Proceed at reverse to refit the part.
4.3.7-38 Fase 1
4.3.7-40 Fase 3
(see fig.
.
(see
4.3.7-39 Fase 2
4.4 Frame
System
4.4.1 Front Wheel
Put the machine in safe conditions.
Lift up the front wheel from the
ground.
Unscrew one of the fixing screws of
the wheel shaft to the support.
Remove the wheel securing shaft to
the support.
Proceed at reverse to refit the part.
4.4.1-41
4.4.2 Rear Wheel
Put the machine in safe conditions.
Lift up the related rear wheel from
the ground.
Remove the hub cap by levering with
a small flat screwdriver.
Loosen the fixing bolt of the wheel to
the axle shaft.
Proceed at reverse to refit the wheel
(Use the thread lock liquid on the
screw during the assembling).
and Traction
4-25
