In some cases, the services available are restricted due to the subscription contract
with the provider. When executing commissioning, make sure to confirm which
services are available by checking the subscription contract or notification letters,
etc.
For example, you may be enabled to communicate via Standard IP data but not via
Streaming IP data or UDI, or you may be enabled to use E-mails but not to connect
to the Internet, etc.
Please note that any SIM card would enable you to use the phone 4 k AMBE and
Standard IP data.

1. Installations

1. The power source for the Communication unit is 12 - 24VDC / 9.2 - 4.6A. As for
the AC/DC power source, PR-240 is available. Make sure to change the fuse
equipped for the power source cable depending onto the input power voltage. The
corresponding fuses are; 12VDC/15 A, and 24VDC/7 A.

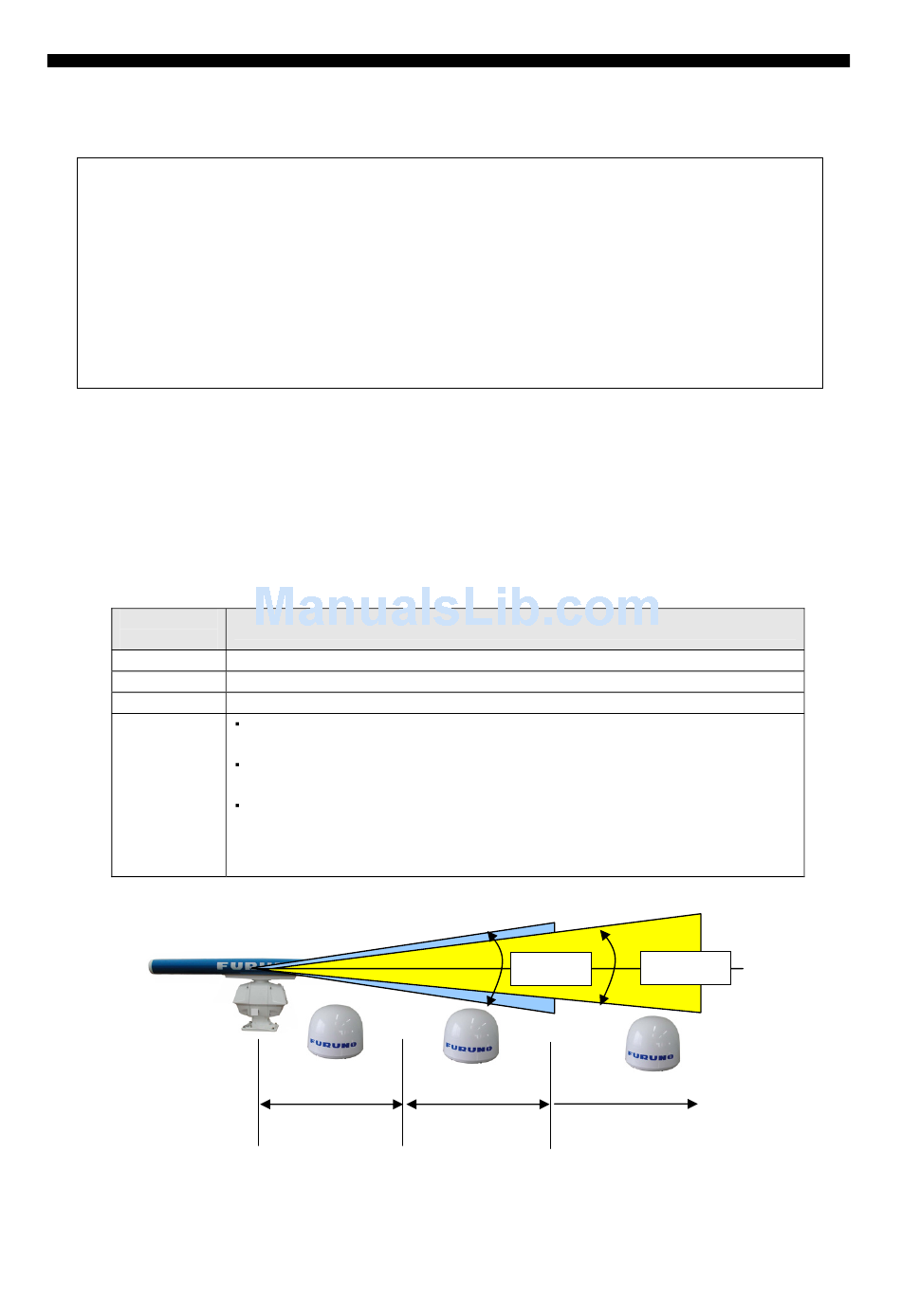

2. The distance between FB-1500/1250 and other Antennas
Target
Antenna
HF 5 m or more
VHF 4 m or more
GPS 4 m or more
Make sure to take the angle of 10 degrees or more and the distance of
5 m or more from the center of the Radar beam for S and X-Band.
Do not have the Radar equipped within 3 m from the Radar Antenna
for S and X-Band.
Radar
When having the Radar equipped at the distance of 3 to 5 m from the
S and X-Band Radar Antenna, make sure to have it equipped at the
angle of 15 degrees or more from the center of the Radar beam.
Minimum distance
Reference) X-Band: 20 degrees, S-Band: 25 degrees
3 m or less
Prohibited to
Width of beam:
be equipped
To be apart for
±15 degrees
or more
+15 deg.
5 m or more
3 – 5 m
Width of beam:
To be apart for 10
degrees or more
1
Summary
Summary
+/-10 deg.
