Hardware Installation
Ethernet TCP/IP
Ethernet TCP/IP is the standard Ethernet interface used to connect multiple locations in a
network, such as computers in an office network. It can also be used to network other
communications devices, such as imagers and PLCs on a factory floor.

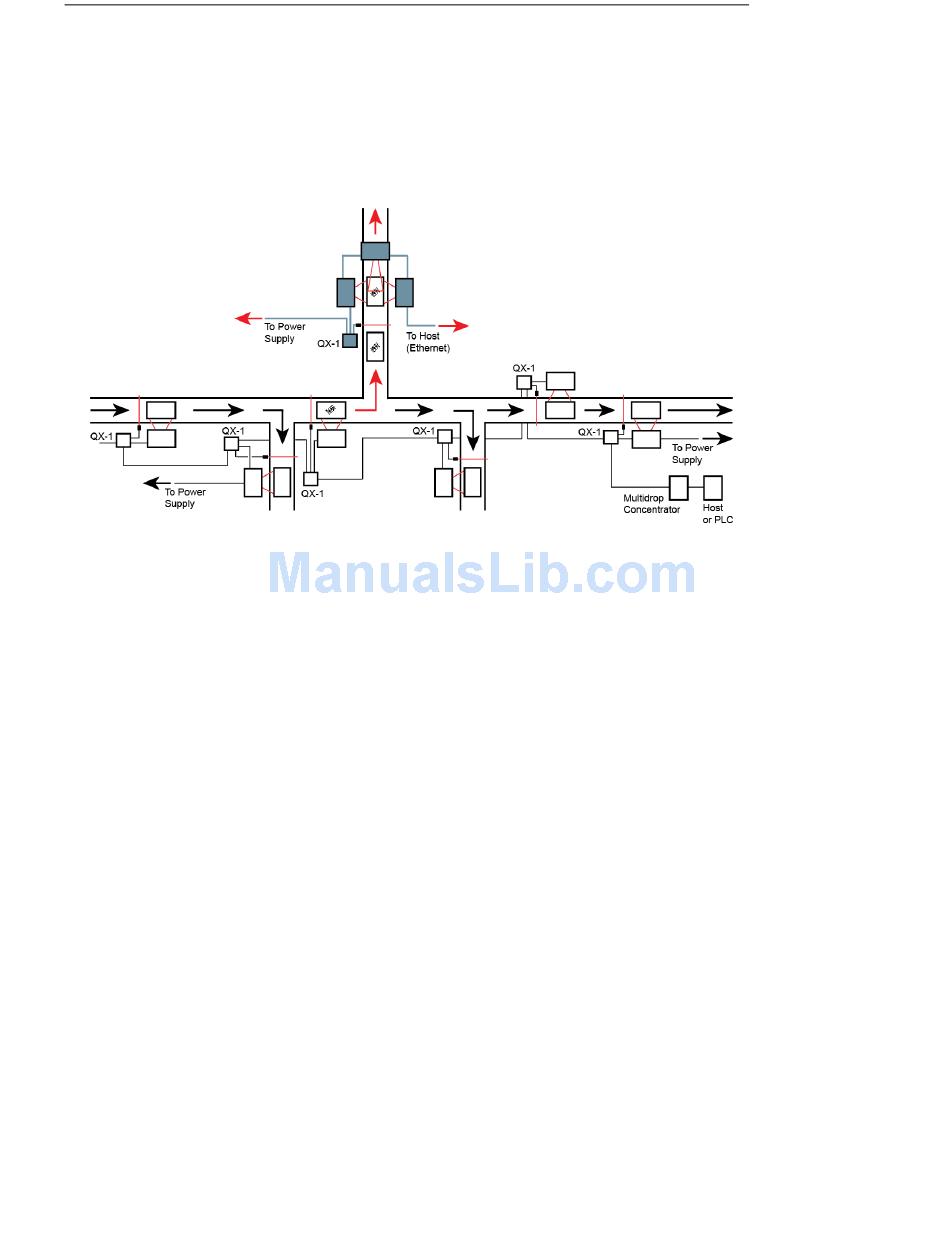

The highlighted areas below demonstrate how an Ethernet daisy chain can be arranged.
Ethernet-enabled imagers can also be set up in standalone configurations, or multiple
Ethernet-enabled imagers along a production or packaging line can be connected to Ethernet.
3-13
QX Hawk Industrial Imager User Manual
