Summary of Contents for Microscan Vision MINI

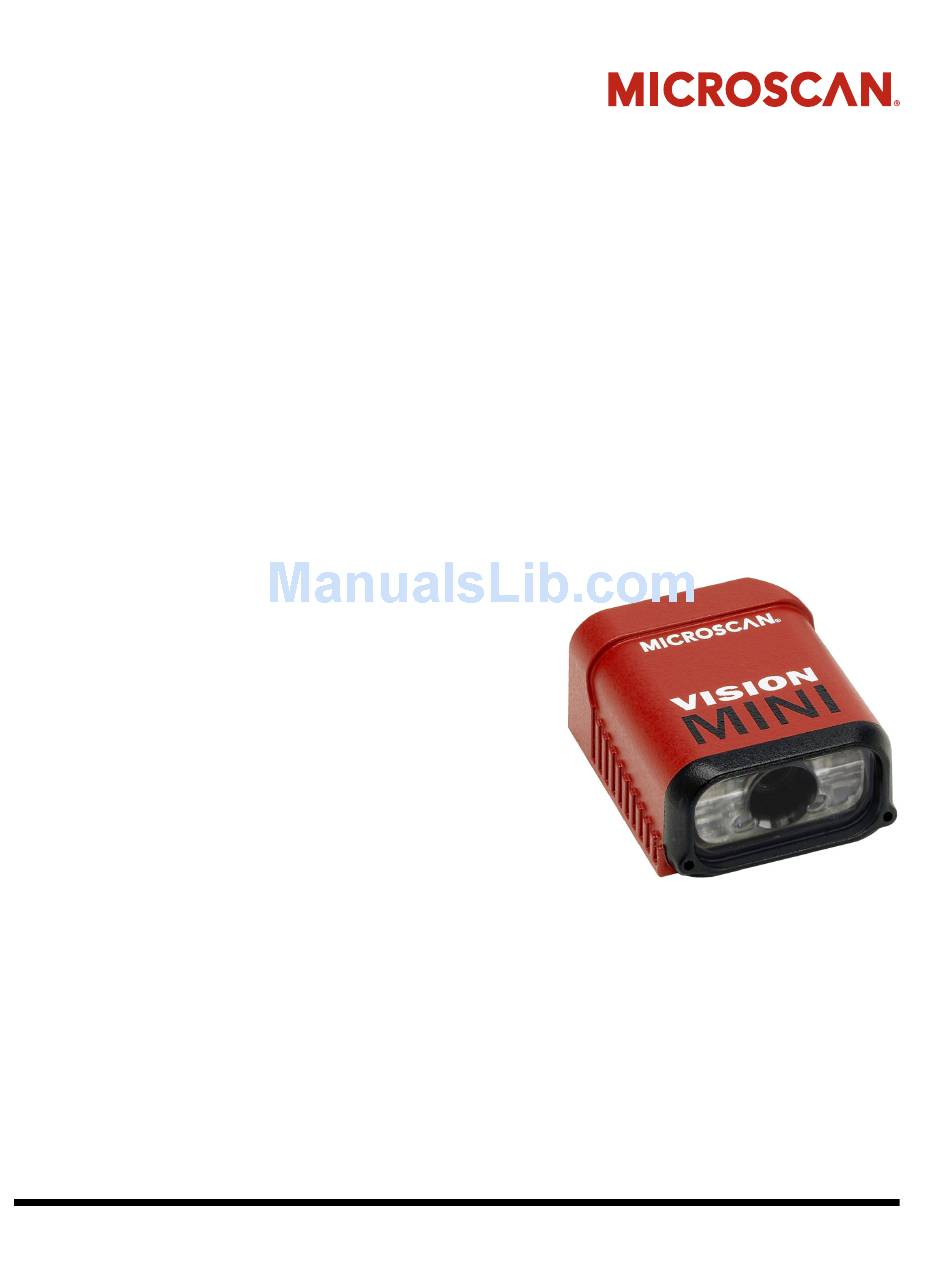

- Page 1 Vision MINI Smart Camera Guide 83-016300-02 Rev B...
- Page 2 All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Microscan manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Microscan.
-
Page 3: Table Of Contents
Vision MINI Smart Camera Models 1-4 Part Number Structure 1-4 CHAPTER 2 System Components 2-1 Hardware Components 2-1 Important Label Information 2-5 Mounting and Wiring the Vision MINI Smart Camera 2-5 Status Indicators 2-10 AutoVISION Button 2-11 CHAPTER 3 Optics and Lighting 3-1 Optics 3-2... - Page 4 61-000208-01 USB Type A to USB Type B Plug Cable B-2 61-000105-01 Host Cable, MS-Connect 210 to Host, Stripped to 9-Pin Socket B-3 61-000196-02 Vision MINI USB / I/O Cable (Attached) B-4 61-300026-03 Communication Cable, DB25 Plug to DB9 Socket B-6 97-000002-02 Power Supply, 90-254 VAC, +5VDC B-7...
-
Page 5: Preface
Preface Welcome! PREFACE Purpose of This Manual This manual contains detailed information about the Vision MINI Smart Camera. Manual Conventions The following typographical conventions are used throughout this manual. • Items emphasizing important information are bolded. • Menu selections, menu items and entries in screen images are indicated as: Run (triggered), Modify..., etc. - Page 6 Preface Vision MINI Smart Camera Guide...
-
Page 7: Introduction
Introduction CHAPTER 1 Vision MINI Smart Camera FIGURE 1–1. Vision MINI Smart Camera Guide... -
Page 8: Product Summary
The lightweight and durable magnesium alloy case weighs less than 2 ounces. Pressing the AutoVISION button at the back of the Vision MINI enables real time dynamic autofocus. When an object is centered in the field of view and the AutoVISION button is pressed, the camera automatically adjusts focal distance and sets internal parameters to optimize image captures. -
Page 9: Applications
Smart Camera, please take a moment to confirm that the following items are available: • Vision MINI Smart Camera — Your package contains one of the available models listed in Table 1–1. • USB Type A to USB Type B Cable •... -
Page 10: Vision Mini Smart Camera Models
Vision MINI Smart Camera Model GMV-6300-2100G Vision MINI Smart Camera, USB, SD, WVGA, Built-In Light, AutoVISION GMV-6300-2102G Vision MINI Smart Camera, USB, SD, WVGA, Built-In Light, AutoVISION + Visionscape GMV-6300-2110G Vision MINI Smart Camera, USB, SD, SXGA, Built-In Light, AutoVISION GMV-6300-2112G... -
Page 11: System Components
Cameras GMV-6300-2100G Vision MINI Smart Camera, USB, SD, WVGA, Built-In Light, AutoVISION GMV-6300-2102G Vision MINI Smart Camera, USB, SD, WVGA, Built-In Light, AutoVISION + Visionscape GMV-6300-2110G Vision MINI Smart Camera, USB, SD, SXGA, Built-In Light, AutoVISION GMV-6300-2112G Vision MINI Smart Camera, USB, SD, SXGA, Built-In Light, AutoVISION + Visionscape... - Page 12 Photo Sensor, Visible, NPN, Light On, MS-Connect 210 Configuration 99-000019-01 Photo Sensor, Visible, NPN, Light On, USB Configuration Documentation Microscan Tools Drive (Software, User’s Manuals, Quick Start Guides, Configuration 37-000010-01 Guides, links to other documents on Microscan website Vision MINI Smart Camera Guide...
- Page 13 Hardware Components Front Figure 2–1 shows the front of the Vision MINI Smart Camera. Front FIGURE 2–1. Base Figure 2–2 shows the base of the Vision MINI Smart Camera. Base FIGURE 2–2. Vision MINI Smart Camera Guide...
- Page 14 Chapter System Components Back Figure 2-3 shows the back of the Vision MINI Smart Camera. Back FIGURE 2–3. AutoVISION Button USB / I/O cable Status Indicators (TRIG, PASS, (attached) FAIL, MODE, LINK/ACT, PWR) Vision MINI Smart Camera Guide...
-
Page 15: Important Label Information
Each Vision MINI Smart Camera has its own label, which contains important information about that camera. • P/N – The Microscan part number of your Vision MINI Smart Camera. • S/N — The serial number of your Vision MINI Smart Camera. - Page 16 Chapter System Components Direct Input / Output Diagrams Vision MINI Smart Camera Guide...
- Page 17 Mounting and Wiring the Vision MINI Smart Camera Isolated Trigger Input with IC-332 Vision MINI Smart Camera Guide...
- Page 18 Chapter System Components New Master Input with IC-332 Vision MINI Smart Camera Guide...
-
Page 19: Power Requirements
Mounting and Wiring the Vision MINI Smart Camera Power Requirements Refer to Table 2-3 when determining the power supply requirements for your camera. Camera Power Requirements TABLE 2–3. Component 5VDC Vision MINI Smart Camera WVGA 5VDC +/– 5%, 200 mV p-p max. -
Page 20: Status Indicators
Chapter System Components Status Indicators The back of the Vision MINI Smart Camera has multiple LEDs that indicate different trigger, inspection, camera, communication, and power states. Trigger Status Inspection Status Camera Status Communication Status Power Status On Steady Continuous Trigger... -
Page 21: Autovision Button
This overrides any other targeting modes that have been configured. 2nd Position: Auto Calibration The second AutoVISION Button position starts the Auto Calibration process, which selects the appropriate photometry and focus settings for the camera. The selected values are then saved for power-on. Vision MINI Smart Camera Guide 2-11... - Page 22 Chapter System Components 2-12 Vision MINI Smart Camera Guide...
-
Page 23: Optics And Lighting
Optics and Lighting CHAPTER 3 This section describes the optical and illumination characteristics of the Vision MINI Smart Camera. Vision MINI Smart Camera Guide... -
Page 24: Optics
Chapter Optics and Lighting Optics The monochrome and color versions of the Vision MINI Smart Camera have a built-in CMOS sensor, available in Standard Density or High Density (2.5 mm). Optics Specifications Part Number GMV-6300- GMV-6300- GMV-6300- GMV-6300- GMV-6300- GMV-6300-... - Page 25 QXGA (2048 x 1536) Field of View Standard Density High Density Working Distance Horizontal FOV Vertical FOV Working Distance Horizontal FOV Vertical FOV 2.165 1.749 1.264 0.948 3.180 2.545 1.850 1.388 4.195 3.342 2.436 1.827 5.210 4.138 3.022 2.267 Vision MINI Smart Camera Guide...
-
Page 26: Illumination
Chapter Optics and Lighting Illumination The Vision MINI Smart Camera has built-in lighting (red LEDs). The LEDs can be configured to operate in multiple modes – Continuous, Strobe, and Off. Lighting Specifications Part Number GMV-6300- GMV-6300- GMV-6300- GMV-6300- GMV-6300- GMV-6300-... -
Page 27: Connector Pinouts
Connector Pinouts APPENDIX A This section contains information about the Vision MINI Smart Camera’s USB and I/O connectors. Vision MINI Smart Camera Guide... -
Page 28: Vision Mini Smart Camera Connectors
Appendix Connector Pinouts Vision MINI Smart Camera Connectors USB and I/O Cable Figure A–1 shows the location of the USB and I/O cable. USB and I/O Cable FIGURE A–1. USB / I/O Cable (attached) TABLE A–1. and TABLE A-2. describe the USB and I/O cable signals. - Page 29 Vision MINI Smart Camera Connectors Figure A-2 shows the pinout of the 15-pin D-sub Socket. 15-pin D-sub Socket FIGURE A–2. USB and I/O Cable Pin Assignments (USB Type B Socket) TABLE A–2. Function Vbus (5V) D– Ground Figure A-3 shows the pinout of the USB Type B Socket.
- Page 30 Appendix Connector Pinouts Vision MINI Smart Camera Guide...
-
Page 31: Cable Specifications
Cable Specifications APPENDIX B This section contains information about Vision MINI Smart Camera cables. Note: Cable specifications are published for information only. Microscan does not guarantee the performance or quality of cables provided by other suppliers. Cable Part Numbers and Descriptions TABLE B–1. -
Page 32: 61-000208-01 Usb Type A To Usb Type B Plug Cable
USB cable. Figure B-1 shows the 61-000208-01 USB Type A to USB Type B Plug Cable. USB Type A to USB Type B Plug Cable FIGURE B–1. USB Type B Plug USB Type A Ferrite Bead Vision MINI Smart Camera Guide... -
Page 33: Socket
61-000105-01 Schematic 9-Pin D-sub Socket Table B-2 describes the signals for the 61-000105-01 Host Cable, MS-Connect 210 to Host. Host Cable, MS-Connect 210 to Host Pin Assignments TABLE B–2. Function TX 232 RX 232 Signal Ground Vision MINI Smart Camera Guide... -
Page 34: 61-000196-02 Vision Mini Usb / I/O Cable (Attached
Cable Specifications 61-000196-02 Vision MINI USB / I/O Cable (Attached) The 61-000196-02 Vision MINI USB / I/O Cable is attached to the camera. It is a shielded cable in a “pigtail” configuration with a USB Type B socket and an RS-232 15-pin D-sub socket. - Page 35 61-000196-02 Vision MINI USB / I/O Cable (Attached) Tables B-3 and B-4 describe the signals for the 61-000196-02 Vision MINI USB / I/O Cable. USB and I/O Cable Pin Assignments (15-pin D-sub Socket) TABLE B–3. Host RS-232 In/Out Power +5VDC...
-
Page 36: 61-300026-03 Communication Cable, Db25 Plug To Db9 Socket
Cable, DB25 Plug. Communication Cable, DB25 Plug Pin Assignments TABLE B–5. Function Ground Table B-6 describes the signals for the 61-300026-03 Communication Cable, DB9 Socket. Communication Cable, DB9 Socket Pin Assignments TABLE B–6. Function Ground Vision MINI Smart Camera Guide... -
Page 37: 97-000002-02 Power Supply, 90-254 Vac, +5Vdc
Power Supply, 90-254 VAC, +5VDC FIGURE B–5. Table B-7 describes the signals for the 97-000002-02 Power Supply, 90-254 VAC, +5VDC. Power Supply, 90-254 VAC, +5VDC Pin Assignments TABLE B–7. Function Ground (Black) Shield (Bare) +5VDC (White) Vision MINI Smart Camera Guide... -
Page 38: 97-100004-15 Power Supply, 90-254 Vac, 24Vdc, Usa/Euro Plug
3-Pin Micro-Change Connector Table B-8 describes the signals for the 97-100004-15 Power Supply, 90-254 VAC, 24VDC, USA/Euro Plug. Power Supply, 90-254 VAC, 24VDC, USA/Euro Plug Pin Assignments TABLE B–8. Function Ground (Black) Shield (Bare) +24VDC (White) Vision MINI Smart Camera Guide... -
Page 39: 99-000017-01 Photo Sensor, Visible, Npn, Dark On
Photo Sensor, Visible, NPN, Dark On FIGURE B–7. 99-000017-01 Schematic Table B-9 describes the signals for the 99-000017-01 Photo Sensor, Visible, NPN, Dark On. Photo Sensor, Visible, NPN, Dark On Pin Assignments TABLE B–9. Function +10-28V Ground +10-28V Vision MINI Smart Camera Guide... - Page 40 Table B-10 describes the signals for the 99-000017-02 Photo Sensor, Visible, NPN, Light On, MS-Connect 210 Configuration. Photo Sensor, Visible, NPN, Light On, MS-Connect 210 TABLE B–10. Configuration Pin Assignments Function +10-28V Ground +10-28V B-10 Vision MINI Smart Camera Guide...
-
Page 41: Configuration
FIGURE B–9. 99-000019-01 Schematic Table B-11 describes the signals for the 99-000019-01 Photo Sensor, Visible, NPN, Light On, USB Configuration. Photo Sensor, Visible, NPN, Light On, USB Configuration Pin TABLE B–11. Assignments Function Ground Vision MINI Smart Camera Guide B-11... -
Page 42: Appendix B Cable Specifications B
Appendix Cable Specifications B-12 Vision MINI Smart Camera Guide... -
Page 43: General Specifications
General Specifications APPENDIX C This section contains specifications and dimensions for the Vision MINI Smart Camera. General Specifications TABLE C–1. Part Number GMV-6300- GMV-6300- GMV-6300- GMV-6300- GMV-6300- GMV-6300- 2110G 2112G 2210G 2212G 2172G 2272G Sensor SXGA (1280 x 1024) CMOS... - Page 44 Up to 90% (non-condensing) Enclosure IP54 (category 2) Compliance FCC, UL/cUL, CE (General Immunity for Light Industry: EN 55024 ITE Immunity Standard; Radiated and Conducted Emissions of ITE Equipment: EN 55022 ITE Disturbances), CB, RoHS/WEEE Vision MINI Smart Camera Guide...
-
Page 45: Dimensions
Dimensions Dimensions Note: Nominal dimensions shown. Typical tolerances apply. Vision MINI Smart Camera Guide... -
Page 46: Field Of View And Working Distance
Appendix General Specifications Field of View and Working Distance WVGA/SXGA QXGA Vision MINI Smart Camera Guide...
