Parameters

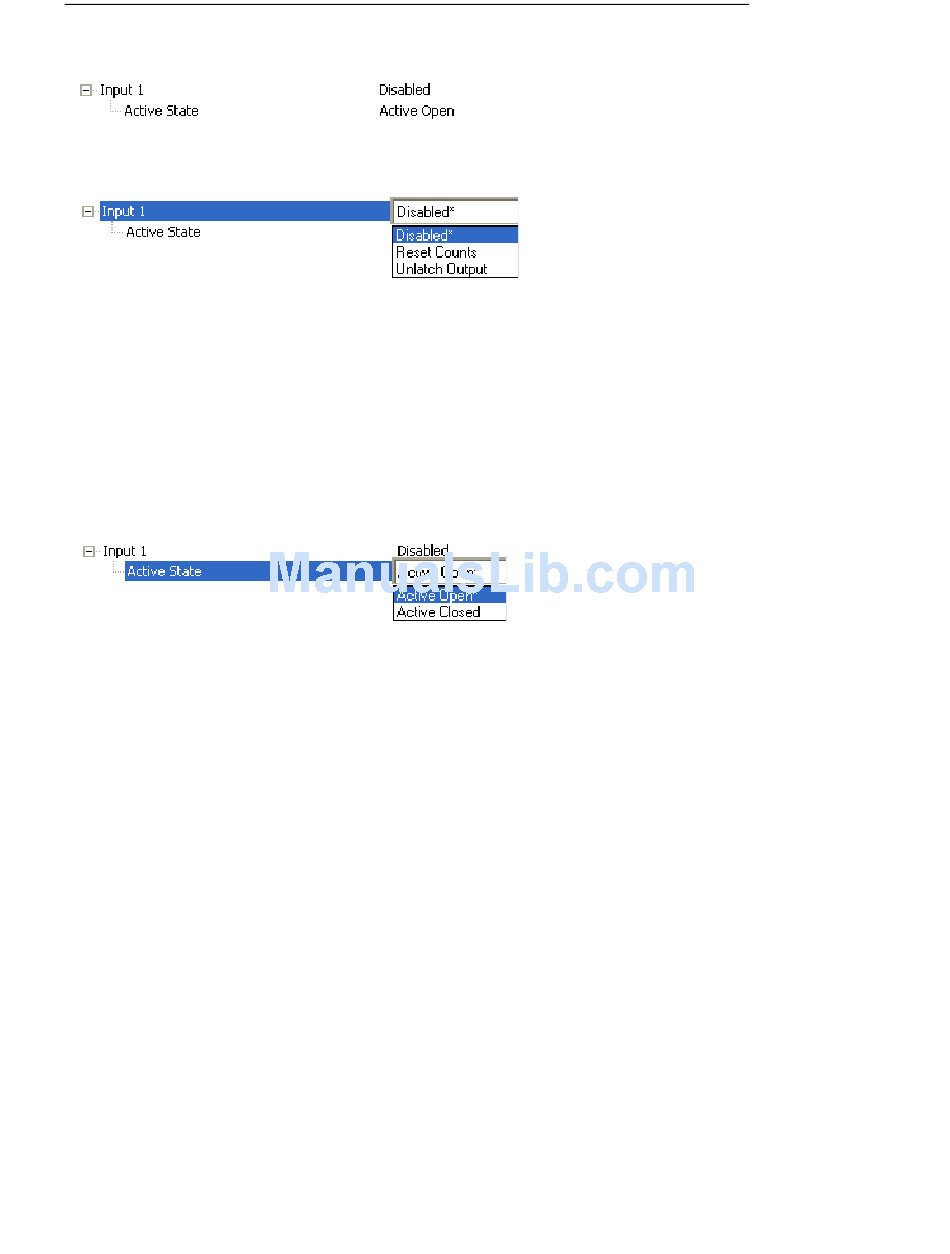

Input 1
Input Mode
Determines the function of the Input pin.
Disabled
When set to Disabled, the Input pin has no impact on operation.
Reset Counts
When set to Reset Counts, a transition to the active state of the Input will cause the
imager to reset the internal counters.
Unlatch Output
This setting is used in combination with any of the three outputs in Latch Mode 1 (Unlatch
Input # 1 Pin). A transition to the active state will clear any of the three outputs that were
previously latched.
Active State
Active Open
Input function is activated when input state is de-energized.
Active Closed
Input function is activated when input state is energized.
