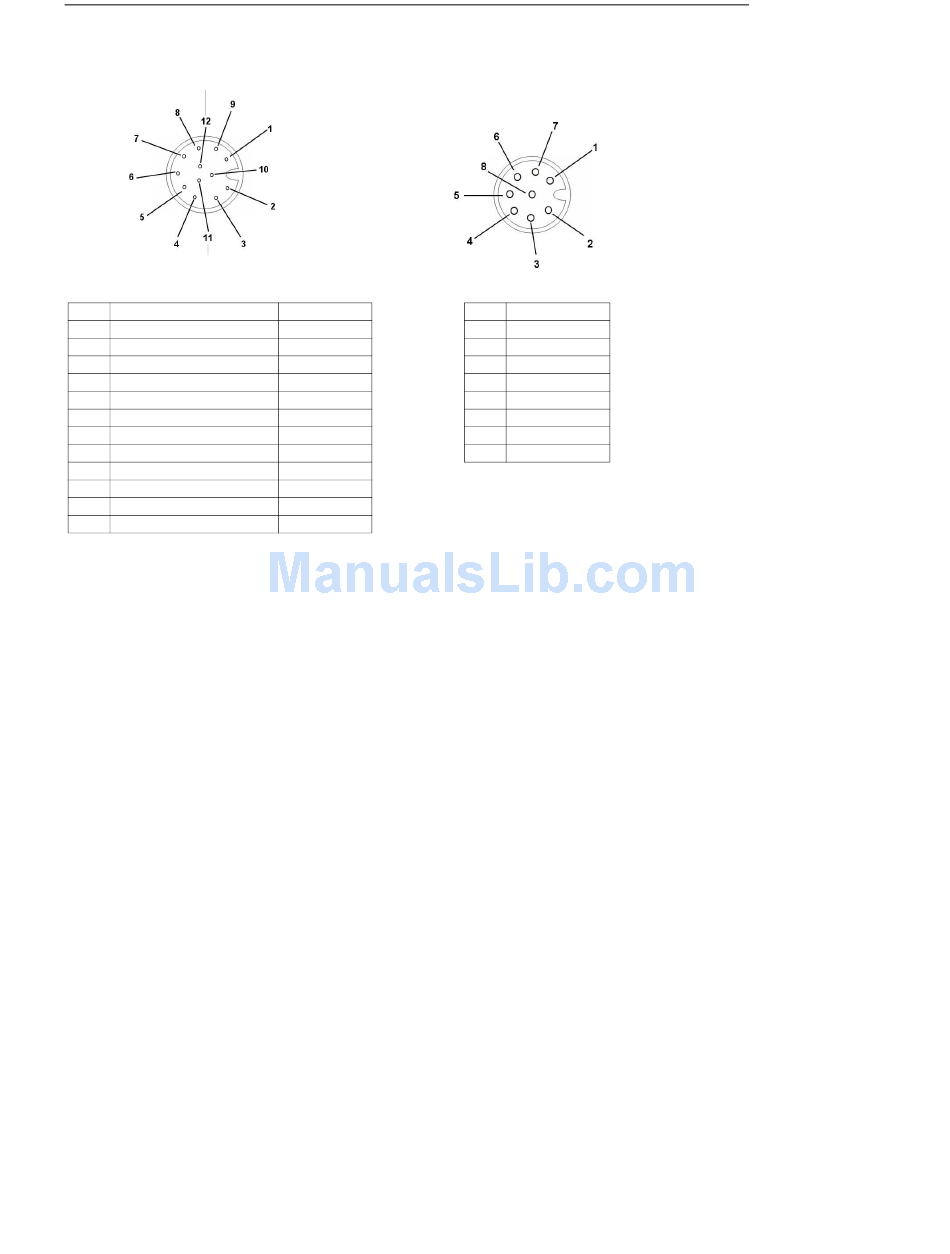

QX Hawk and QX-1 Connectors and Pinouts (continued)
RS-422/485 RxD (–)
Input RS-232 TxD/
Common RS-232 RTS
Ground
RS-422/485
RxD (+)
RS-422/485
TxD (+)
Input 1
RS-422/485 TxD (–)
B (Serial) M12 12-pin Socket
Pin Function
1 Trigger
2 Power
3 Terminated
4 Input 1
5 Port 3 422/485 TxD (+)
6 Port 3 422/485 RxD (+)
7 Ground
8 Input Common
9 Port 2 TxD/Port 1 RTS
10 Port 2 RxD/Port 1 CTS
11 Port 3 422/485 TxD (–)
12 Port 3 422/485 RxD (–)
QX Hawk Industrial Imager User Manual
Trigger
RS-232 RxD/
RS-232 CTS
Power
Terminated
Wire Color
White
Brown
Green
Yellow
Gray
Pink
Blue
Red
Black
Violet
Gray/Pink
Red/Blue
Hardware Installation
Terminated
TX (+)
Terminated
RX (–)
RX (+)
Terminated
TX (–)
Terminated
B (Ethernet) M12 8-pin Socket
Pin Function
1 Terminated
2 Terminated
3 Terminated
4 TX (–)
5 RX (+)
6 TX (+)
7 Terminated
8 RX (–)
