Full Duplex Mode
When Full Duplex Mode is enabled, the following conditions apply:
Symbol Data to Source = Fixed to Disabled
Ambles to Source = Fixed to Disabled
Echo to Source = Fixed to Disabled
Output at End of Read Cycle = Fixed to Disabled
Output at ETX = Fixed to Disabled with user-defined characters. Default character will be
used if this setting is set to Disabled.
Output at Timeout = Fixed to Disabled with user-defined timeout. Default time will be
used if this setting is set to Disabled.

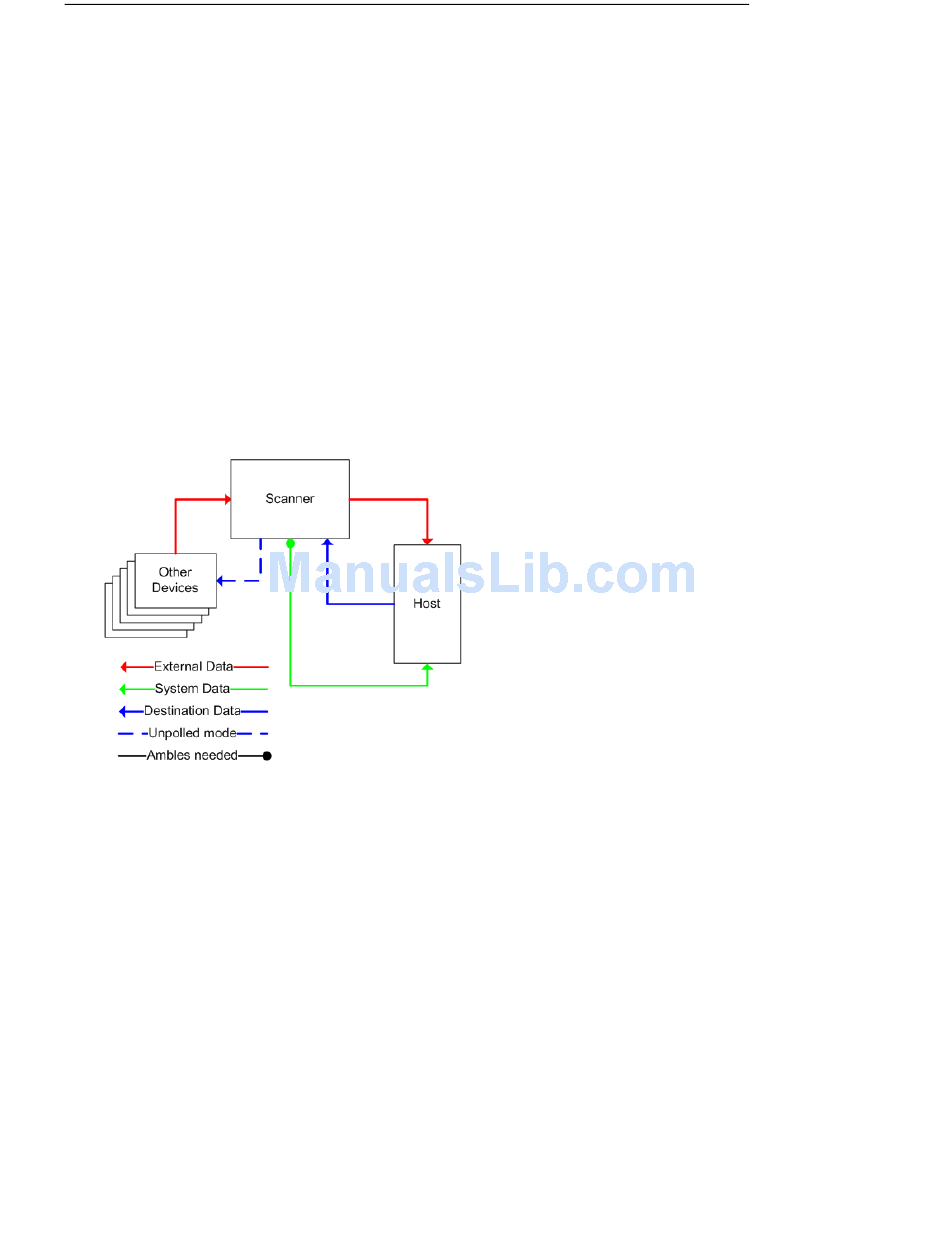

Mode of Operation
Source Port data is not echoed back to itself.
Source Port data is ignored when the Destination Port is in Polling Mode.
Source Port data or symbol data is sent to the Destination Port whenever it is received.
Source Port data is always sent to the Destination Port without a Preamble or Postamble.
Symbol data is not sent to the Source Port.
Destination port data is echoed to the source port in an un-polled mode.
Custom Mode
Custom allows for user-defined communication (Ambles to Source, Echo to Source, Output
at End of Read Cycle, Output at ETX, Output at Timeout).
