Electrical Specifications
Optoisolated Outputs
The imager has optoisolated outputs that can transfer signals from the imager to peripherals.
Outputs can be configured as either NPN or PNP, but NPN and PNP cannot be mixed in a
system, because the output common is shared by all outputs.

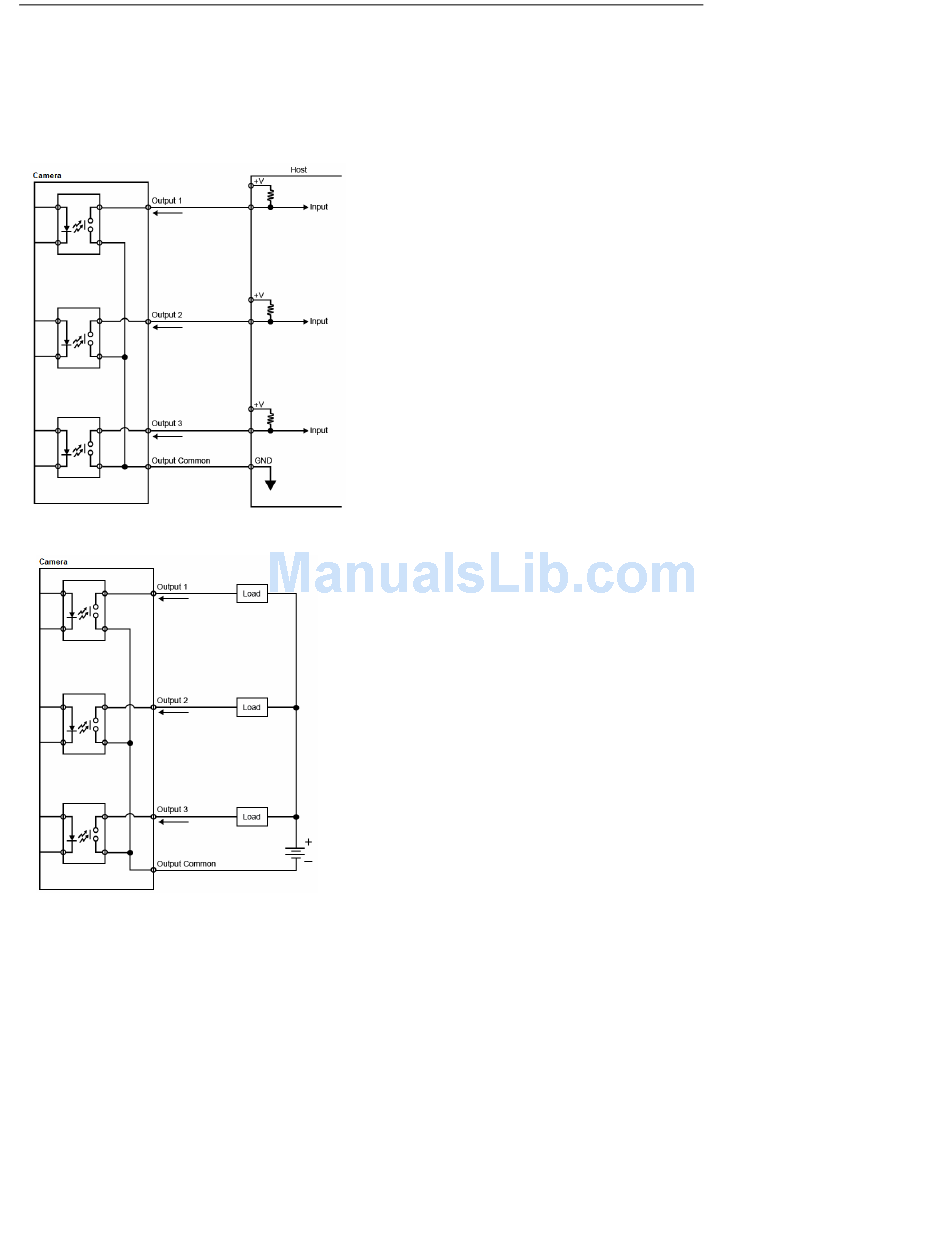

NPN Output for Host Input
NPN Output for External Load
A-14
QX Hawk Industrial Imager User Manual
