Parameters
Row and Column
If the calibration process is successful the Window of Interest will be modified to frame the
symbol plus an addition margin area around the symbol, determined by the "WOI margin"
parameter.
Row
If the calibration process is successful the Window of Interest rows will be modified to
horizontally frame the symbol plus an addition margin determined by the "WOI margin"
parameter.
Column
If the calibration process is successful the Window of Interest columns will be modified to
vertically frame the symbol plus an addition margin determined by the "WOI margin"
parameter.

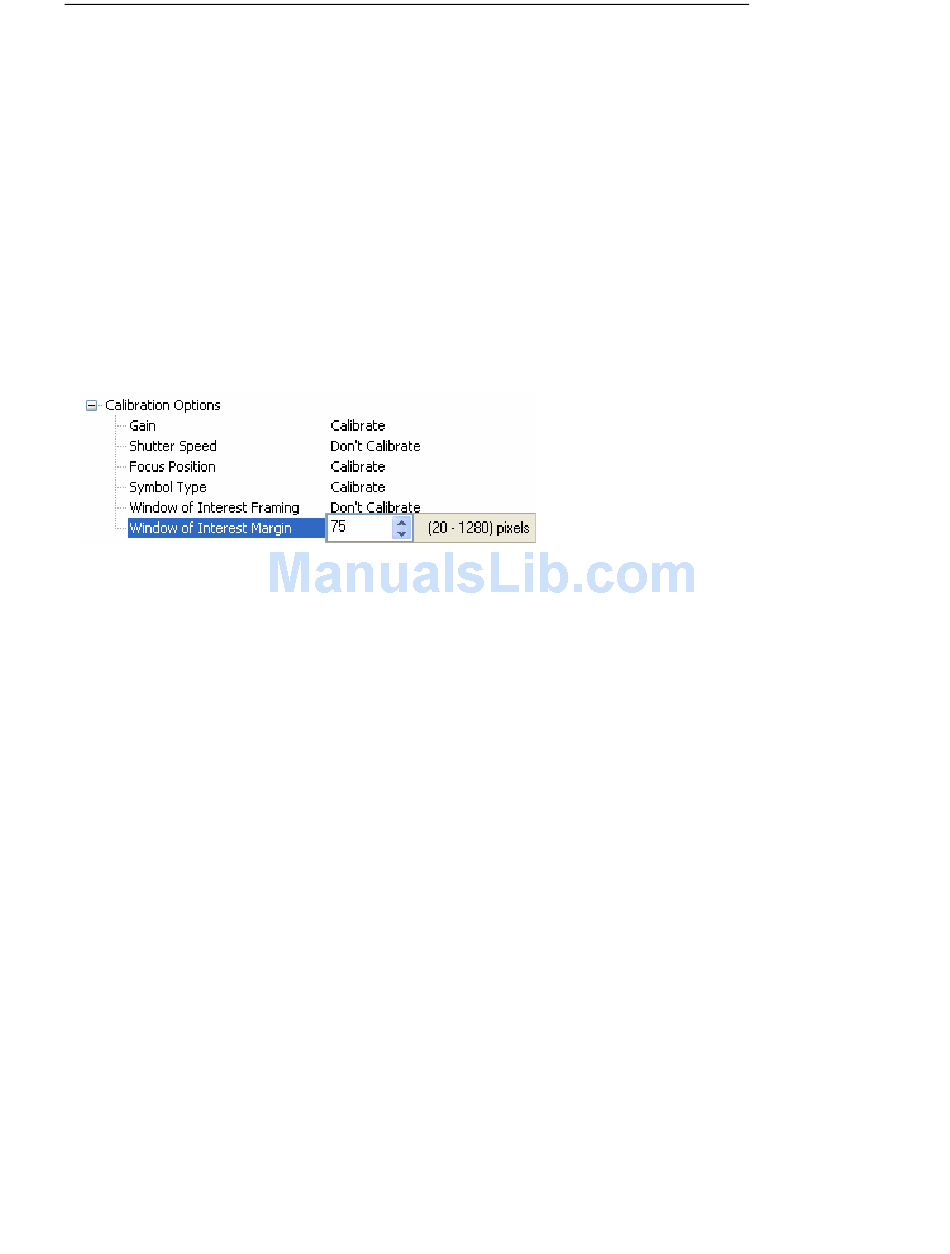

Window of Interest Margin
Sets the margin size that is applied to the calibrated label, and is specified in number of
pixels. If margin causes image to exceed maximum image size, it will be reduced accordingly.
