Flying Lead Cordset Pinouts
Appendix D — Flying Lead Cordset Pinouts
Microscan offers two flying lead cordsets for use in QX Hawk configurations:
61-000166-01 (Plug, Ultra-Lock version) or 61-000166-02 (Plug, Screw-On version)
61-000167-01 (Socket, Ultra-Lock version) or 61-000167-02 (Socket, Screw-On version)

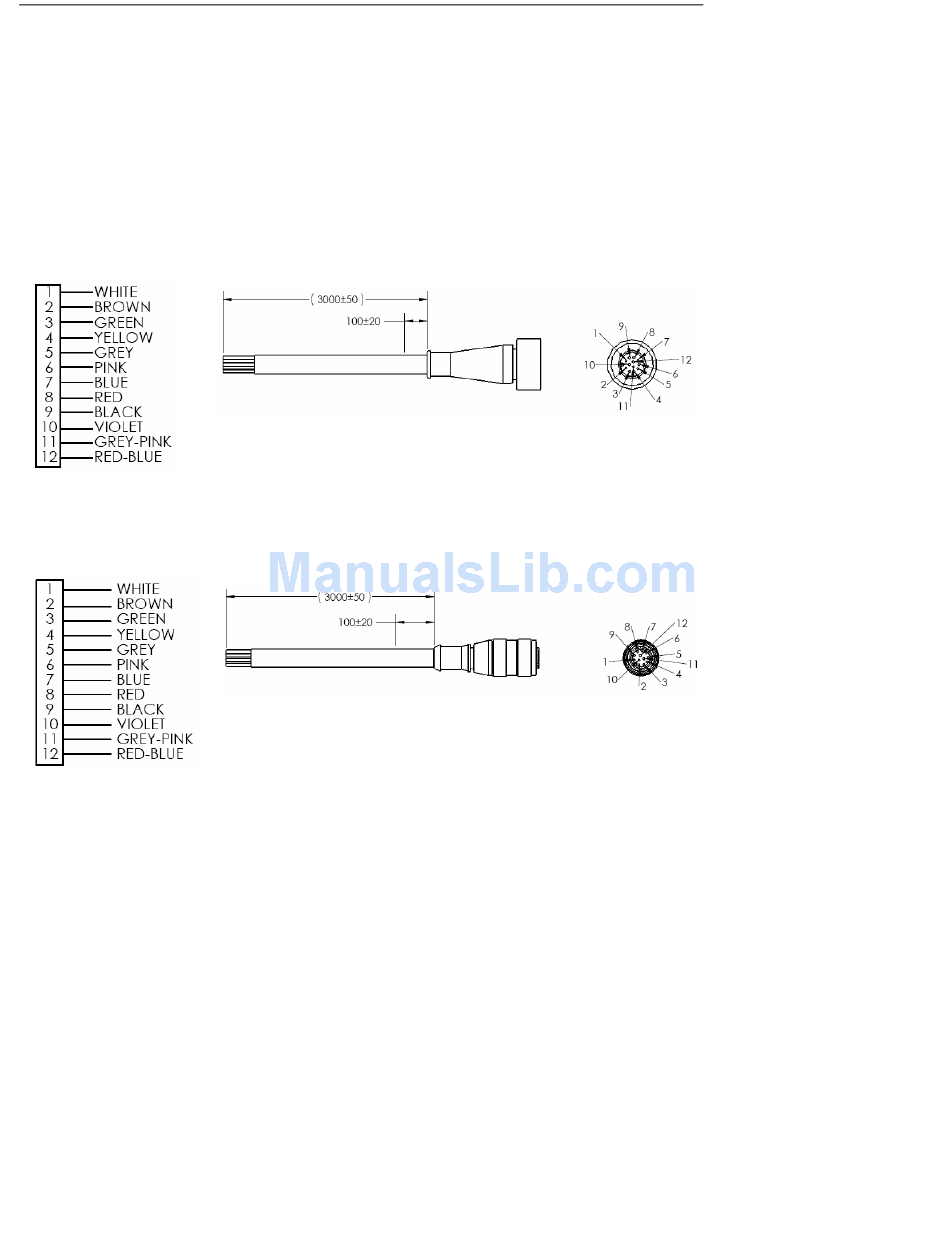

The diagrams below show the correspondence of wire colors to pins.
61-000166-XX – M12 12-Pin Plug to Flying Leads
61-000166-XX connects to QX Hawk Connector B (serial) and QX-1 Connector 2.
61-000167-XX – M12 12-Pin Socket to Flying Leads
61-000167-XX connects to QX Hawk Connector A and QX-1 Connectors 1 and 3.
