Appendices

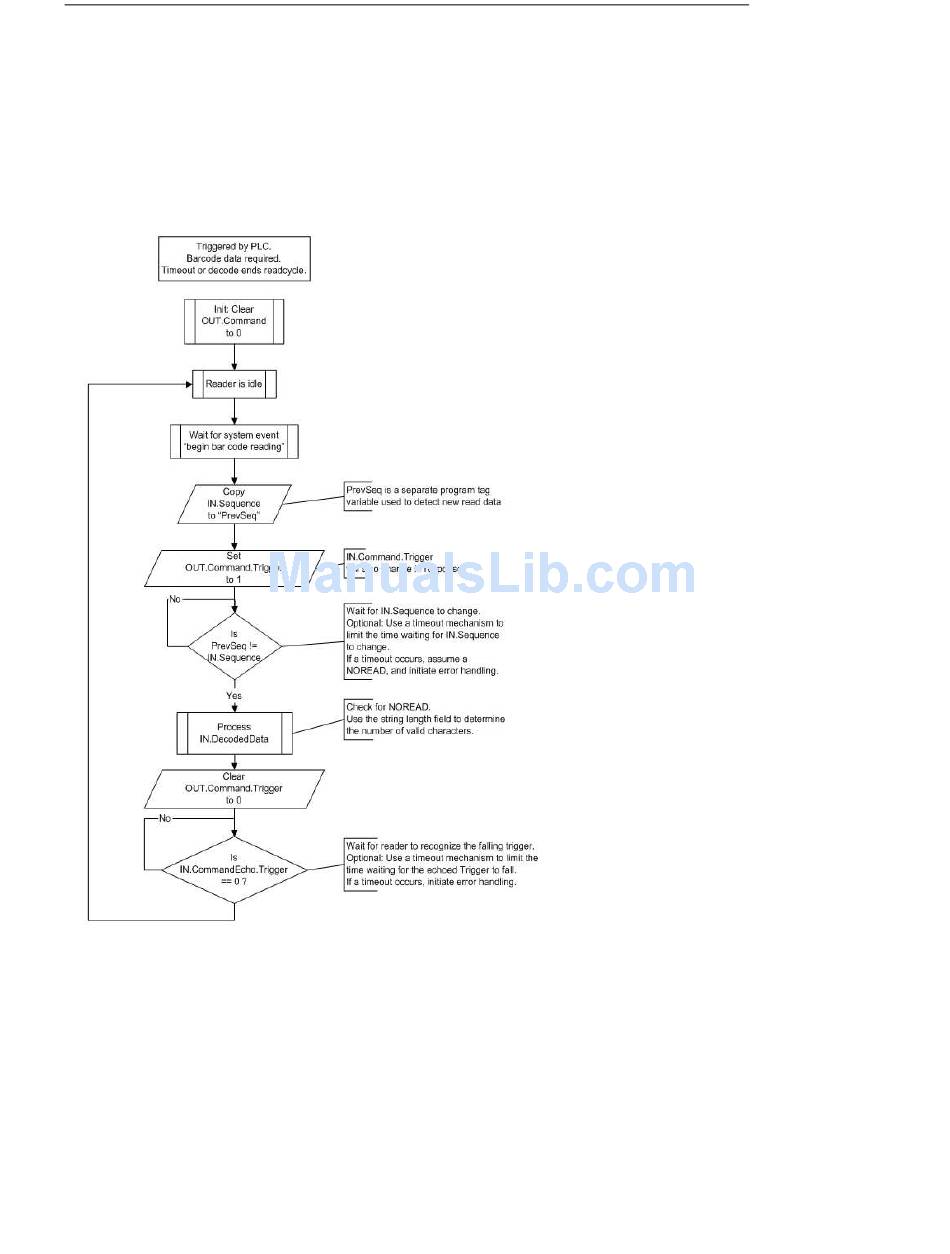

Programming Flow Charts
Triggered by PLC, symbol data required, timeout or decode ends read cycle.
Setup:
Read Cycle Trigger Mode = External Edge or External Level.
Symbol Data Output = Enabled globally and for EtherNet/IP.
When to Output = As Soon As Possible.
End of Read Cycle = Timeout.
No Read message = Enabled.
