EIPScan Setup

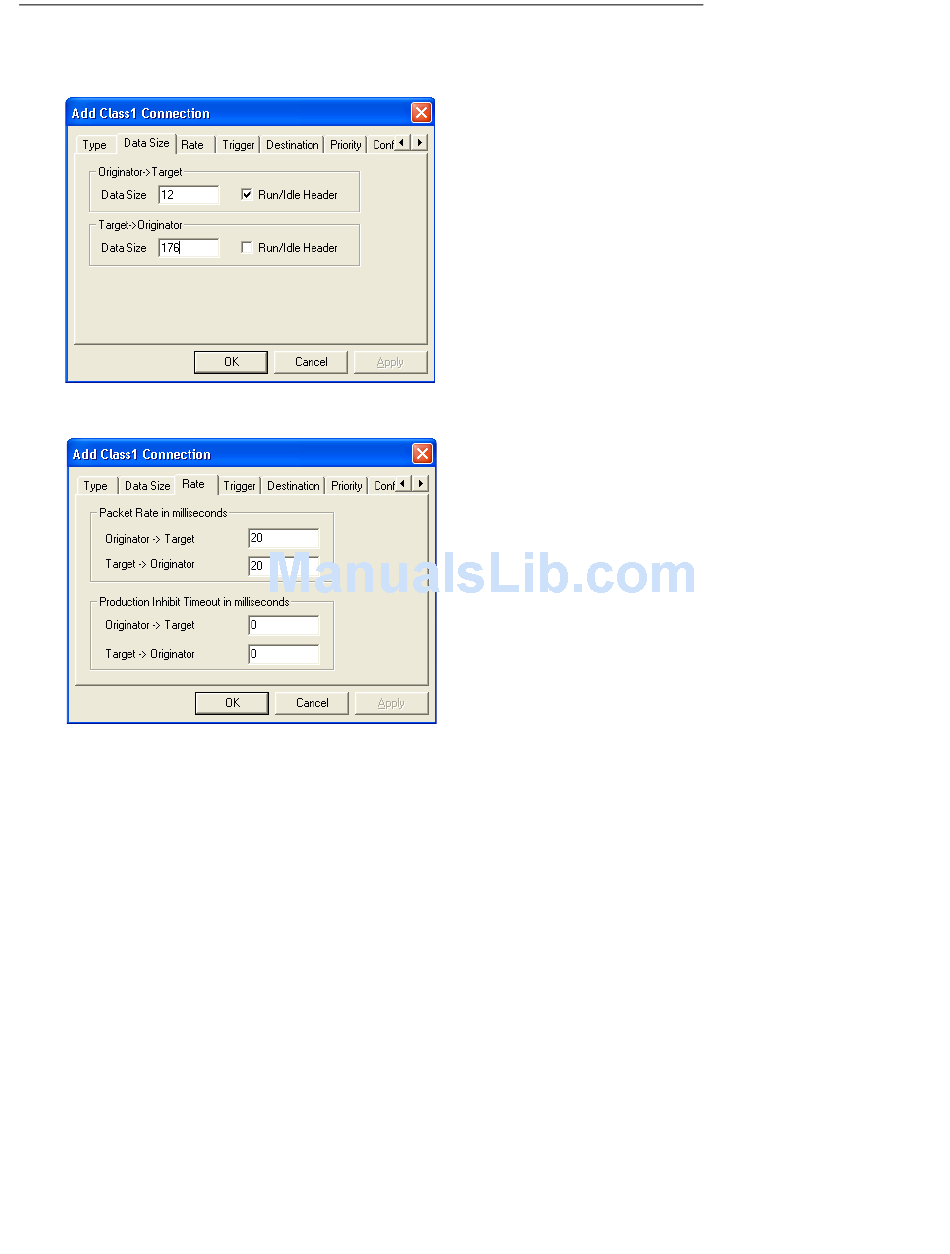

4. When the "Add Class1 Connection" dialog pops up, select "Data Size".
5. Populate "Originator->Target" (OUT) with 12, and "Target->Originator" (Big IN) with 176:
Alternately, "Target->Originator" could be set to 84 for the Small IN assembly.
6. Select "Rate", and set packet rate to 20 milliseconds in both directions:
