Automation Direct C-more EA1-T4CL Hardware User Manual page 80

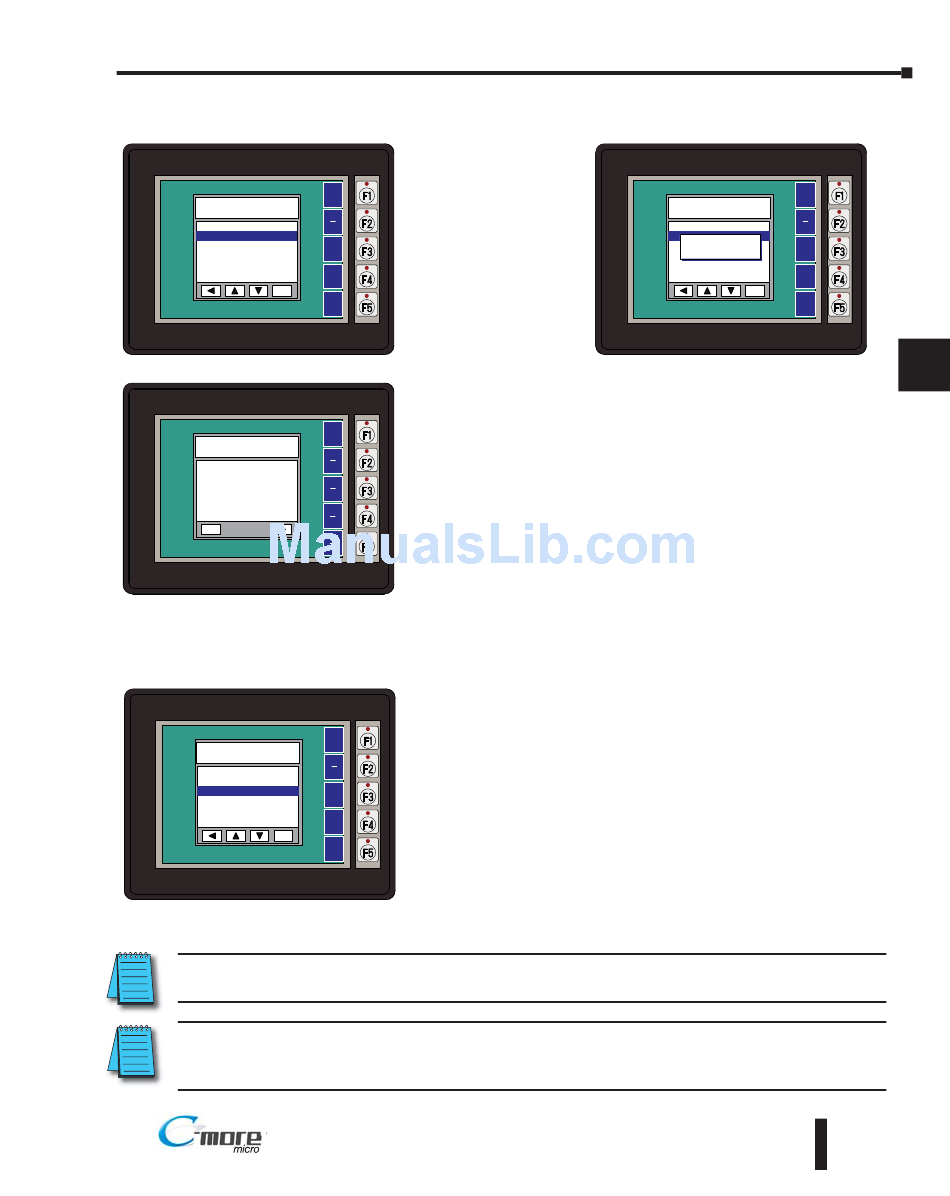

Test Menu – PLC Enquiry Test
TEST MENU
1 Serial Port Loop Back
2 PLC Enquiry Test
3 Buzzer Test
4 Touch Panel Test
5 Display Test
PLC ENQUIRY TEST
DirectLogic K Sequence
Data1 Test Passed
Data2 Test Passed
Data3 Test Passed
Data4 Test Passed
ESC
Test Menu – Buzzer Test
TEST MENU
1 Serial Port Loop Back
2 PLC Enquiry Test
3 Buzzer Test
4 Touch Panel Test
5 Display Test
NOTE: The beeper tone is not selectable. The beeper function can not be turned on or off from this screen,
refer to the Setting menu.
NOTE: When the panel is powered through Port1 from a connected PC, the screen brightness is diminished
because the panel is running in Low-Power Mode. Connect an external 12-24 VDC power source when the
panel is installed in its application for full brightness.
®
With PLC Enquiry
Test highlighted,
BAK
press ENT [F5] to
bring up the screen
shown to the right.
UP
If the PLC is
DWN
connected to the
ENT
ENT panel, press ENT
[F5] to start the test.
Four data tests will
be performed and
indicated as either
Test Passed or Test
Failed as shown on
BAK
this page. The BAK
[F1] key can be
pressed to cancel the
test and/or returned
to the previous
screen.
With Buzzer Test selection highlighted, press ENT [F5] to
run the test on the internal audible beeper. The beeper will
sequence up the scale through eight notes and then start over.
BAK
The BAK [F1] key can be pressed to cancel the test.
UP
DWN
ENT
ENT
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Chapter 5: System Setup Screens
TEST MENU
1 Serial Port Loop Back
2
Connect Panel to
3
PLC
4
5 Display Test
ENT
BAK
UP
DWN
ENT
5
5–15
