Chapter 8: Troubleshooting
No Communications between Panel and PC (Personal Computer) (cont'd)
NOTE: The panel has an internal USB to serial converter at Port1. When the device is properly installed and
the USB programming cable connects the panel to the PLC, the port will be identified as a serial
communications port with an assigned COM port number.

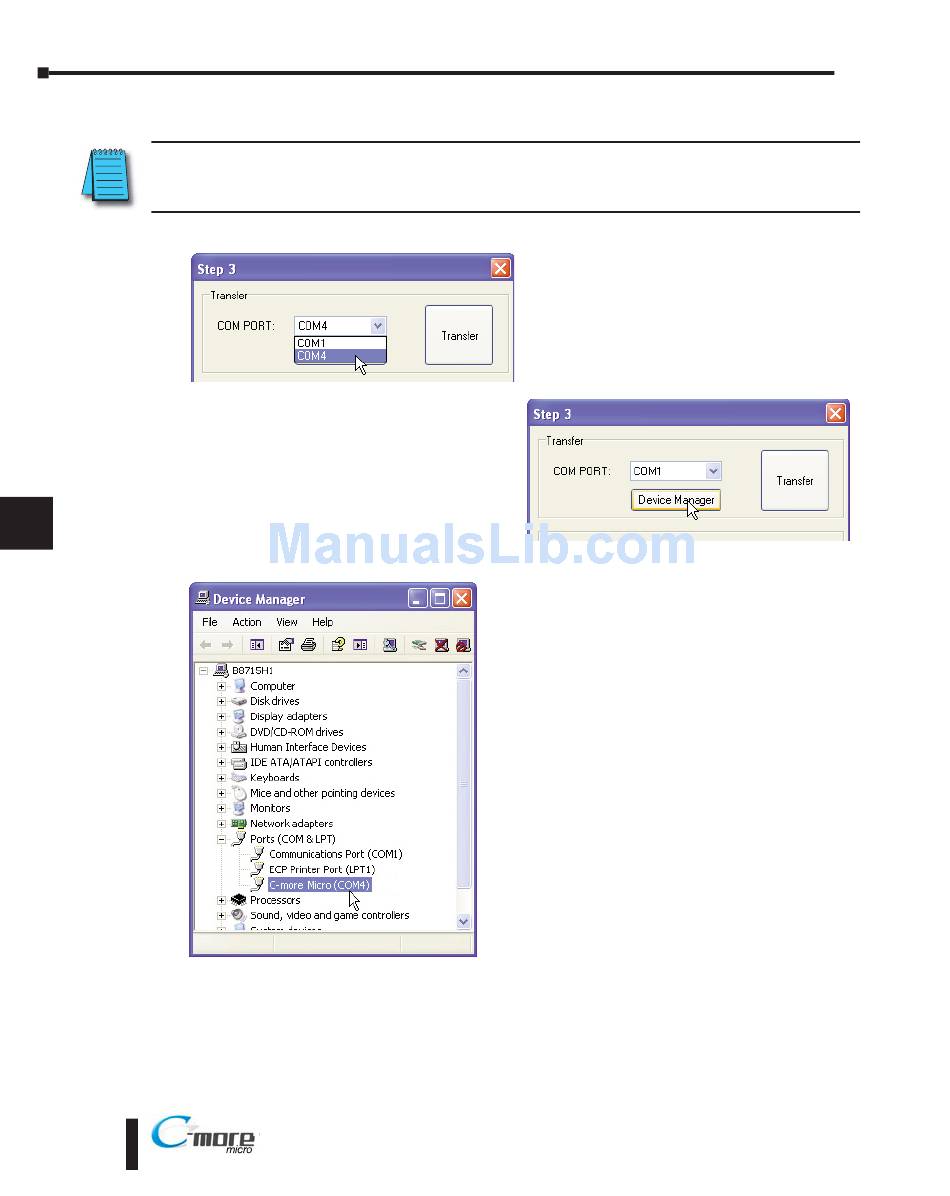

3. Not using the correct COM port assigned to the USB connection - If the C-more Micro-Graphic
If you are unsure which COM port the C-more
Micro-Graphic programming cable is connected
to, click on the Device Manager button. This
will open Windows ® Device Manager.
In the Device Manager window, view the active
ports by clicking the + button beside the Ports
8
(COM & LPT) menu item. The C-more Micro-
Graphic panel uses a USB driver called C-more
Micro.
8–6
® EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
panel is on the setup screen and the cable
connection is correct, then check the PC COM
port setting.
COM4 is the USB port used in this example. If you
cannot find the C-more Micro Comm Port under
Ports (COM & LPT) in Device Manager, the USB
driver may not be correctly installed or the driver has
a problem. Follow these steps to re-install the driver:
1. Uninstall the C-more Micro-Graphic programming
software.
2. Unplug the cable between the PC and the C-more
Micro-Graphic panel.
3. Re-install the C-more Micro-Graphic programming
software. Make sure the install USB driver
checkbox is selected.
4. If you have selected the correct COM port and the
error still occurs, try connecting the programming
cable to a different USB port on the PC and try
again.
5. If the problem persists, call Technical Support at
(770) 844-4200, available from 9:00 A.M. to 6:00
P.M. Eastern Time.
