Chapter 1: Getting Started
Step 10 – Connect C-more Color Micro-Graphic Panel to PLC
Connect the serial communications cable between the C-more Micro-Graphic panel and the
1
PLC. The panel can be connected to the PLC via the panel's built-in 15-pin serial
communications port with either RS-232, RS-422 or RS-485 communications.
Recommended
DC Supply Fuse
750 mA fast acting,
ADC p/n AGC-75

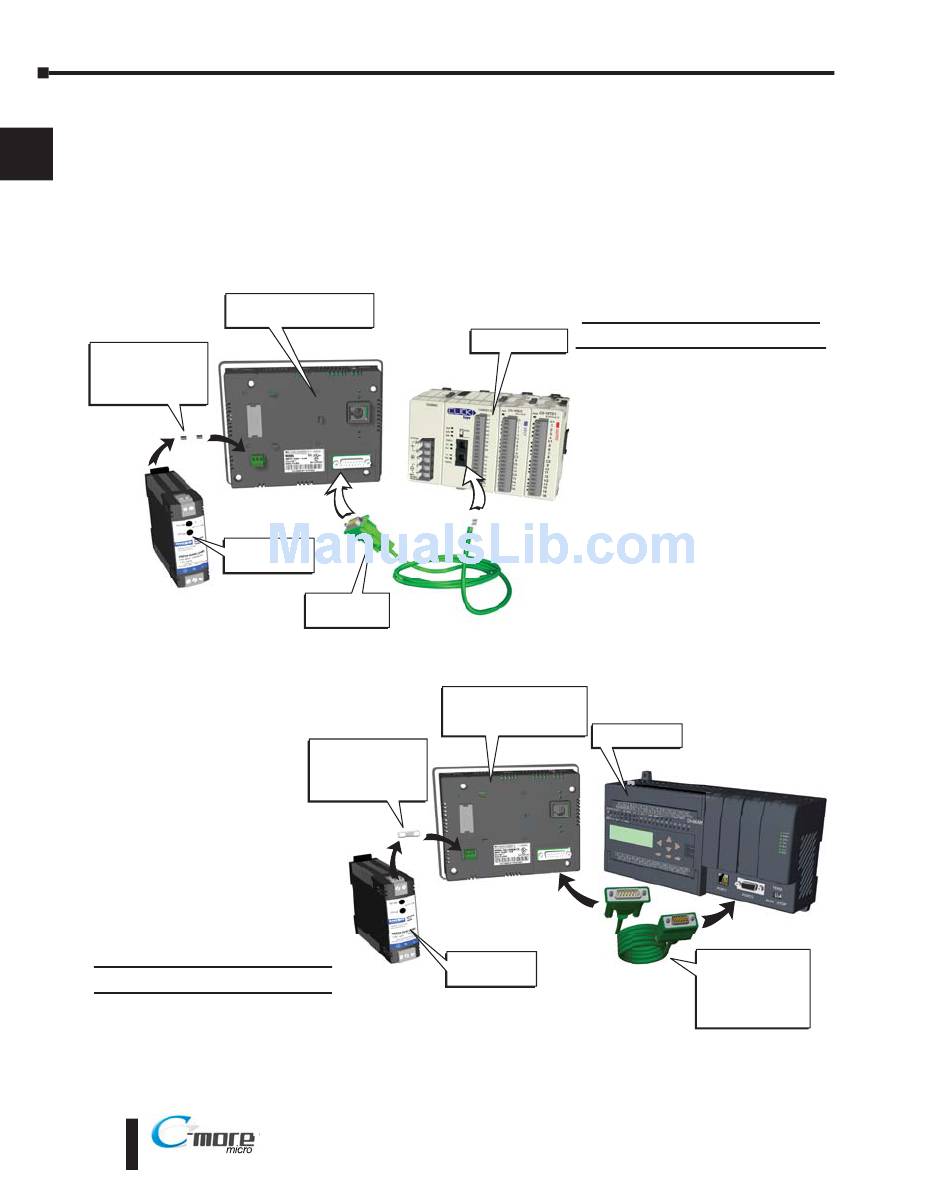

Example of panel's Port 2
connected to a DL06 PLC
1–18
C-more Color
Micro-Graphic Panel
Port 2 Port 2
PSP-24-024S
Power Supply
EA 2CBL
serial cable
Recommended
DC Supply Fuse
750 mA fast acting,
ADC p/n AGC-75
® ®
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Example of panel's Port 2
connected to a CLICK PLC
CLICK PLC
C-more Color
Micro-Graphic
Panel
DL-06 PLC
Port
2
PSP-24-024S
Power Supply
Port
2
C-more to
Direct LOGIC
VGA 15 pin port
serial cable
p/n EA 2CBL 1
