Clear Screen Overlay

Optional clear screen overlays are used to protect C-more Micro-Graphic displays from minor
scratches and wear. Package contains three clear screen overlays.
2.85
[72.5]

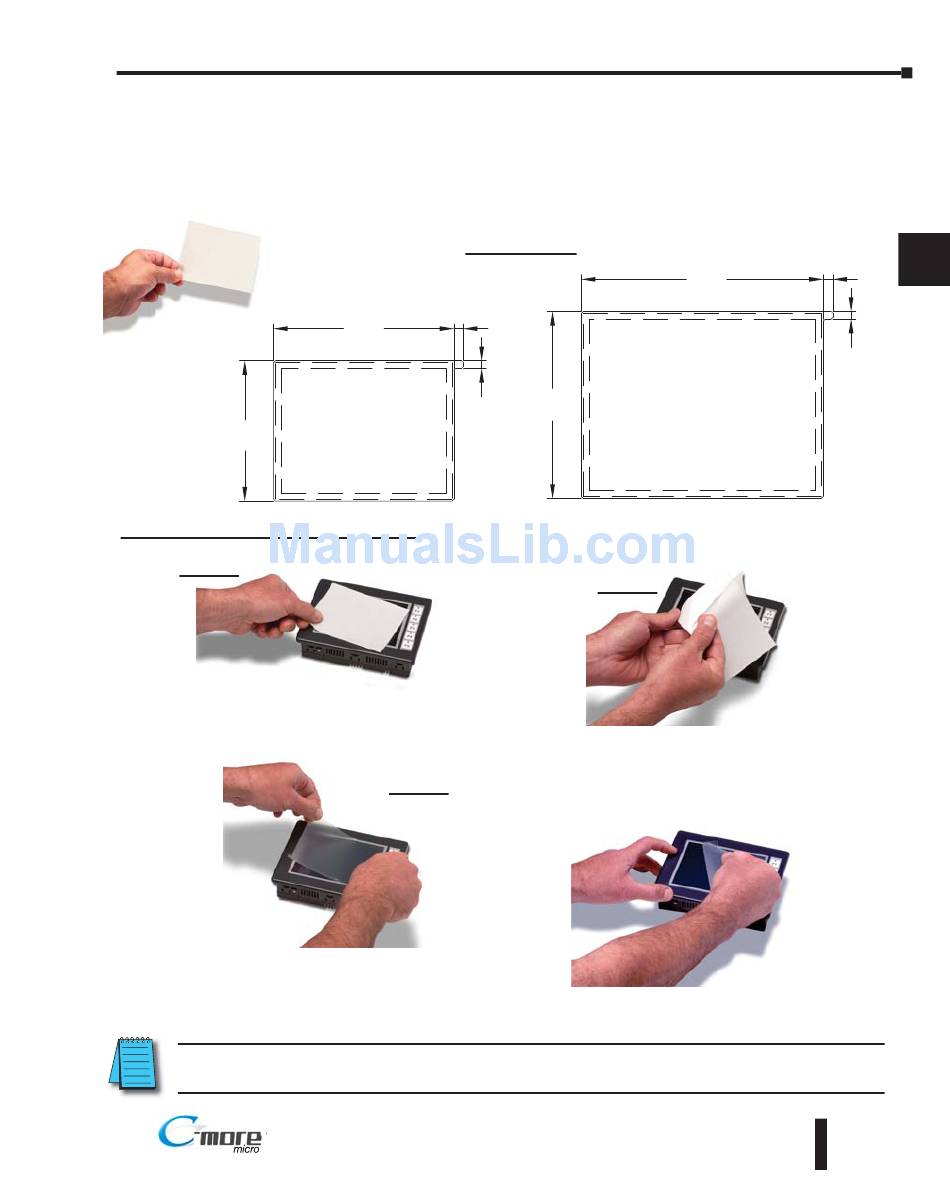

Clear Screen Overlay Installation
Step 1
Remove the overlay from the
Align the overlay with the screen
and press the adhesive firmly
*NOTE: The protective cover ships with a thin protective sheet on the face of the cover that needs to be
carefully removed. If your panel is not clear, the protective sheet may not have been removed.
®
3.66
[93.0]
EA 4 COV2
package
Step 3
into place
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Dimensions
0.197
[5.0]
EA 6 COV2
3.795
0.157
[96.4]
[4.0]
Step 2
Remove the paper backing
from the overlay
Step 4
Remove the protective film*
Chapter 3: Accessories
0.197
4.913
[124.8] [5.0]
0.157
[4.0]
