SETTING
1 Brightness
2 Touch/Key Beep
3 Calibration
4 Clear User Memory
5 Reset to Factory Def

6 Hourglass

7 Rotation
®
The Hourglass
selection listed under
BAK
the Setting menu can
be used to either
NXT
>
>
disable the display of
>
UP
the hourglass icon or
>
DWN
set the amount of
>
ENT
ENT
delay time (0 ms to
1000 ms) desired
before it is displayed.
With Hourglass
highlighted, press
ENT [F5]. The UP
[F3] and DWN [F4]
function keys scroll
through the
selections. Use the
APL [F5] function
key to apply the
selection.

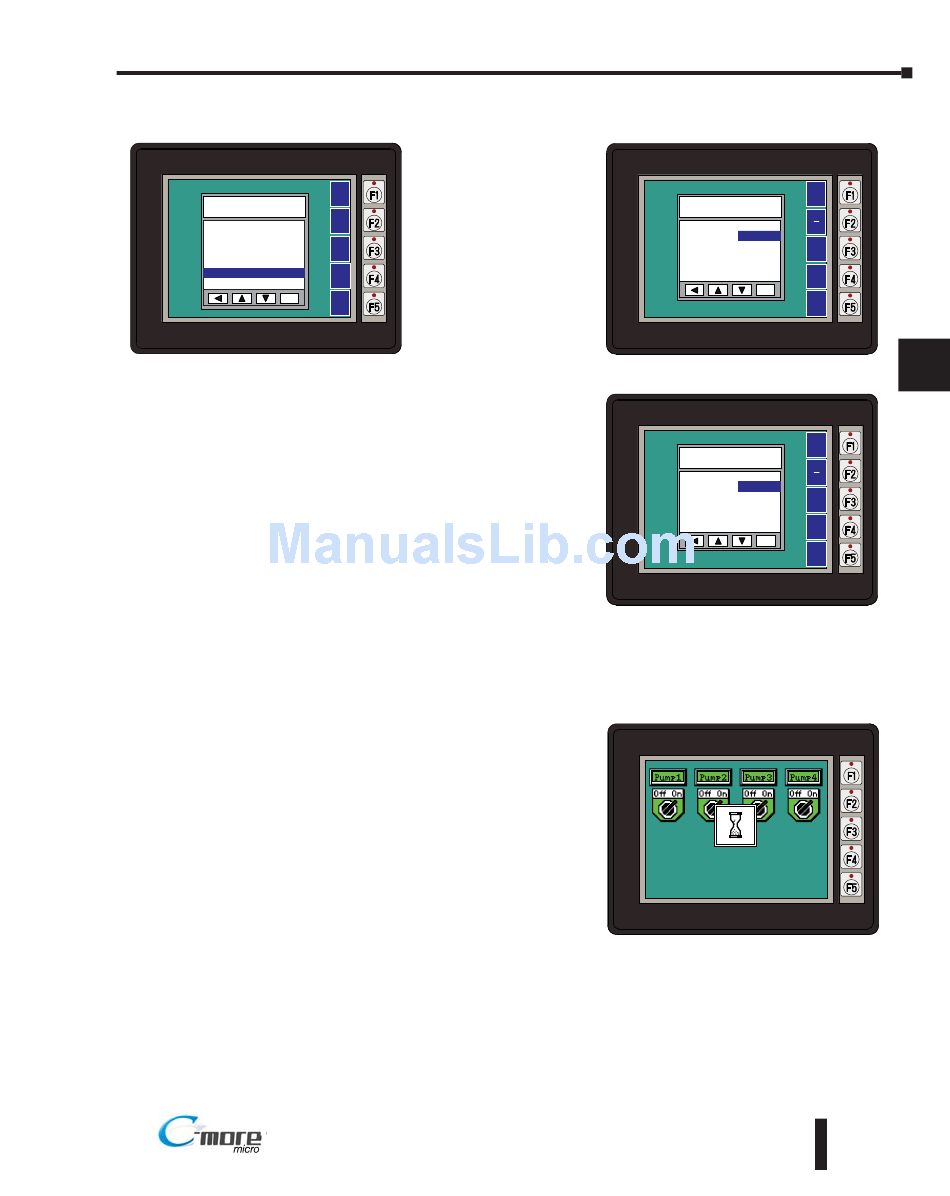

Explanation: An
hourglass icon is
displayed on the
panel anytime a new
screen is being
loaded until
communication is
established with the
new screen. If
communication is
established before the
delay has timed out,
no hourglass will be
displayed. The
hourglass icon can
also be disabled from
being displayed.
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Chapter 5: System Setup Screens

HOURGLASS

Delay/Disable ICON
350ms
ENT
HOURGLASS
Delay/Disable ICON
Disable
ENT
Hourglass Icon
BAK
UP
DWN
APL
5
BAK
UP
DWN
APL
5–11
