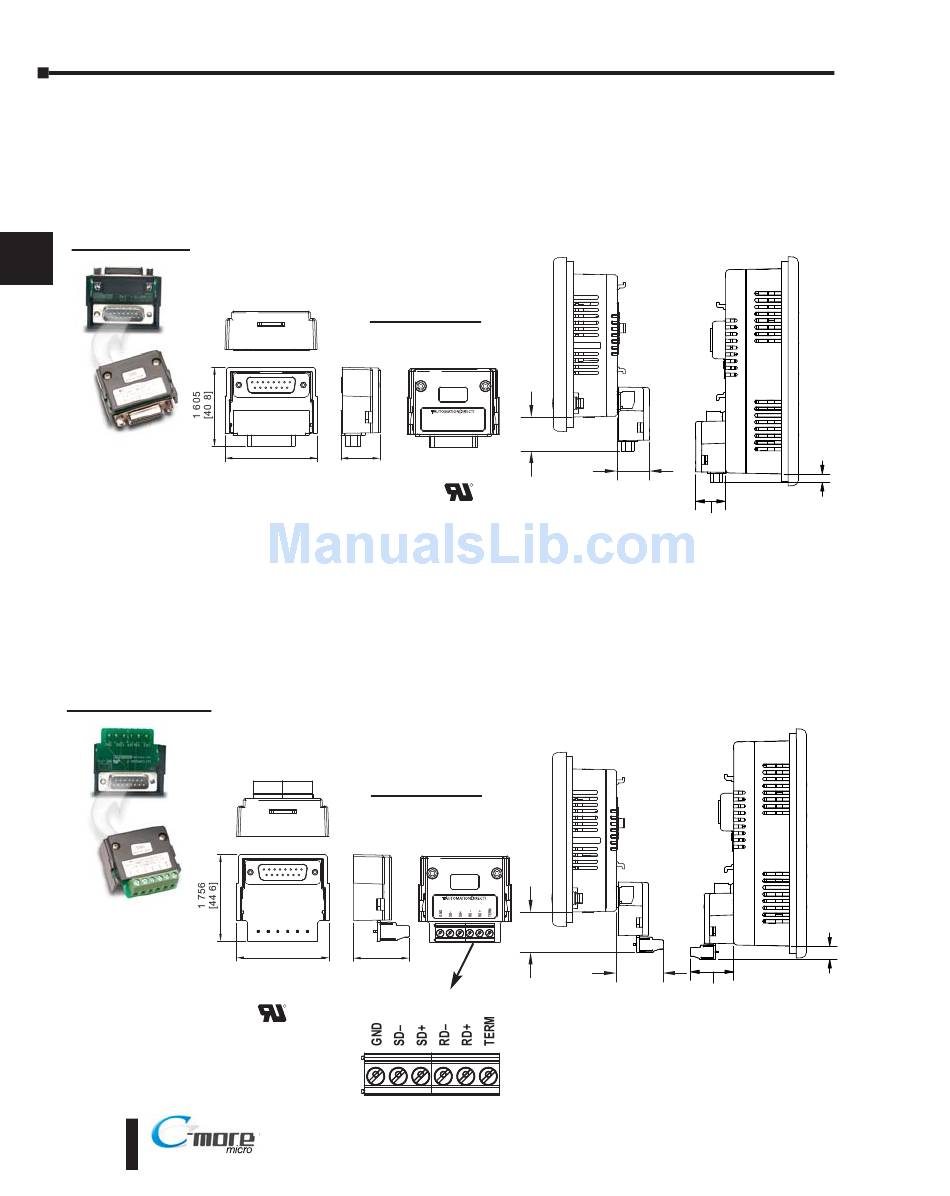

D-SUB 15-pin 90-degree Communication Port Adapter

The EA-ADPTR-4 adapter plugs into the 15-pin serial port on the rear of the C-more Micro
panel to allow a PLC communication cable to be plugged in at a 90 degree angle to reduce
panel depth requirements. 15-pin straight through pin-out. UL Recognized.
EA-ADPTR-4
3

D-SUB 15-pin to Terminal Block Adapter

The EA-COMCON-3 adapter plugs into the 15-pin serial port on the rear of the C-more
Micro panel to allow wire terminal connections for an RS-422/RS-485/DH-485 PLC
communication cable. UL Recognized.
EA-COMCON-3
3–12
Dimensions
Units: Inches [mm]
KOYO ELECTRON CS NDUSTR ES CO L D
IOIOI – PLC
1.873
0.793
[47.6] [20.2]
Dimensions
Units: Inches [mm]
1.873 1.126
[47.6] [28.6]
Terminals
® EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Da e code
Count y of Or g n
EA-ADPTR-4
0.856
[21.7]
Mounted on
EA-T4CL
Da e code
Count y of O ig n
KOYO ELECTRON CS NDUSTR ES CO TD
EA COMCON-3
1.00
[25.4]
Mounted on
EA-T4CL
0.815
[20.7]
Mounted on
.79"
[20.2mm]
EA-T6CL
1.15
[29.2]
1.13"
[28.6mm]
Mounted on
EA-T6CL
.23"
[5.8mm]
.43"
[11.0mm]
