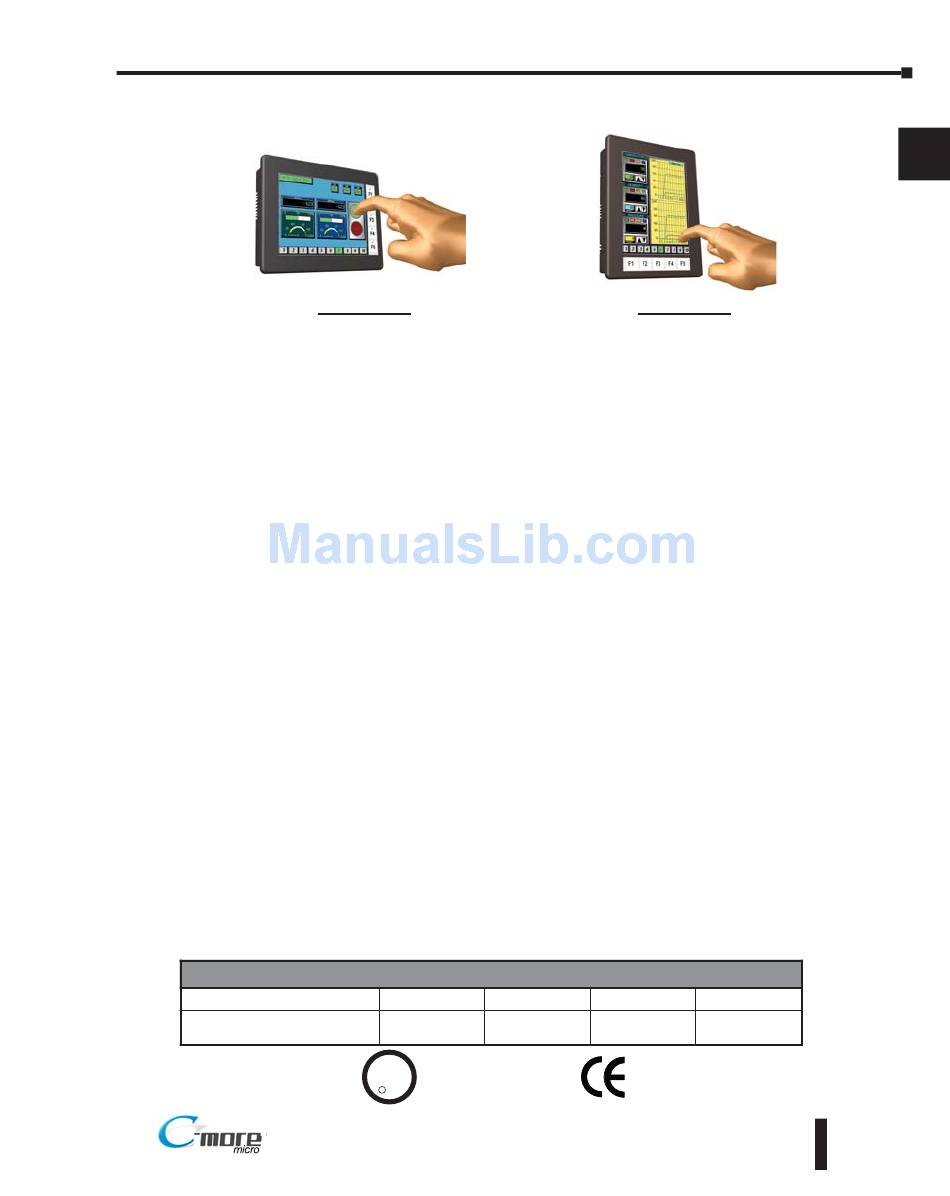

Product Overview - EA1-T6CL

shown in Landscape (Horizontal) mode
The C-more 6" Color Micro-Graphic panel has a 5.7-inch TFT LCD color 320 x 240 dot
display with an LED backlight. It features five user-defined function keys, each key with a
user-defined red LED indicator. The panel displays up to 40 lines by 80 characters of static
text and up to 40 lines by 40 characters of dynamic text with embedded variables and phrases
mixed with graphics at landscape orientation. Portrait orientation can display 60 characters
and 53 lines of static text and 40 lines by 40 characters of dynamic text. EA1-T6CL is rated
UL for use on a flat surface of Type 1, 4X enclosure (for indoor use only). The C-more 6"
Micro-Graphic panels are powered from a 12-24 VDC power supply during operation, or can
be powered in low power mode through the USB port from a PC during programming.
Other features include:
• 3276 KB memory
• USB Type B programming port.
• Built in 15-pin serial communications port (RS-232/422/485)
• 2 optional keypad bezels, 20-button landscape and 21-button portrait mount
• Optional replaceable clear screen overlay
• Built in Alarm Control setup that activates beep, backlight flash, customized alarm banner, and red
LED blinking
• Up to 999 screens, limited only by memory usage
• 0 to 50 °C (32 to 122 °F) operating temperature range
• UL, cUL & CE agency approvals (see below for details)
• 2-year warranty from date of purchase

Agency Approvals

Name
C-more Micro-Graphic Panels
& Accessories
®
EA1-T6CL
UL/CUL/CE Certification Numbers
UL/CUL
E157382
U L
C
US
R
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Chapter 1: Getting Started
EA1-T6CL
shown in Portrait (Vertical) mode
UL508 CE
E157382 EN61131-2
ISO-9000
Yes
1–5
