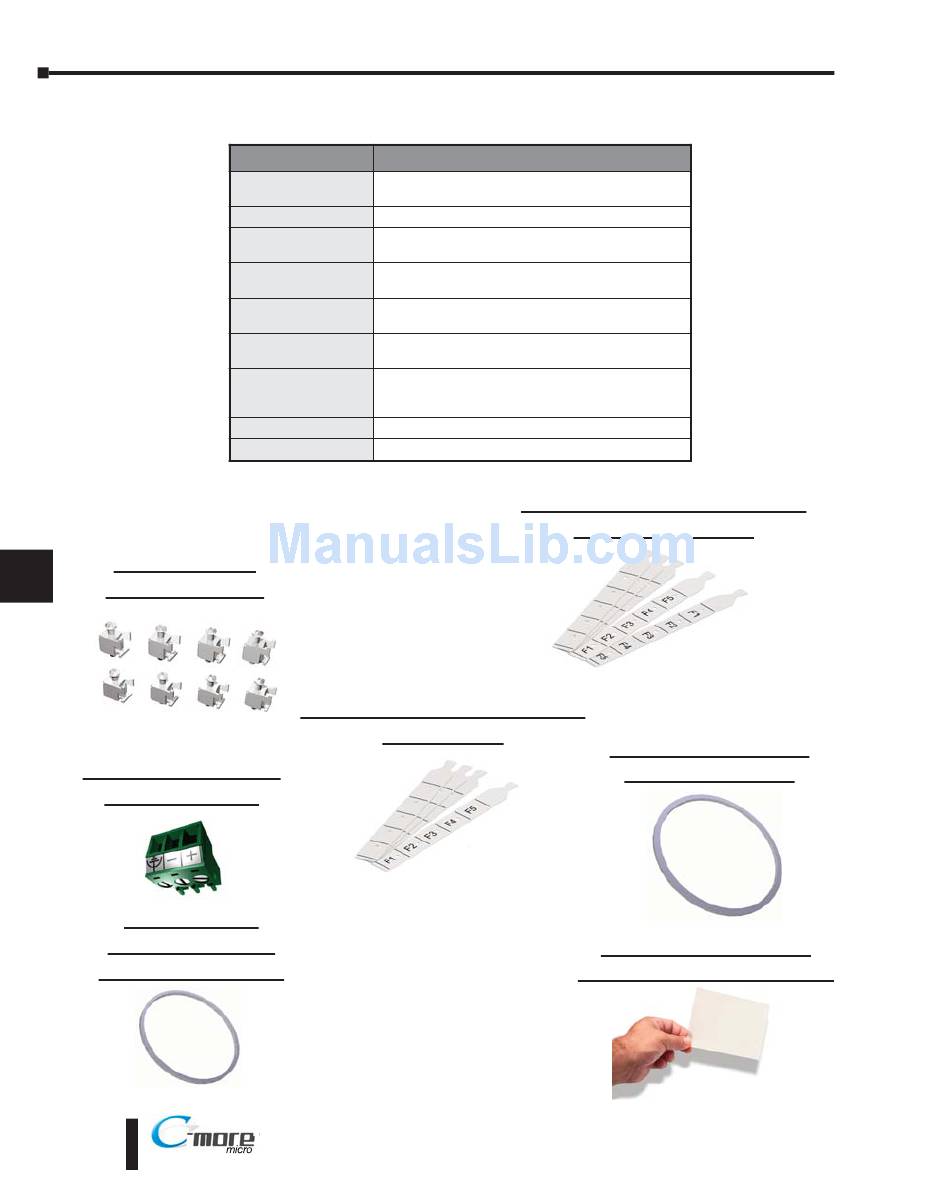

Chapter 9: Replacement Parts

Replacement Parts Overview

Replacement Parts

Mounting Clips
9
EA-MG-BZ2-BRK
(pk of 8)
DC Power Connector
EA-MG-DC-CON
Panel Gaskets
EA-MG4-GSK and
EA-MG6-S6ML-GSK
9–2
Part Number
Replacement mounting clip for C-more 4" and 6"
EA-MG-BZ2-BRK
Micro-Graphic panel and keypad bezels (pk of 8)
EA-MG-DC-CON
Replacement adapter DC power connector (pk of 5)
Replacement mounting gasket for C-more 4"
EA-MG4-GSK
Micro-Graphic panels
Replacement mounting gasket for C-more 6"
EA-MG6-S6ML-GSK
Micro-Graphic panels
Replacement mounting gasket for C-more 6"
EA-MG6-BZ2-GSK
Micro-Graphic keypad bezels EA-MG6-BZ2(P)
Replacement function key label insert for C-more 4"
EA-MG4-FKL
Micro-Graphic panels (pk of 4; 3 blank, 1 F1-F5)
Replacement function key label insert for C-more 6"
EA-MG-S6ML-FKL
Micro-Graphic panels (pk of 5; 3 blank, 1 F1-F5 for
landscape, 1 F1-F5 for portrait)
EA-4-COV2
4" Clear Screen Overlay (pk of 3)
EA-6-COV2
6" Clear Screen Overlay (pk of 3)
4" Function Keys Label Inserts
EA-MG4-FKL
(pk of 5)
(pk of 4; 3 blank,
1 F1-F5)
®
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Description
6" Function Keys Label Inserts
EA-MG6-S6ML-FKL
(pk of 5; 3 blank,
1 F1-F5 for landscape,
1 F1-F5 for portrait)
Keypad Bezel Gasket
EA-MG6-BZ2-GSK
Clear Screen Overlays
EA-4-COV2 and EA-6-COV2
(pk of 3)
