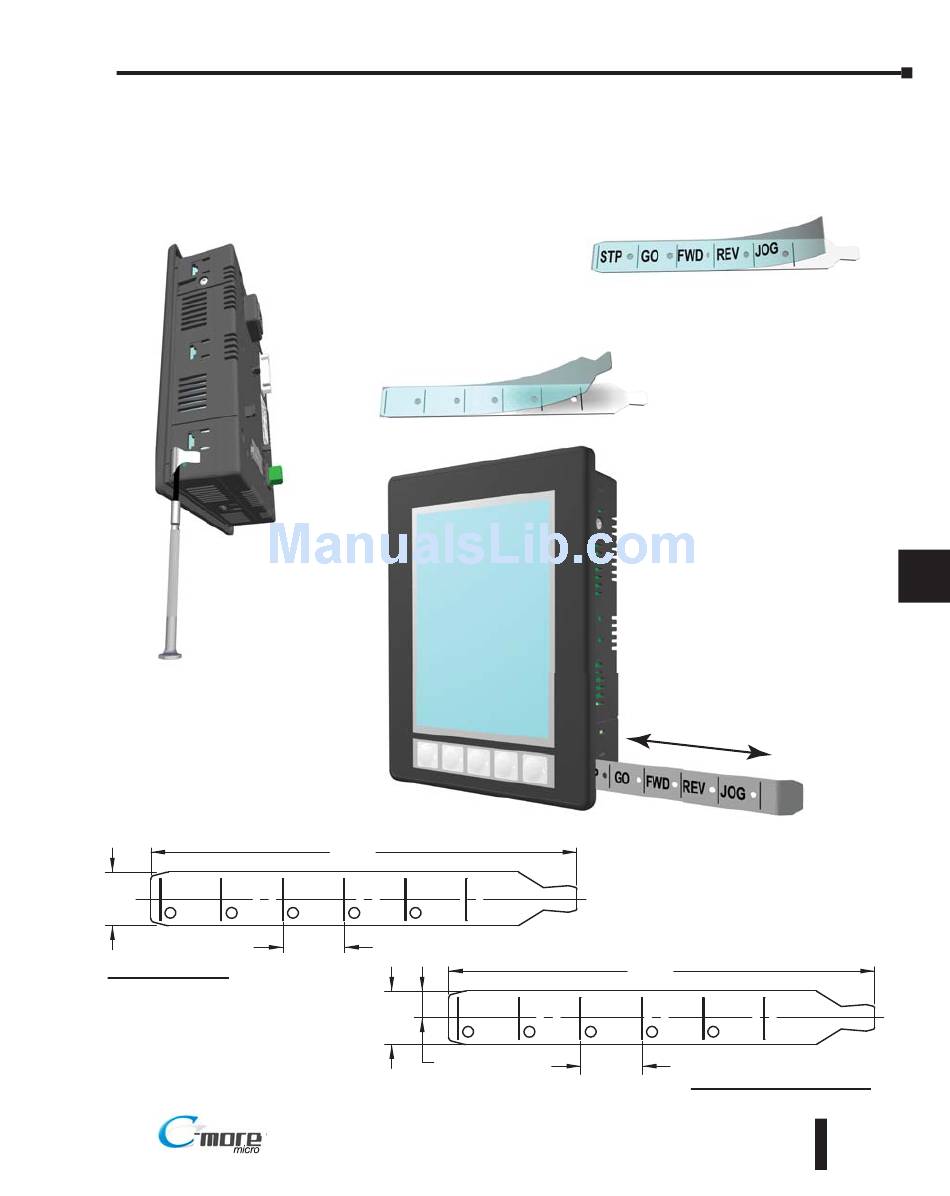

Customizing the Function Keys Insert Label

Step 1 - Remove existing
function key label insert
using a small tool such as
jeweler's screw driver.
0.508
[12.9]
EA-MG4-FKL
®
Step 2 - Remove the
protective film from the
blank key label insert.
4.20
[106.7]
0.650
Units: inches [mm]
[16.5]
0.563
[14.3]
0.282
[7.15]
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Chapter 9: Replacement Parts
Step 3 - If desired, print and
apply self-adhesive labels to
the blank insert.
Step 4 - Install the new insert
into the slot in the side of the
panel and lock tab into place.
4.803
[122.0]
0.709
Units: inches [mm]
[18.0]
EA-MG6-S6ML-FKL
Typical
9
9–3
