Chapter 1: Getting Started

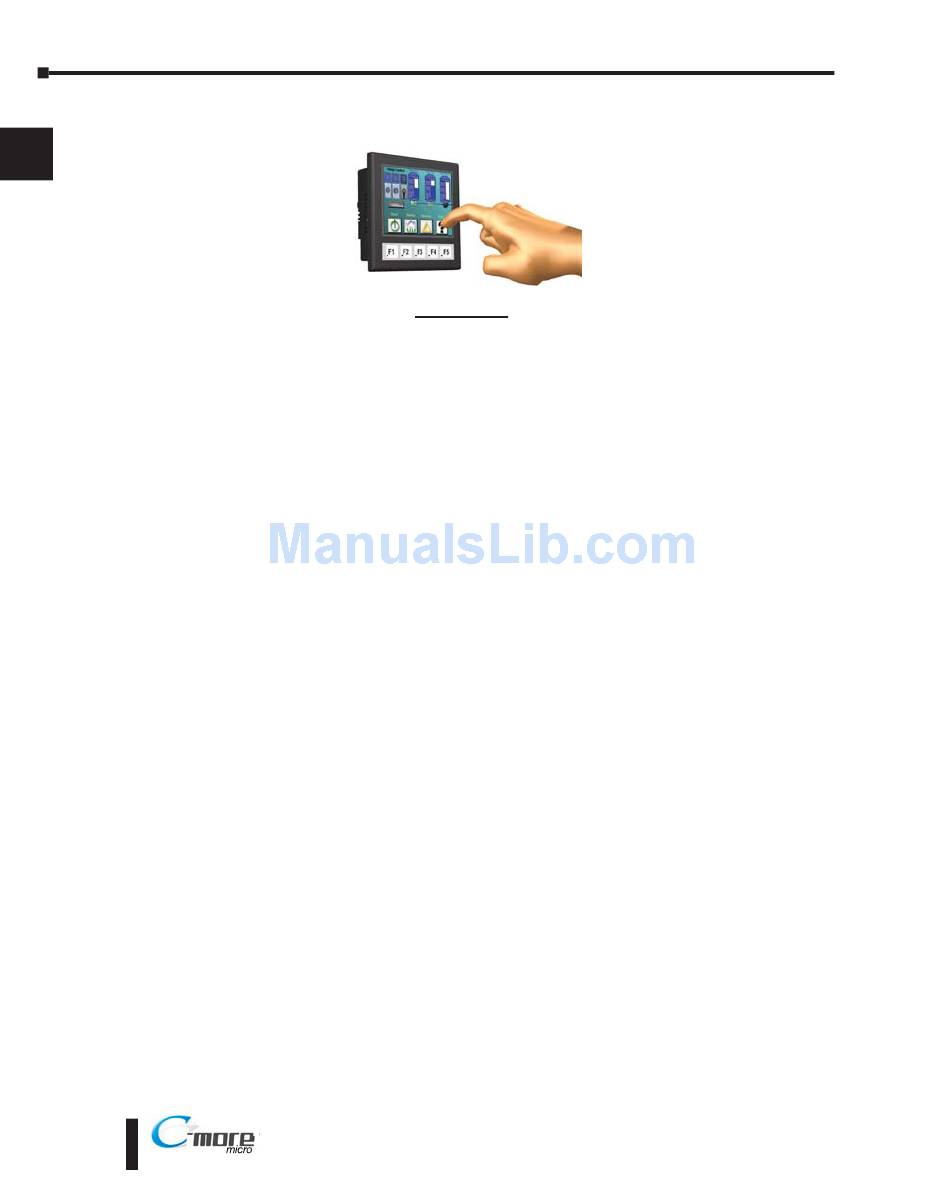

Product Overview - EA1-T4CL
1
The C-more 4" Color Micro-Graphic panel has a 4.1-inch TFT LCD color 320 x 240 dot
display with an LED backlight. It features five user-defined function keys, each key with a
user-defined red LED indicator. The panel displays up to 40 lines by 80 characters of static
text and up to 30 lines by 40 characters of dynamic text with embedded variables and phrases
mixed with graphics at landscape orientation. Portrait orientation can display 60 characters
and 53 lines of static text and 40 lines by 40 characters of dynamic text. EA1-T4CL is rated
UL for use on a flat surface of Type 4X enclosure (for indoor use only). The C-more 4"
Micro-Graphic panels are powered from a 12-24 VDC power supply during operation, or can
be powered in low power mode through the USB port from a PC during programming.
Other features include:
• 3276 KB memory
• USB Type B programming port.
• Built in 15-pin serial communications port (RS-232/422/485)
• Optional replaceable clear screen overlay
• Built in Alarm Control setup that activates beep, backlight flash, customized alarm banner,
and red LED blinking
• Up to 999 screens, limited only by memory usage
• 0 to 50 °C (32 to 122 °F) operating temperature range
• UL, cUL & CE agency approvals (see next page for details)
• 2-year warranty from date of purchase
1–4
EA1-T4CL
®
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
