Chapter 8: Troubleshooting

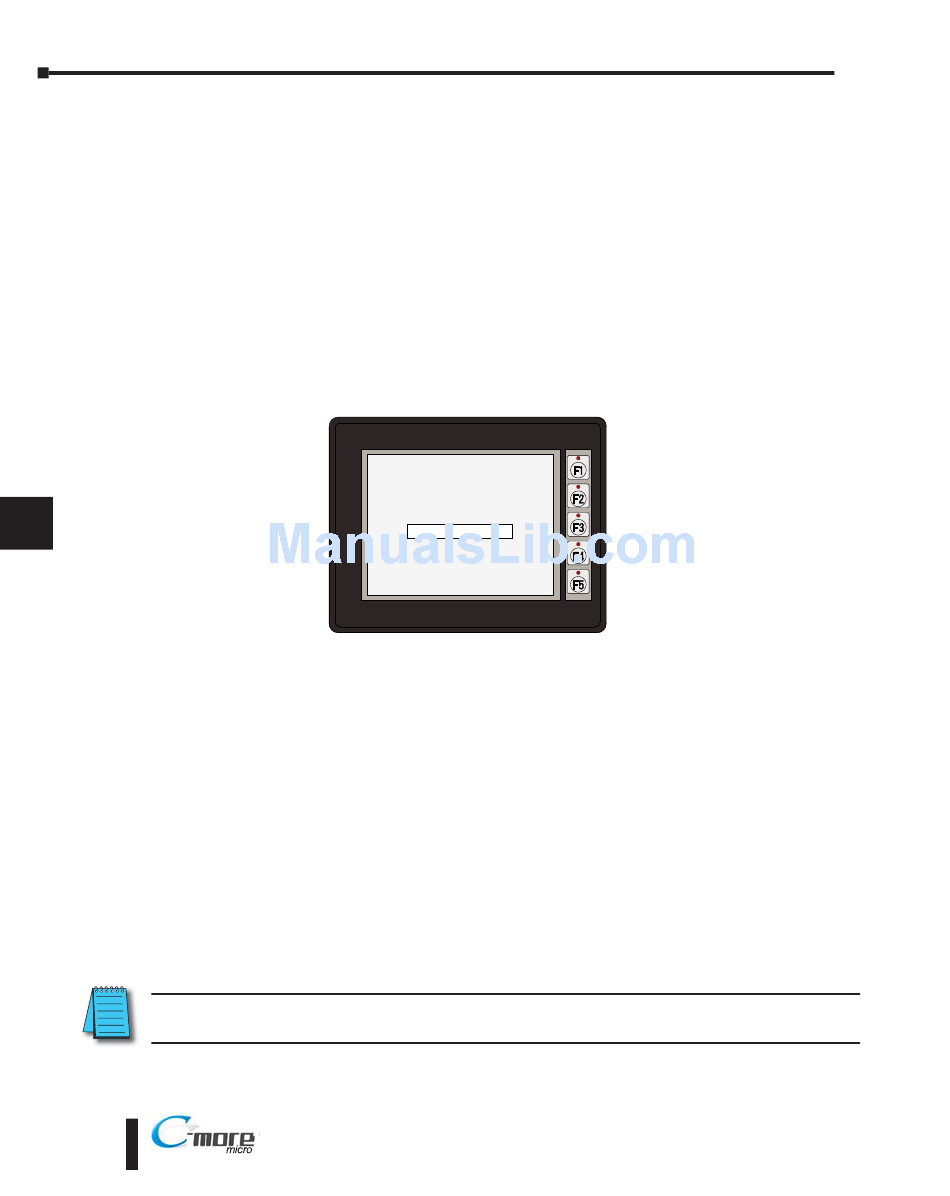

Lost Firmware – 'Update Mode' Screen Displayed
If the C-more Micro-Graphic panel's firmware becomes corrupted or for some reason is lost
from the panel's memory, the panel will display the Update Mode screen as shown below. This
can happen if communication between the PC and the panel is interupted during a firmware
update. To resolve the problem, try the following steps in the order shown:
1.) Cycle power to the panel.
2.) If the problem persists, update the firmware to the panel using the Update Firmware utility
under the Panel pull down menu in the EA-MG-PGMSW Programming Software.
3.) If the problem persists, depress function keys F1 and F5 while cycling power to the panel.
The panel should come up in the Update Mode screen as shown below. Perform Step 2
again.
4.) If there is still a problem, call Tech Support @ 770-844-4200 in the U.S.A.
8
Updating Firmware
The panel firmware version must match both the programming software version and the version
that the program was saved as. For example, if a version needs to be updated to take advantage
of new functionality or product line additions follow these steps:
1.) Create a backup copy of the project on the PC. From the C-more Micro-Graphic
programming software, read the project from the panel and save to a desired location.
2.) Update the programming software on the PC.
3.) Cycle power to the panel.
4.) Update the firmware to the panel using the Update Firmware utility under the Panel pull
down menu in the EA-MG-PGMSW Programming Software.
5.) Open the project in the updated programming software. Save the project. Transfer the
project to the panel.
NOTE: Software and Firmware Version 3.0 or later is required with model EA1-T4CL. Version 2.5 or later is
required with model EA1-T6CL. Available for free download at www.automationdirect.com.
8–4
Update Mode
Data Transfer
®
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
