TEST MENU

1 Serial Port Loop Back

2 PLC Enquiry Test

3 Buzzer Test

4 Touch Panel Test

5 Display Test
®

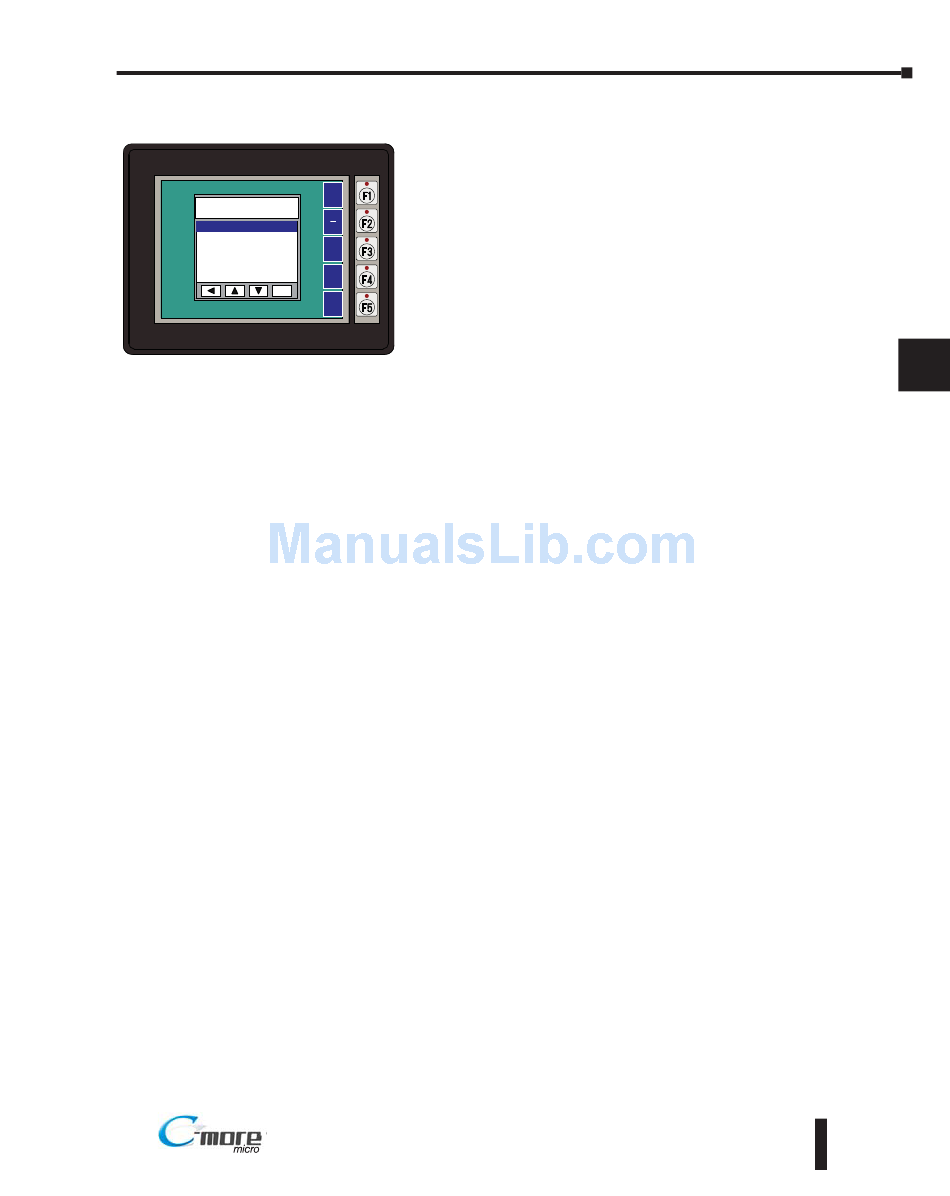

Use the UP [F3] and DWN [F4] function keys to scroll
through the list of tests. The BAK [F1] function key will
BAK
return you to the previous screen. Use the ENT [F5] function
key to make your selection once you have the test
highlighted.
UP
Serial Port - Loop Back Test – page 5-14
DWN
ENT
PLC Enquiry Test – page 5-15
ENT
Buzzer Test – page 5-15
Touch Panel Test – page 5-16
