Chapter 3: Accessories
20-Button Horizontal (Landscape) Keypad Bezel for 6-inch
Panels (cont'd)

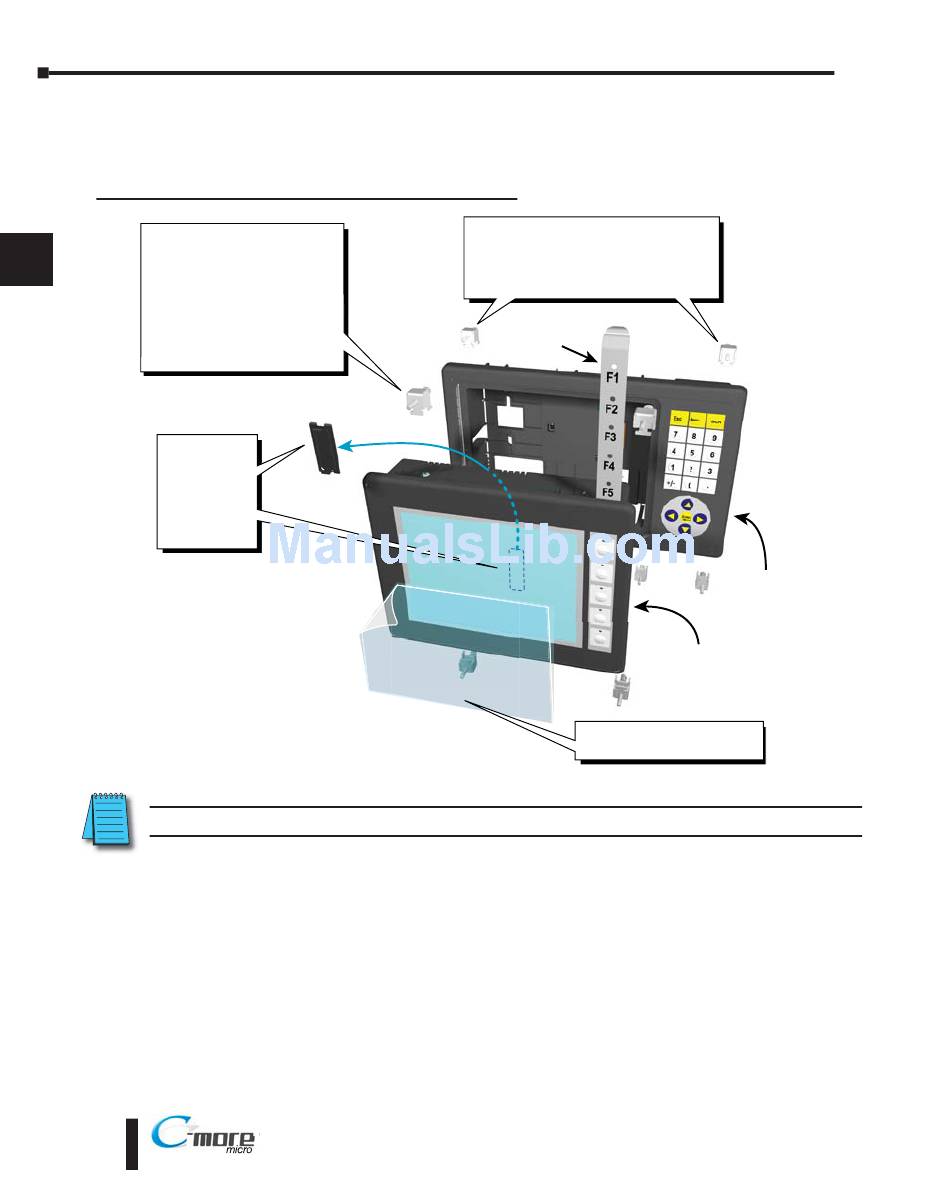

Panel and 20-Button Keypad Bezel Assembly
2. Use the (4) Panel Mounting
3
Clips, EA MG BZ2 BRK,
that are supplied with the
panel, to secure panel to
keypad bezel and compress
the gasket between the
panel and the keypad bezel.
Tighten screws to a torque
of 21 28 oz in [0.15 0.2 Nm].
1. Remove
Expansion
Connector
Protective
Cover from
rear of
panel.
NOTE: Mounting clips for the panel and keypad bezels are included with the respective product.
3–8
® EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
3. Use (8) Bezel Mounting Clips,
EA MG BZ2 BRK, to secure keypad
bezel through enclosure cutout.
Tighten screws to a torque of
21 28 oz in [0.15 0.2 Nm].
Function
Key Label
Insert
4. Peel Protective Film
from front of panel.
20 Button
Keypad Bezel
EA MG6 BZ2
C-more Color 6 Inch
Micro-Graphic Panel
