21-Button Vertical (Portrait) Keypad Bezel for 6-inch Panels
(cont'd)

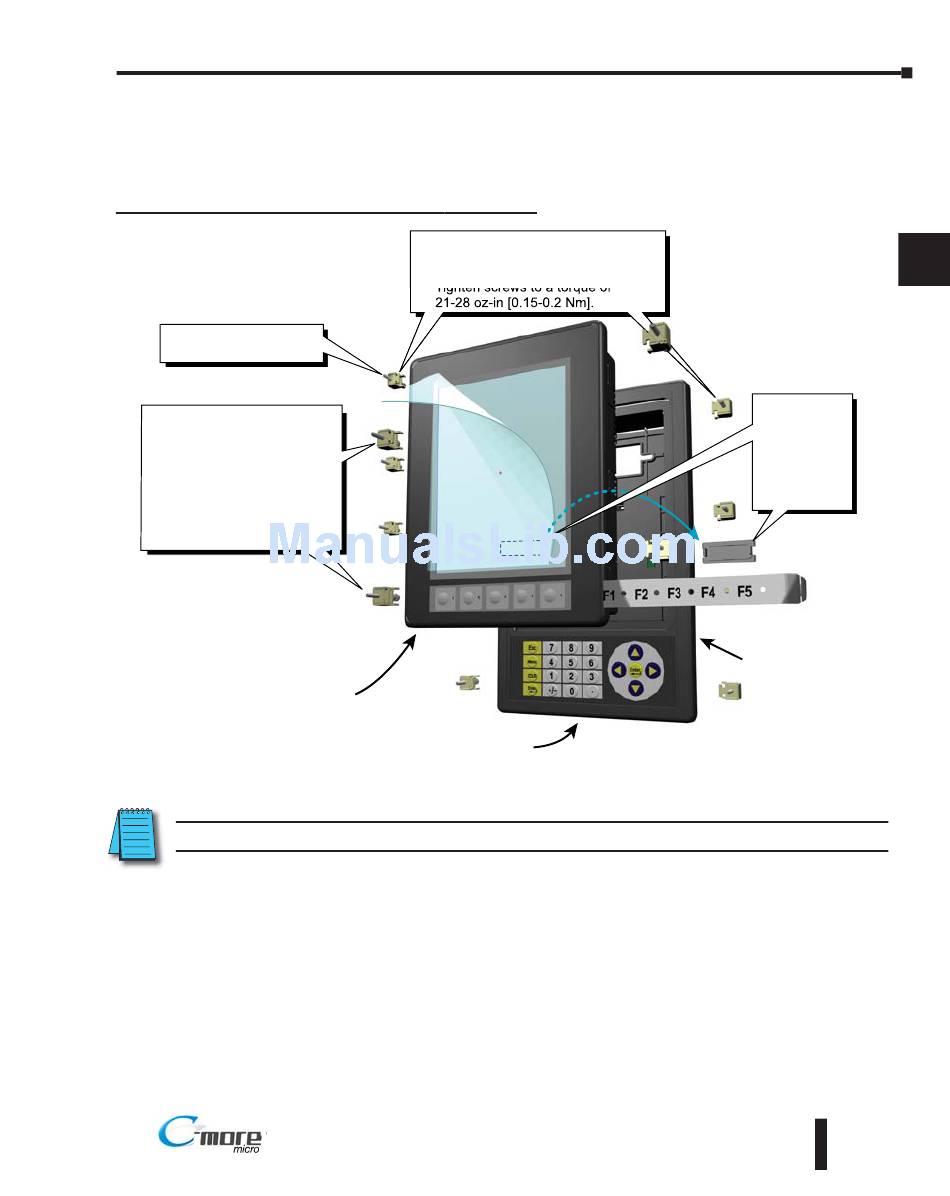

Panel and 21-Button Keypad Bezel Assembly
4. Peel Protective Film
from front of panel.
2. Use the (4) Panel Mounting
Clips, EA MG BZ2 BRK,
that are supplied with the
panel, to secure panel to
keypad bezel and compress
the gasket between the
panel and the keypad bezel.
Tighten screws to a torque
of 21 28 oz in [0.15 0.2 Nm].
C-more 6-Inch
Micro-Graphic
Panel
NOTE: Mounting clips for the panel and keypad bezels are included with the respective product.
®
3. Use (8) Bezel Mounting Clips,
EA MG BZ2 BRK, to secure keypad
bezel through enclosure cutout.
Tighten screws to a torque of
21 Button
Keypad Bezel
EA MG6 BZ2
EA1-TCL-M Hardware User Manual, 2nd Ed., 10/10
Chapter 3: Accessories
1. Remove
Expansion
Connector
Protective
Cover from
rear of
panel.
Function
Key Label
Insert
