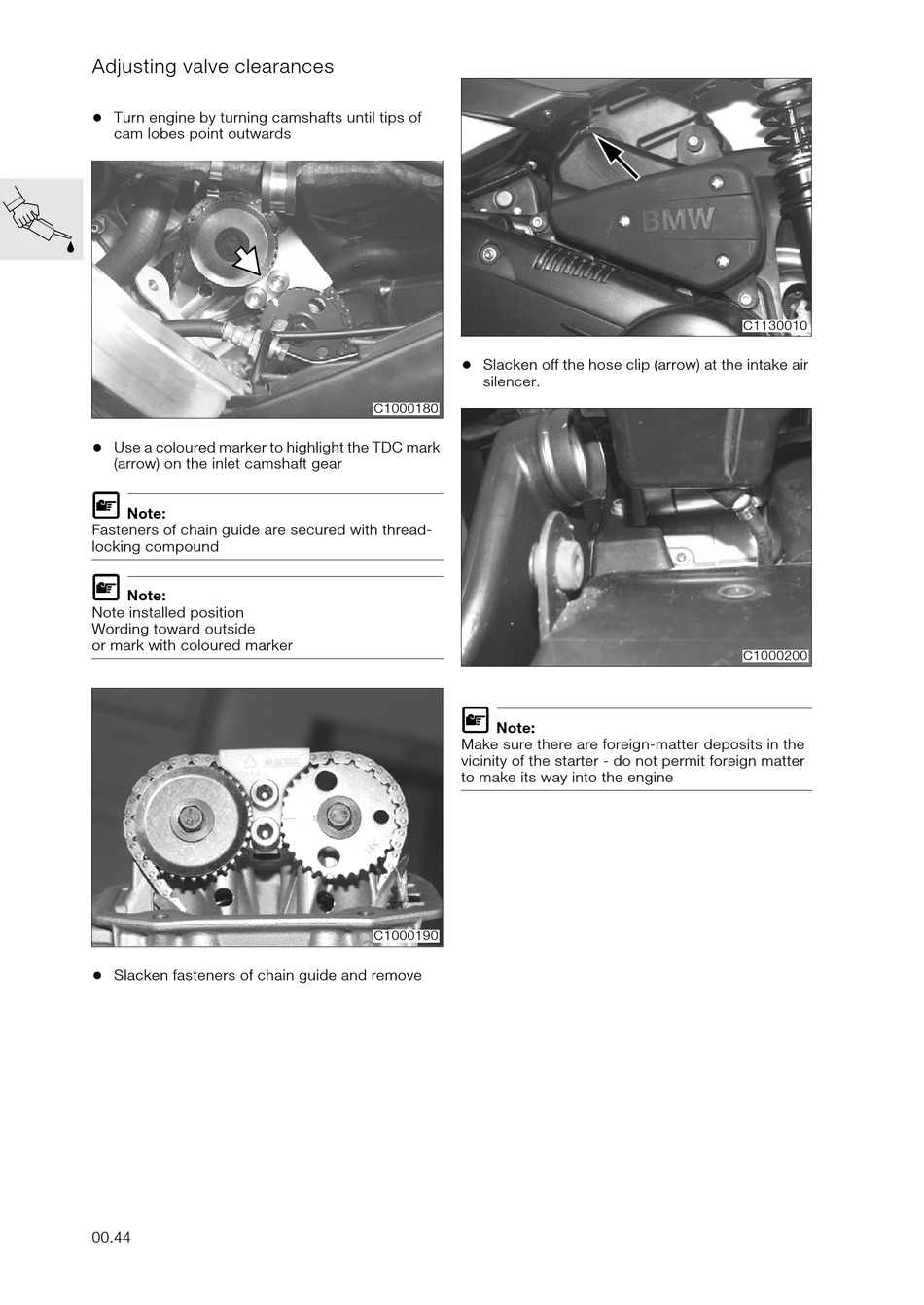

Adjusting valve clearances

Turn engine by turning camshafts until tips of
cam lobes point outwards
Use a coloured marker to highlight the TDC mark
(arrow) on the inlet camshaft gear
L
Note:
Fasteners of chain guide are secured with thread-
locking compound
L
Note:
Note installed position
Wording toward outside
or mark with coloured marker
Slacken fasteners of chain guide and remove
00.44
Slacken off the hose clip (arrow) at the intake air
silencer.
C1000180
L
Note:
Make sure there are foreign-matter deposits in the
vicinity of the starter - do not permit foreign matter
to make its way into the engine
C1000190
C1130010
C1000200
