Checking valve clearances

(Inspections I, II and III)

Moving drive swinging arm clear

•
Secure front wheel
•

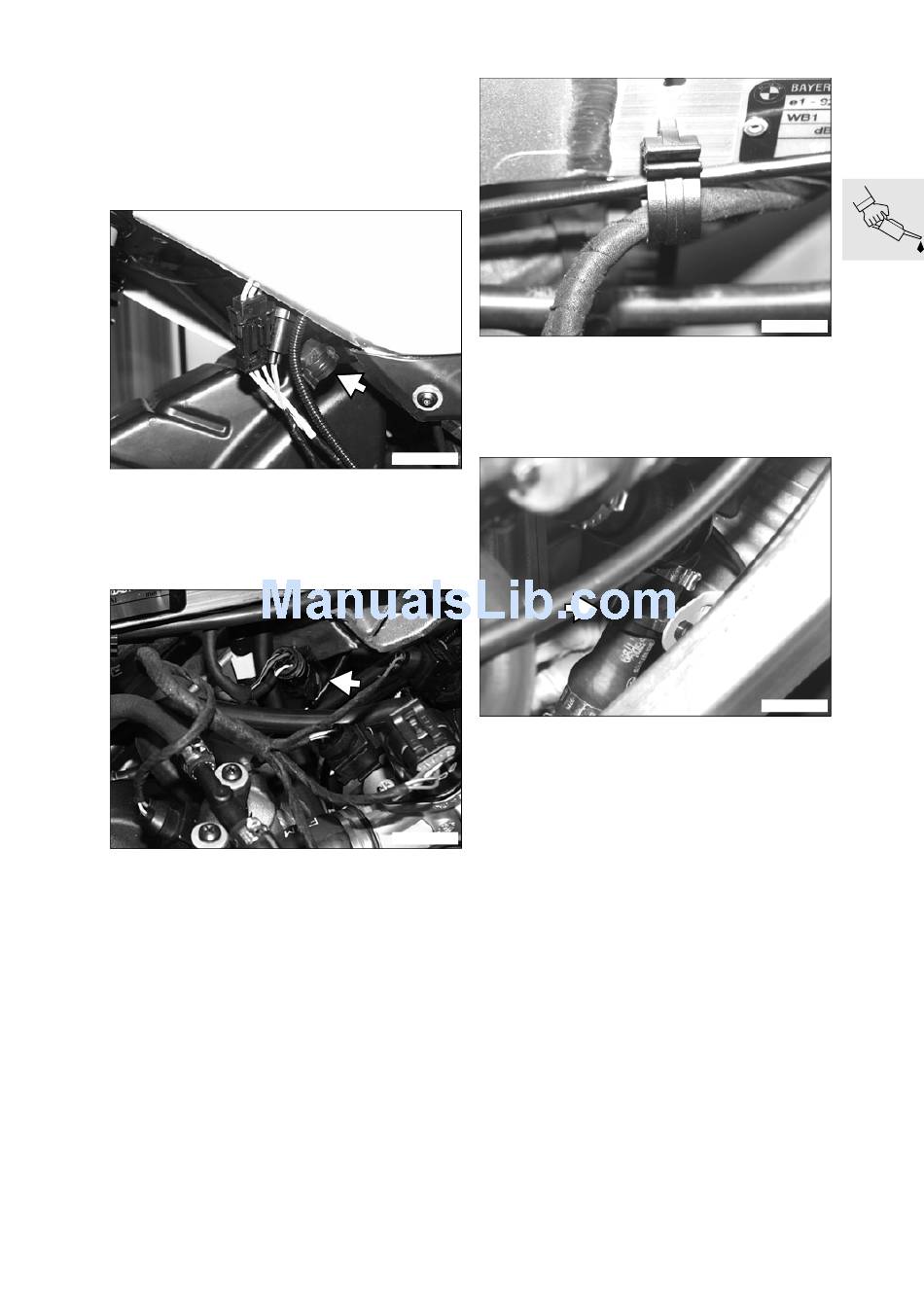

Remove lines from clip (arrow):
•
Alternator
•
Ignition trigger
•
Open the seat
•
Open clip and disconnect plug of oxygen sensor
(arrow)
•
Remove lines from clips:
•
Injector
•
Air temperature sensor
•
Idle actuator
•
Coolant temperature sensor to cylinder head
C1000090
•
Release coolant hose from clip at injector and
holder (arrow) at variator cover
C1000100
C1000110
C1000120
00.41
