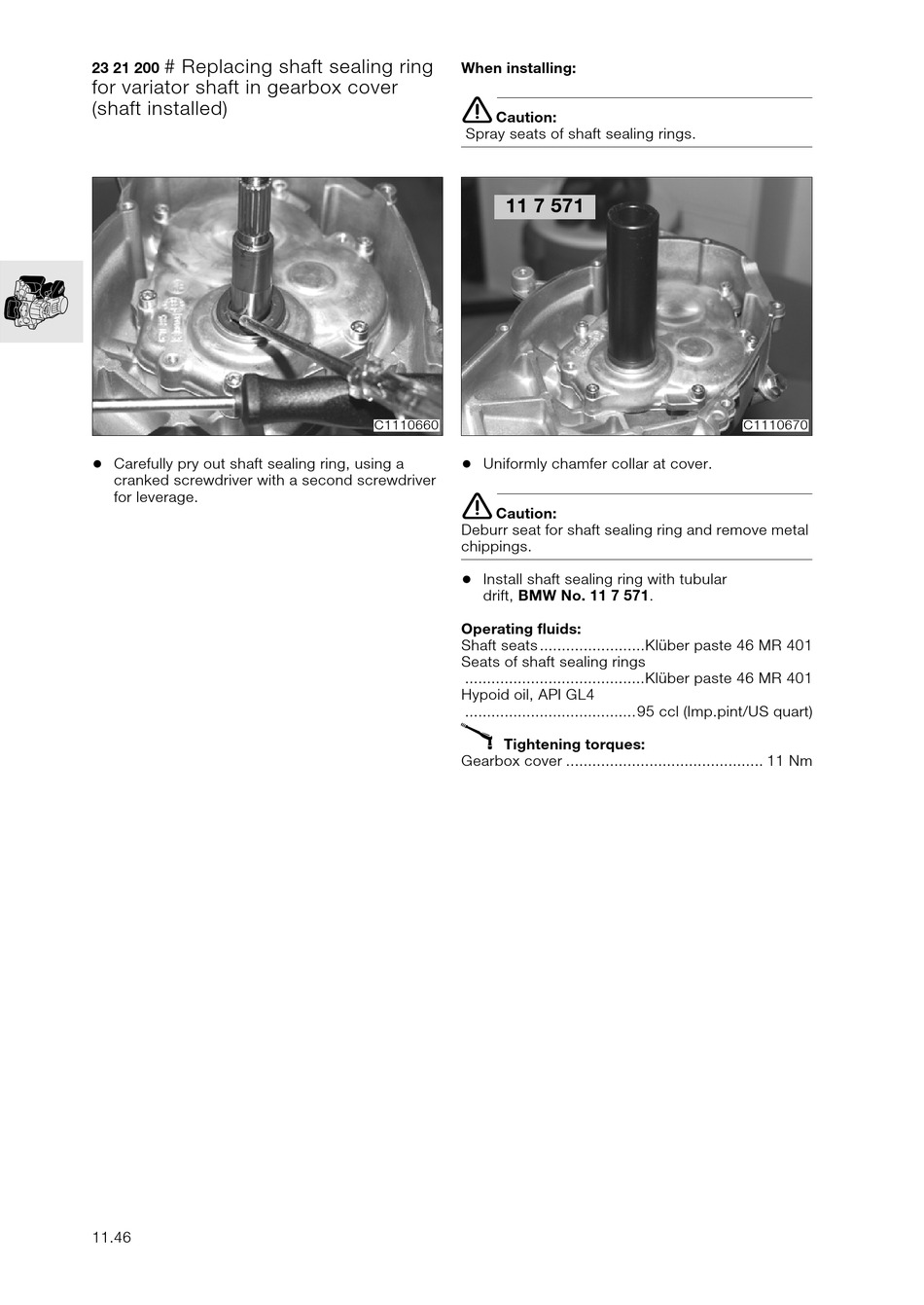

# Replacing shaft sealing ring
23 21 200
for variator shaft in gearbox cover
(shaft installed)
•
Carefully pry out shaft sealing ring, using a
cranked screwdriver with a second screwdriver
for leverage.
11.46
When installing:
e
Caution:
Spray seats of shaft sealing rings.
11 7 571
C1110660
•
Uniformly chamfer collar at cover.
e
Caution:
Deburr seat for shaft sealing ring and remove metal
chippings.
•
Install shaft sealing ring with tubular
drift, BMW No. 11 7 571.
Operating fluids:
Shaft seats ........................Klüber paste 46 MR 401
Seats of shaft sealing rings
.........................................Klüber paste 46 MR 401
Hypoid oil, API GL4
.......................................95 ccl (Imp.pint/US quart)
X
Tightening torques:
Gearbox cover ............................................. 11 Nm
C1110670
