Design and function
MIG/MAG welding
Application example
Aluminium is to be welded.
• Material = AlMg,
• Gas = Ar 100%,
• Wire diameter = 1.2 mm
The correct wire speed is not known and is to be determined.
• Select the appropriate JOB (see "JOB list" sticker)
• Switch to the material thickness display
• Set the material thickness as appropriate (e.g. 5 mm)
• Switch to the wire speed display
The resulting wire speed will be shown (e.g. 8.4 m/min).
5.8.9.2

Operating point setting using material thickness, welding current, wire speed

Given below is a description of the setting work via the wire speed parameters as an example of
operating point setting.
Operating
element
m/min
5.8.9.3

Arc length correction setting

The arc length can be corrected as follows.
Operating
element
5.8.9.4

Accessory components for operating point setting

The operating point can also be set with various accessory components such as
• remote controls
• special torches
• PC software
40

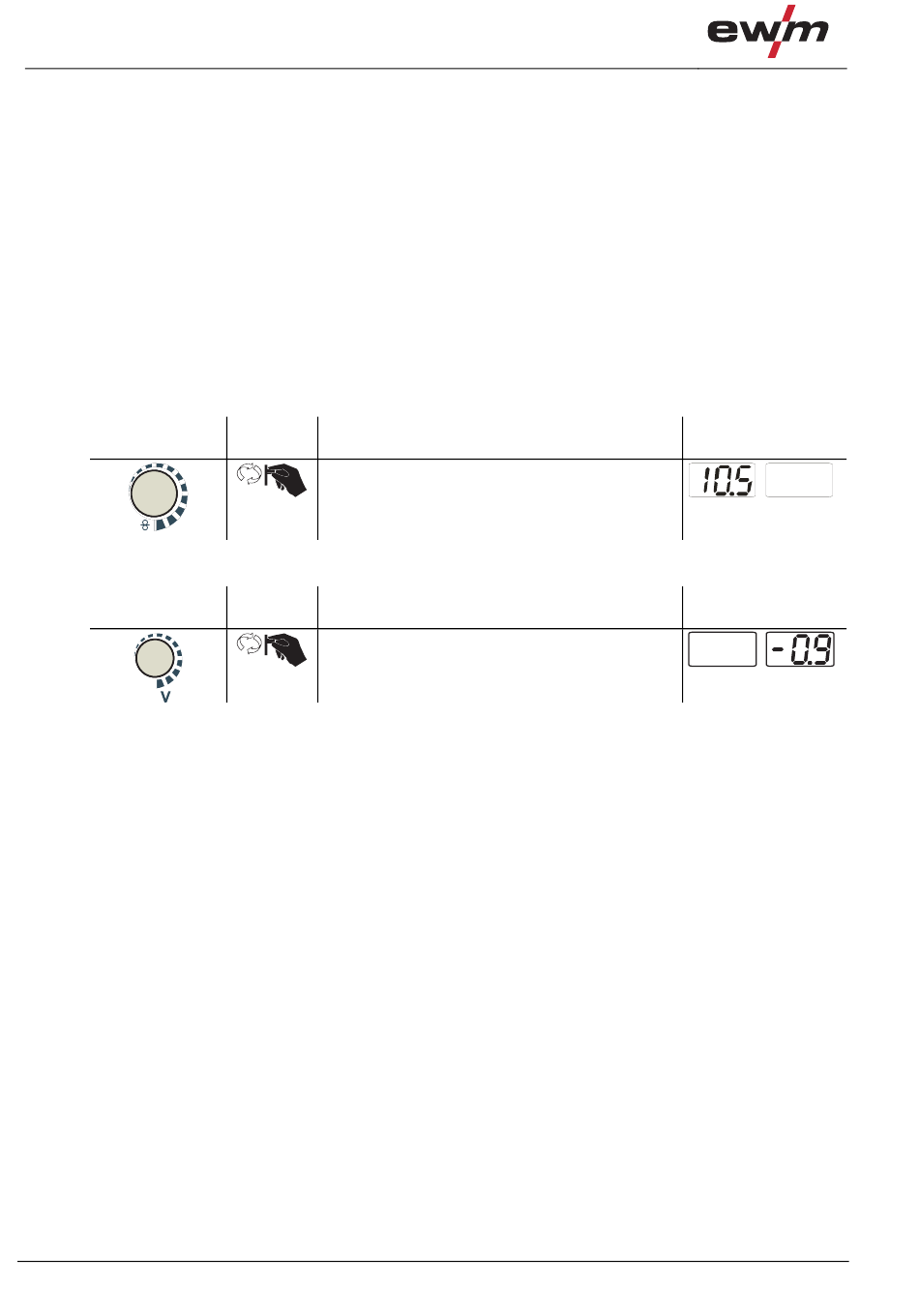

Action Result
Increase or reduce welding performance via the
wire speed parameter.
Display example: 10.5 m/min
Action Result
"Arc length correction" setting
(Display example: -0.9V,
setting range -9.9 V to +9.9 V)
Display
Display
