Operating point setting using material thickness, welding current, wire speed

Given below is a description of the setting work via the wire speed parameters as an example of
operating point setting.
Operating
element
m/min
5.6.9.3

Arc length correction setting

The arc length can be corrected as follows.
Operating
element
5.6.9.4

Accessory components for operating point setting

The operating point can also be set with various accessory components such as
• remote controls
• special torches
• PC software
• robot and industrial bus interfaces (optional mechanised welding interface required – not possible for
all machines in this series!)
You will find an overview of accessory components in the "Accessories" chapter. See the operating
instructions for the machine in question for a more detailed description of the individual machines and
their functions.
099-005023-EW501
09.08.2010

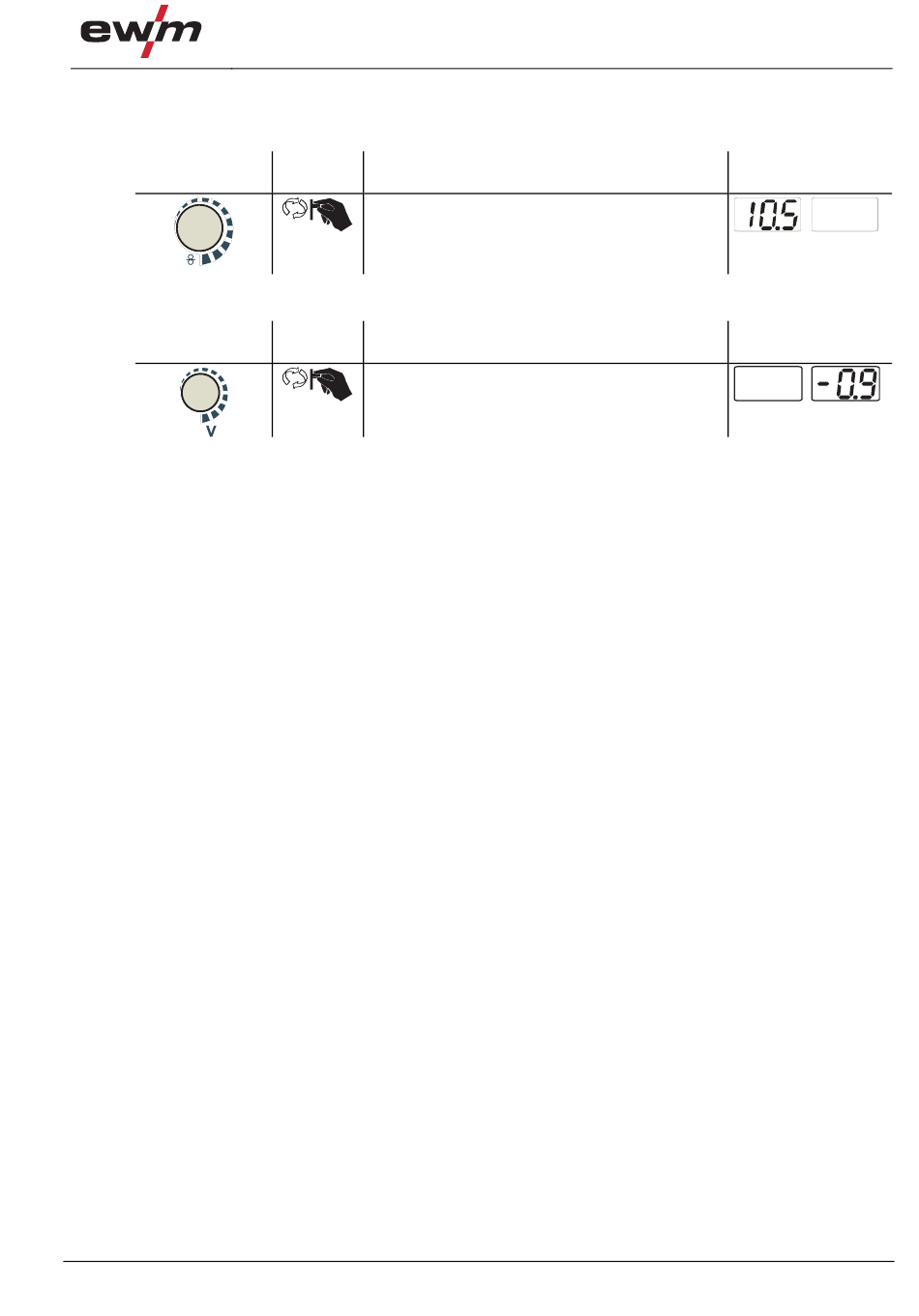

Action Result
Increase or reduce welding performance via the
wire speed parameter.
Display example: 10.5 m/min
Action Result
"Arc length correction" setting
(Display example: -0.9V,
setting range -9.9 V to +9.9 V)
