5.9.5

Inching the wire electrode

Risk of injury due to welding wire escaping in an unpredictable manner!
Welding wire can be conveyed at very high speeds and, if conveyed incorrectly, may
escape in an uncontrolled manner and injure persons!
• Before mains connection, set up the complete wire guide system from the wire spool to the
welding torch!
• Remove the pressure rollers from the wire feed unit if no welding torch is fitted!
• Check wire guide at regular intervals!
• Keep all casing covers closed during operation!
Depending on the design of the machine, the design of the wire feed may be the reverse
of that shown!
Item Symbol Description
1
2
3
4
5
6
7
8
9
099-005234-EW501
16.04.2012
5
6
0
Pressure unit
Clamping unit
Knurled nut
Pressure roller
Wire holding nipple
Guide tube
Drive rollers
"Undetachable" knurled screws
Wire feed nipple with wire stabiliser
Design and function
CAUTION
1
2
7
8

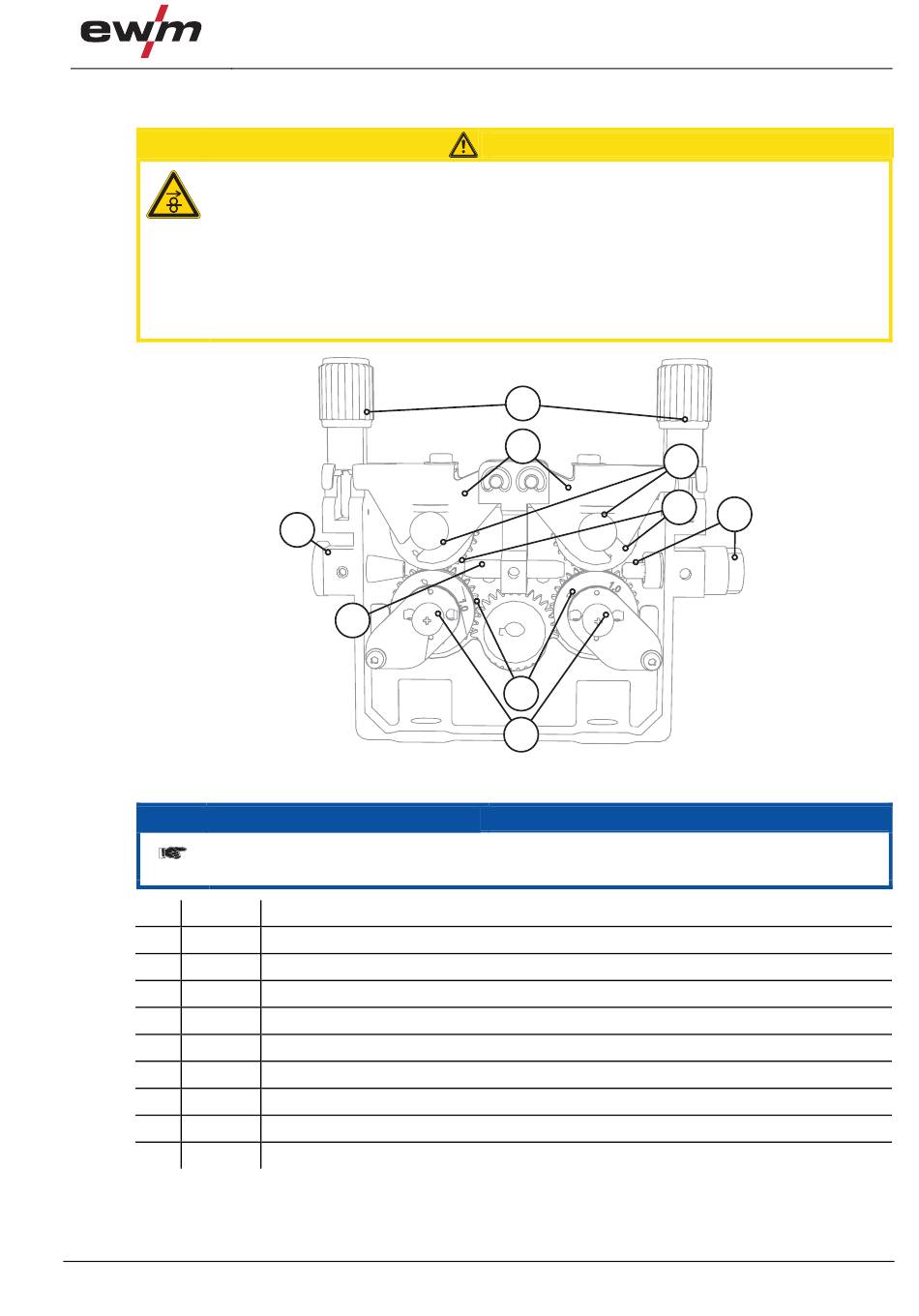

Figure 5-8
NOTE
MIG/MAG welding
3
4
9
